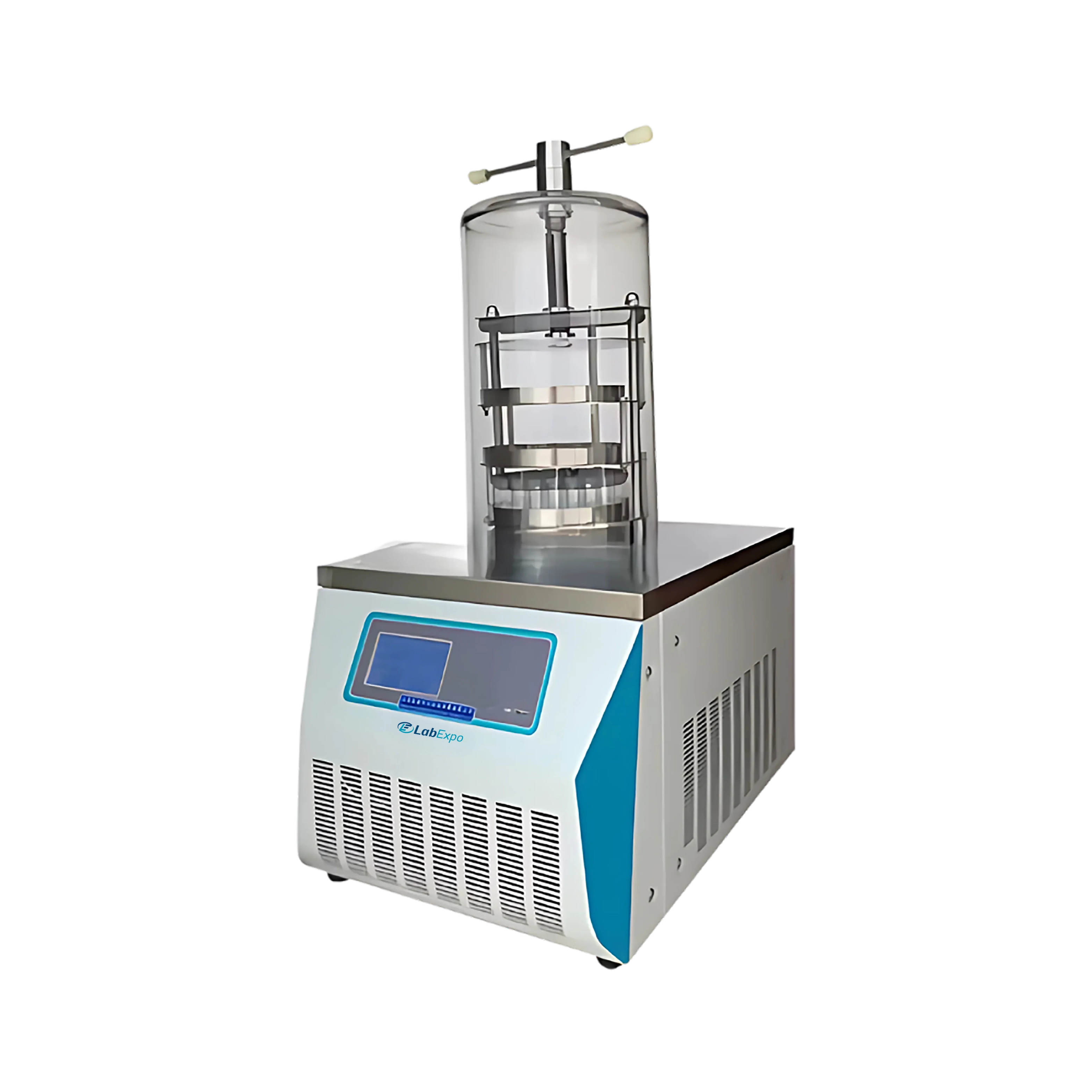

Benchtop Top Press Freeze Dryer 19A-BSF301 is a compact table-top unit with a 3 kg condenser capacity and condenser temperature options of - 80 °C for specimens containing solvents. It provides the feasibility of vial Lyophilization. Precise vacuum control enables faster freeze-drying and reproducible results. Built-in oil mist filtration system and vacuum pump oil return device help in maintenance of vacuum pressure and prevention of oil leakage.
$9,139.00 $ 7616
Specifications
| Condenser temperature | - 80 °C |
| Condenser capacity | 3 kg / 24 h |
| Freeze drying area | 0.1 m² |
| Bulk capacity | 1 L |
| Vial capacity Φ 12 mm | 656 pieces |
| Vial capacity Φ 16 mm | 372 pieces |
| Vial capacity Φ 22 mm | 196 pieces |
| Display | LCD touch screen |
| Shelves | 4 shelves |
| Shelves dimension | Φ 180 mm |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Dimensions | 830 x 680 x ( 400 + 430 ) mm |
| Weight | 84 kg |
Features
Applications
Function Implementation Low-temperature labs -80 °C condenser temperature enables solvent-based specimen freeze drying High-throughput lyophilization 3 kg / 24 h condenser capacity supports continuous freeze drying operations Small-scale research 0.1 m² freeze drying area facilitates compact laboratory setups Vial-based processing 372 pieces Φ 16 mm vial capacity enables efficient batch processing Compact industrial facilities 830 x 680 x ( 400 + 430 ) mm dimensions allow for space-saving installation
Lab Expo Benchtop Freeze Dryers support efficient lyophilization where compact footprint, stable vacuum control, and precise low-temperature condensation are required for sensitive samples. The system operates with regulated refrigeration at defined condenser temperatures and controlled vacuum to maintain consistent sublimation conditions. Corrosion-resistant cold traps, transparent doors, and digital monitoring support controlled operation, while versatile manifold configurations enable repeatable, adaptable freeze-drying performance for routine laboratory workflows.
