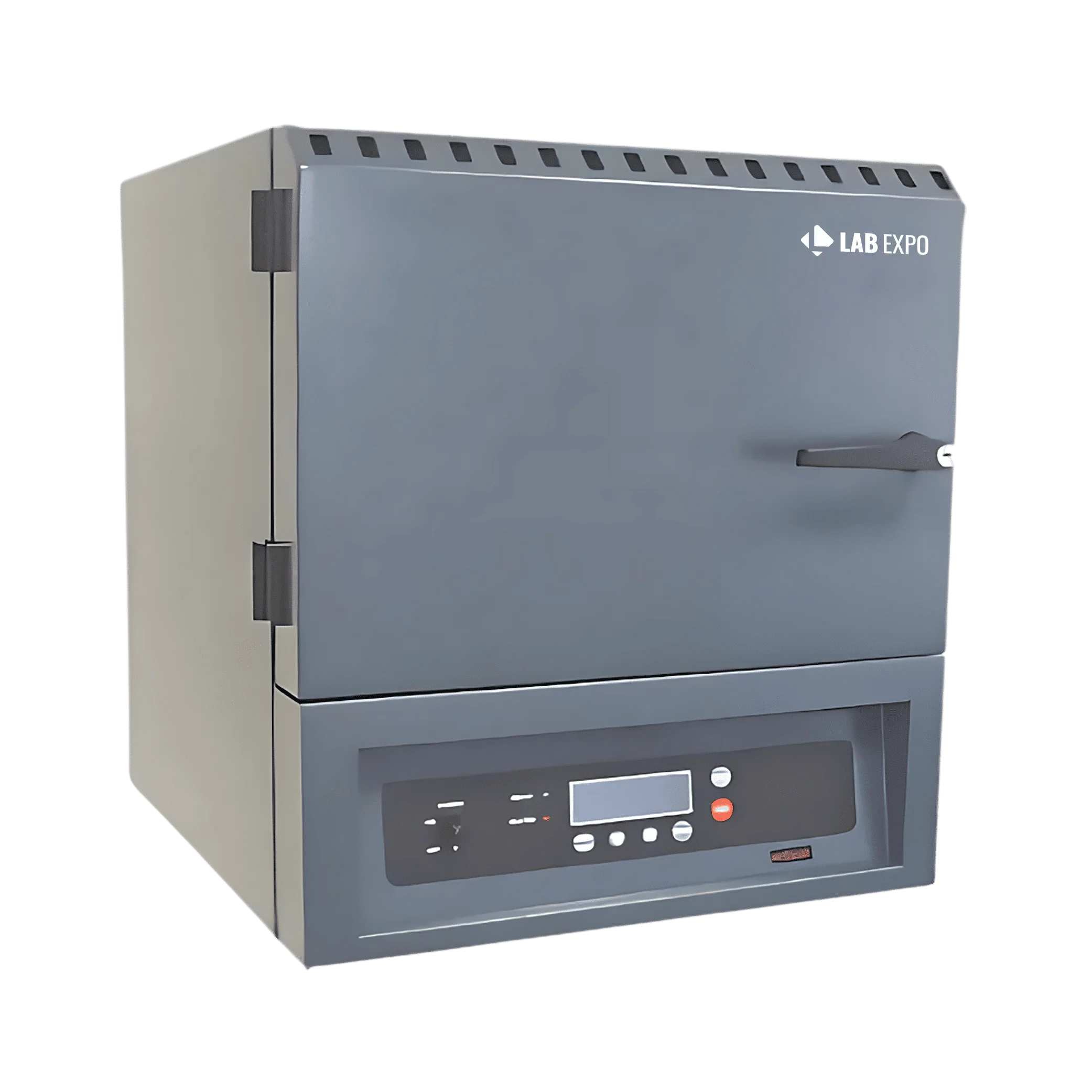

Muffle Furnace 04A-MFF803

Muffle Furnace 04A-MFF803

Overview :

Lab Expo Muffle Furnace 04A-MFF803 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1550 °C.

Features:

  • 4 step heating programs available for process control
  • SiC heating elements horizontally aligned next to side walls
  • Accurate temperature measurement using S type thermocouple
  • Durable inside lining of high quality insulating bricks and ceramic fibre board

Applications:

FunctionImplementationHigh-temperature ashing1550 °C enables complete sample oxidationLaboratory thermal cycling4 step program controls sequential heating phasesPrecision temperature control± 1 °C accuracy supports repeatable analytical resultsEnergy monitoring operations7.000 W power input tracks instantaneous consumptionSpace-constrained labs180 x 160 x 260 mm chamber fits compact workspaces

Specifications:
Max. Temperature 1550 °C
Capacity 6 L
Heating Program 4 step
Thermal Rate 3 °C - 20 °C
Heating element SiC (Silicon Carbide)
Program Memories 4
Thermocouple Type S Type
Display 4 x 20" LCD
Heating Element Placement Horizontally aligned next to the side walls
Inner Insulation Material Ceramic Fibre Board
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard without fan
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1 °C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Auto Start at Certain Date Yes
Show Remaining Waiting Time Yes
Skip the Waiting Step Yes
Burst Heating Mode Yes
Max. Current 2 x 16 A
Power 7.000 W
Inner Chamber Dimension (W x H x D) 180 x 160 x 260 mm
Product Outer Dimension (W x H x D) 545 x 636 x 684 mm
Gross Dimension (W x H x D) 605 x 696 x 844 mm
Net Weight 56 kg
Gross weight 75 kg
Optional Features:
Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply
Spare Parts:
Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan
