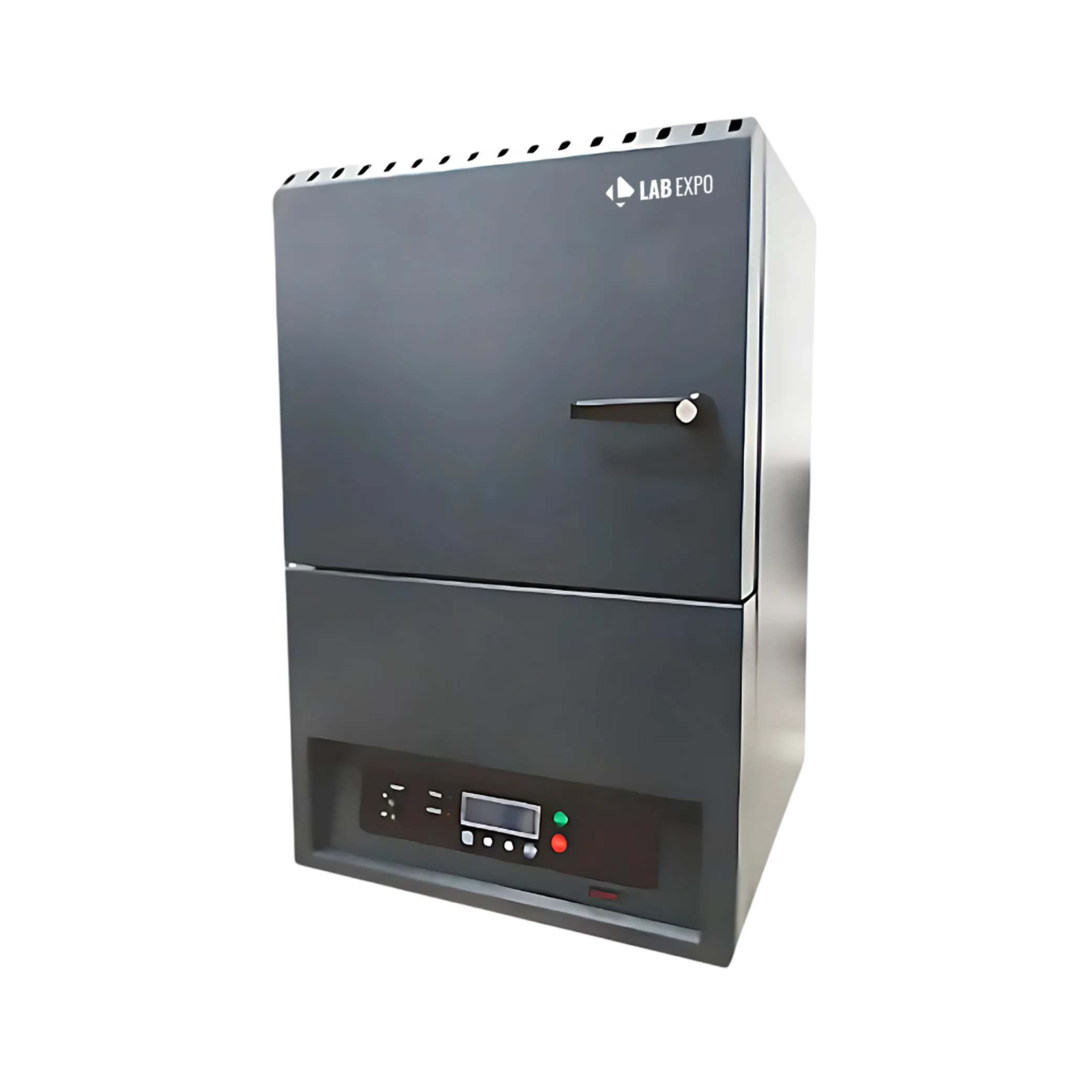

Muffle Furnace 04A-MFF912

Muffle Furnace 04A-MFF912

Overview :

Lab Expo Muffle Furnace 04A-MFF912 is a microprocessor controlled furnace that is uniquely designed with optimum heat insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements MoSi₂ vertically aligned next to the side walls, S and B type thermocouple, dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperature of 1600 °C. Having user friendly menu in 4 line display for easy operation and current limit control for safe operation, it is designed for minimal space requirement in the laboratory and is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc.

Features:

  • MoSi₂ heating elements vertically aligned next to side walls
  • Accurate temperature measurement using S and B type thermocouples
  • Unique electronic design and software integration
  • Step indicator displaying active program phase during operation sequence

Applications:

FunctionImplementationAshing organic materials16 L capacity supports sample processing in quality control labsContinuous high-temperature operation8600 W sustains maximum working temperature of 1600 °CMulti-step thermal programming4 step heating program controls complex sequences for material testingPrecise temperature maintenance± 1 °C accuracy ensures repeatable analytical results in research settingsLow surface temperature handlingDual sheet housing reduces outer surface temperature for safe laboratory use

Specifications:
Max. Temperature 1600 °C
Capacity 16 L
Heating Program 4 step
Thermal Rate 3 °C - 20 °C
Heating element MoSi₂ (Molybdenum disilicide)
Program Memories 4
Thermocouple Type S Type
Display 4 x 20" LCD
Heating Element Placement Vertically aligned next to the side walls
Inner Insulation Material Ceramic Fibre Board
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard without fan
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1 °C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Auto Start at Certain Date Yes
Show Remaining Waiting Time Yes
Skip the Waiting Step Yes
Burst Heating Mode Yes
Max. Current 3 x 24 A
Power 8.600 W
Inner Chamber Dimension (W x H x D) 200 x 255 x 315 mm
Product Outer Dimension (W x H x D) 532 x 981 x 889 mm
Gross Dimension(W x H x D) 592 x 1041 x 1049 mm
Net Weight 150 kg
Gross weight 180 kg
Optional Features:

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Spare Parts:

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan
