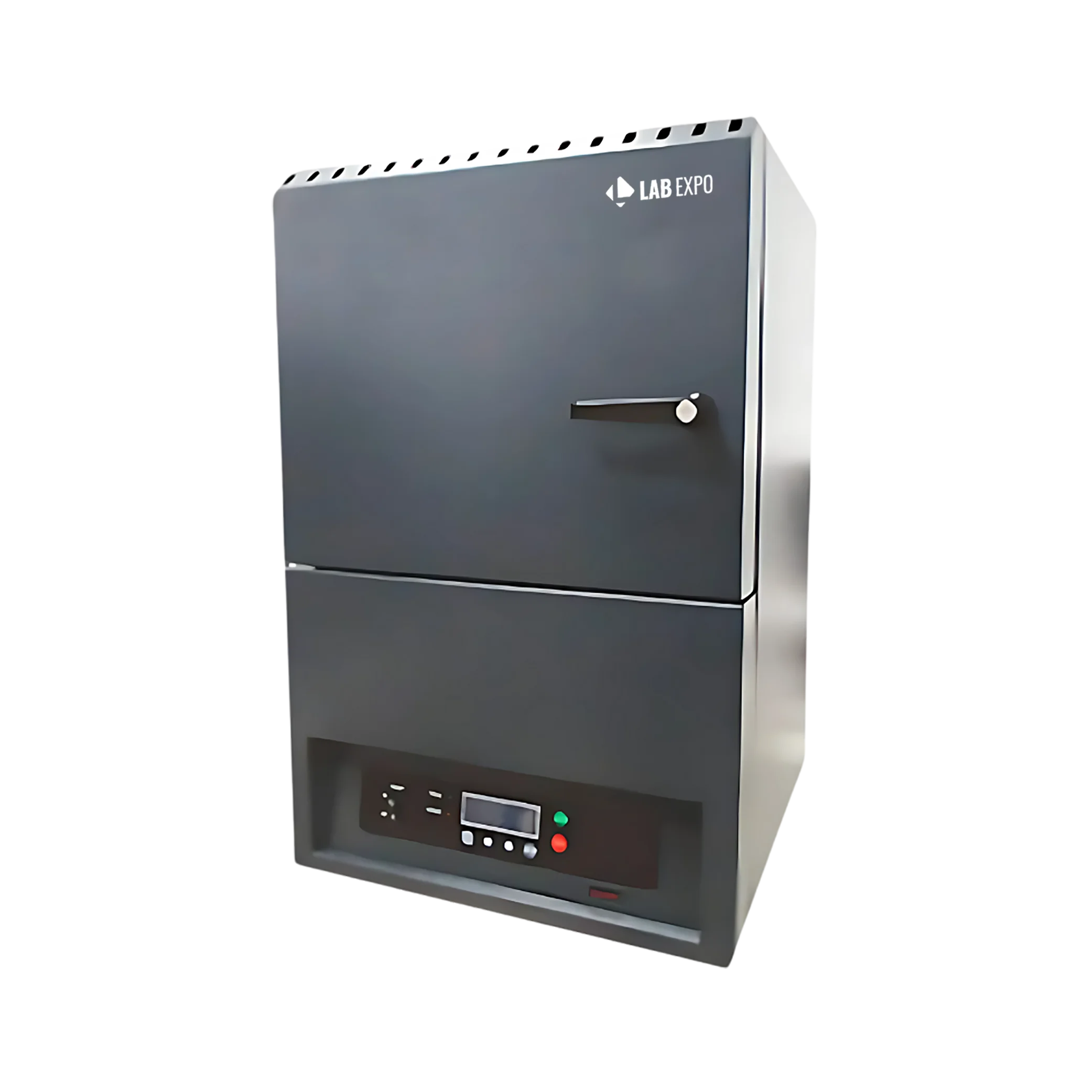

Muffle Furnace 04A-MFF1106

Muffle Furnace 04A-MFF1106

Overview :

Lab Expo Muffle Furnace 04A-MFF1106 is a microprocessor controlled furnace that is uniquely designed with optimum heat insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements MoSi₂ (Molybdenum disilicide) vertically aligned next to the side walls, S and B type thermocouple, dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperature of 1750 °C. Having user friendly menu in 4 line display for easy operation and current limit control for safe operation, it is designed for minimal space requirement in the laboratory and is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc.

Features:

  • 9L ceramic fibre board chamber with uniform heating
  • MoSi₂ heating elements vertically aligned next to side walls
  • S and B type thermocouple for accurate temperature measurement
  • Instantaneous energy consumption indicator real-time monitoring
  • Total working hour counter tracking operational duration usage
  • Control unit overheat sensor triggering safety shutdown protocol automatically

Applications:

FunctionImplementationMaterial ashing labs9 L capacity supports batch processing of organic samplesHigh-temperature sintering1750 °C max temperature enables ceramic and metal processingThermal cycling applications4 step heating program controls multi-stage heat treatmentContinuous operation facilitiesAuto start at certain date allows unattended furnace activationPrecision thermal testing±1°C accuracy maintains consistent test conditions

Specifications:
Max. Temperature 1750 °C
Capacity 9 L
Heating Program 4 step
Thermal Rate 3 °C - 20 °C
Heating element MoSi₂ (Molybdenum disilicide)
Program Memories 4
Thermocouple Type B Type
Display 4 x 20" LCD
Heating Element Placement Vertically aligned next to the side walls
Inner Insulation Material Ceramic Fibre Board
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard without fan
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1°C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Auto Start at Certain Date Yes
Show Remaining Waiting Time Yes
Skip the Waiting Step Yes
Burst Heating Mode Yes
Max. Current 2 x 25 A
Power 11.000 W
Inner Chamber Dimension (W x H x D) 170 x 205 x 260 mm
Product Outer Dimension (W x H x D) 522 x 975 x 869 mm
Gross Dimension (W x H x D) 582 x 1035 x 1029 mm
Net Weight 136 kg
Gross weight 162 kg
Optional Features:

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Spare Parts:

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan
