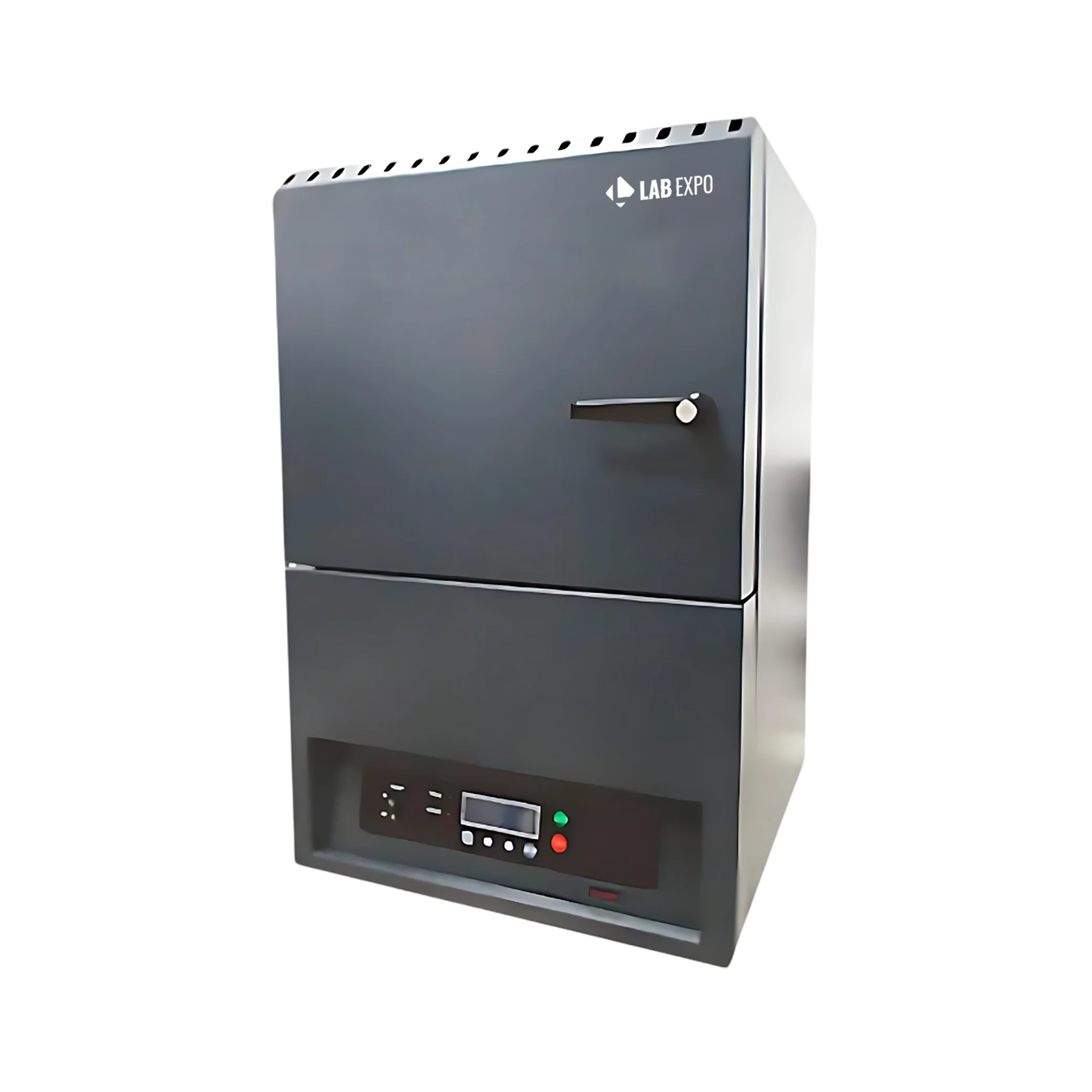

Muffle Furnace 04A-MFF1109

Muffle Furnace 04A-MFF1109

Overview :

Lab Expo Muffle Furnace 04A-MFF1109 is a microprocessor controlled furnace that is uniquely designed with optimum heat insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements MoSi₂ (Molybdenum disilicide) vertically aligned next to the side walls, S and B type thermocouple, dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperature of 1750 °C. Having user friendly menu in 4 line display for easy operation and current limit control for safe operation, it is designed for minimal space requirement in the laboratory and is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc.

Features:

  • Unique electronic design with software control capabilities
  • Durable inner lining of high quality insulating bricks and ceramic fibre board
  • Dual shell housing maintaining low outer surface temperature during operation
  • Current limit control ensuring safe electrical operation under load conditions
  • Audible warning signal at step changes and program completion events
  • Step indicator displaying active program phase during operation

Applications:

FunctionImplementationAshing organic materials16 L capacity supports batch processing of food and plastic samplesContinuous high-temperature operation11700 W sustains continuous 1750°C working temperatureMulti-program thermal cycling4 program memories enable repeatable heating sequencesPrecise analytical testing±1°C measurement accuracy ensures reliable temperature controlAutomated process controlAuto start at certain date enables scheduled operation cycles

Specifications:
Max. Temperature 1750 °C
Capacity 16 L
Heating Program 4 step
Thermal Rate 3 °C - 20 °C
Heating element MoSi₂ (Molybdenum disilicide)
Program Memories 4
Thermocouple Type B Type
Display 4 x 20" LCD
Heating Element Placement Vertically aligned next to the side walls
Inner Insulation Material Ceramic Fibre Board
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard without fan
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1°C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Auto Start at Certain Date Yes
Show Remaining Waiting Time Yes
Skip the Waiting Step Yes
Burst Heating Mode Yes
Max. Current 3 x 22 A
Power 11.700 W
Inner Chamber Dimension (W x H x D) 200 x 255 x 315 mm
Product Outer Dimension (W x H x D) 522 x 1025 x 924 mm
Gross Dimension (W x H x D) 612 x 1085 x 1084 mm
Net Weight 165 kg
Gross weight 195 kg
Optional Features:

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Spare Parts:

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan
