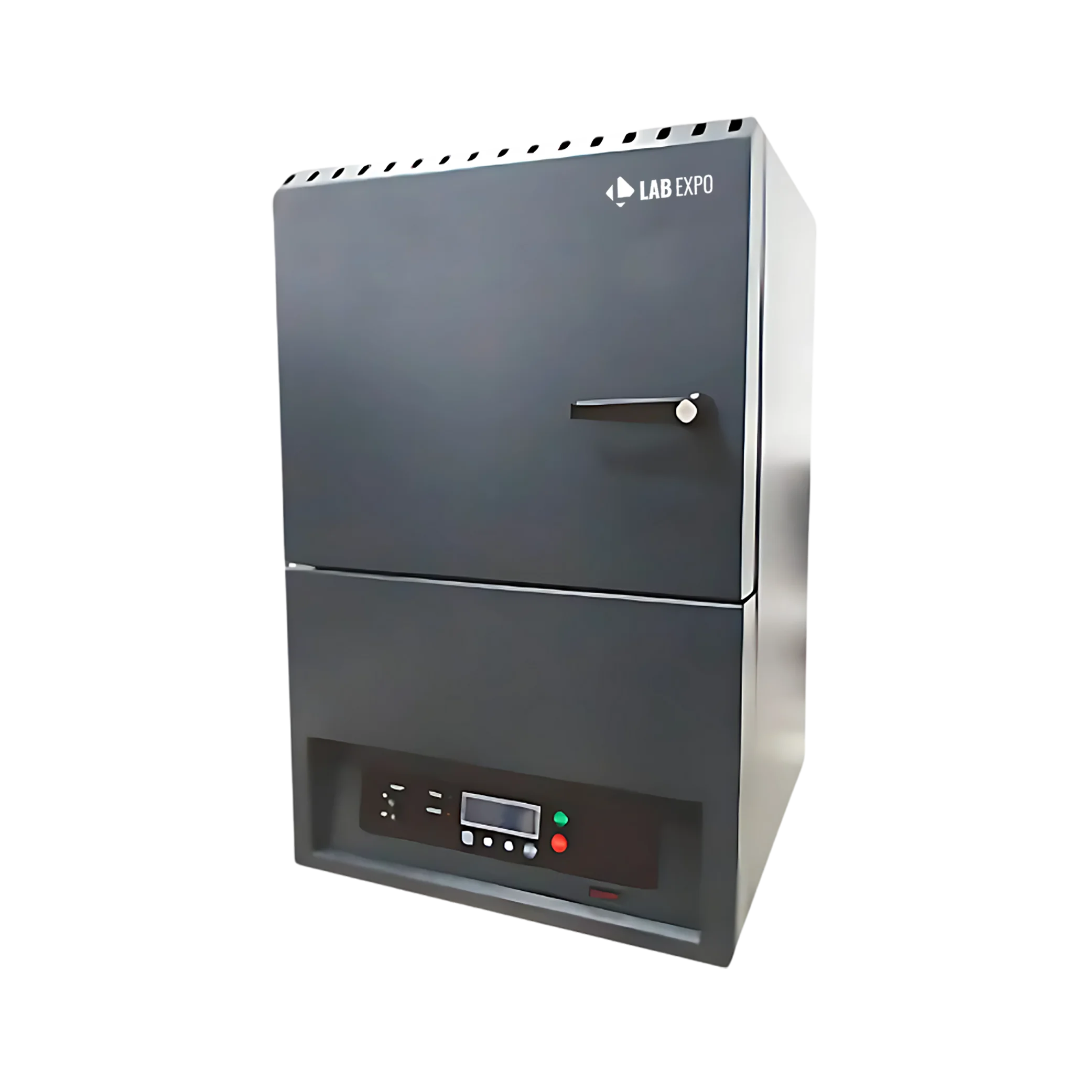

Muffle Furnace 04A-MFF1115

Muffle Furnace 04A-MFF1115

Overview :

Lab Expo Muffle Furnace 04A-MFF1115 is a microprocessor controlled furnace that is uniquely designed with optimum heat insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements MoSi₂ (Molybdenum disilicide) vertically aligned next to the side walls, S and B type thermocouple, dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperature of 1750 °C. Having user friendly menu in 4 line display for easy operation and current limit control for safe operation, it is designed for minimal space requirement in the laboratory and is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc.

Features:

  • 4x20 inch LCD display showing real-time temperature
  • Optimum insulation properties with ceramic fibre board lining
  • Four-step heating program available for process control
  • MoSi₂ heating elements vertically aligned next to side walls
  • B-type thermocouple ensuring accurate temperature measurement up to 1750C
  • Unique electronic design and software enabling precise thermal regulation

Applications:

FunctionImplementationAshing of organic materials1750 °C enables complete combustion testingMulti-step thermal processing4 step program controls sequential heating cyclesHigh-temperature sample analysis± 1°C accuracy supports precise measurement resultsContinuous operation environmentsBurst Heating Mode accelerates ramp-up phasesLarge-batch material testing60 L capacity accommodates substantial sample loads

Specifications:
Max. Temperature 1750 °C
Capacity 60 L
Heating Program 4 step
Thermal Rate 3 °C - 20 °C
Heating element MoSi₂ (Molybdenum disilicide)
Program Memories 4
Thermocouple Type B Type
Display 4 x 20" LCD
Heating Element Placement Vertically aligned next to the side walls
Inner Insulation Material Ceramic Fibre Board
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard without fan
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1°C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Auto Start at Certain Date Yes
Show Remaining Waiting Time Yes
Skip the Waiting Step Yes
Burst Heating Mode Yes
Max. Current 3 x 37 A
Power 19.900 W
Inner Chamber Dimension (W x H x D) 320 x 420 x 450 mm
Product Outer Dimension (W x H x D) 672 x 1190 x 1059 mm
Gross Dimension (W x H x D) 732 x 1250 x 1219 mm
Net Weight 195 kg
Gross weight 234 kg
Optional Features:

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Spare Parts:

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan
