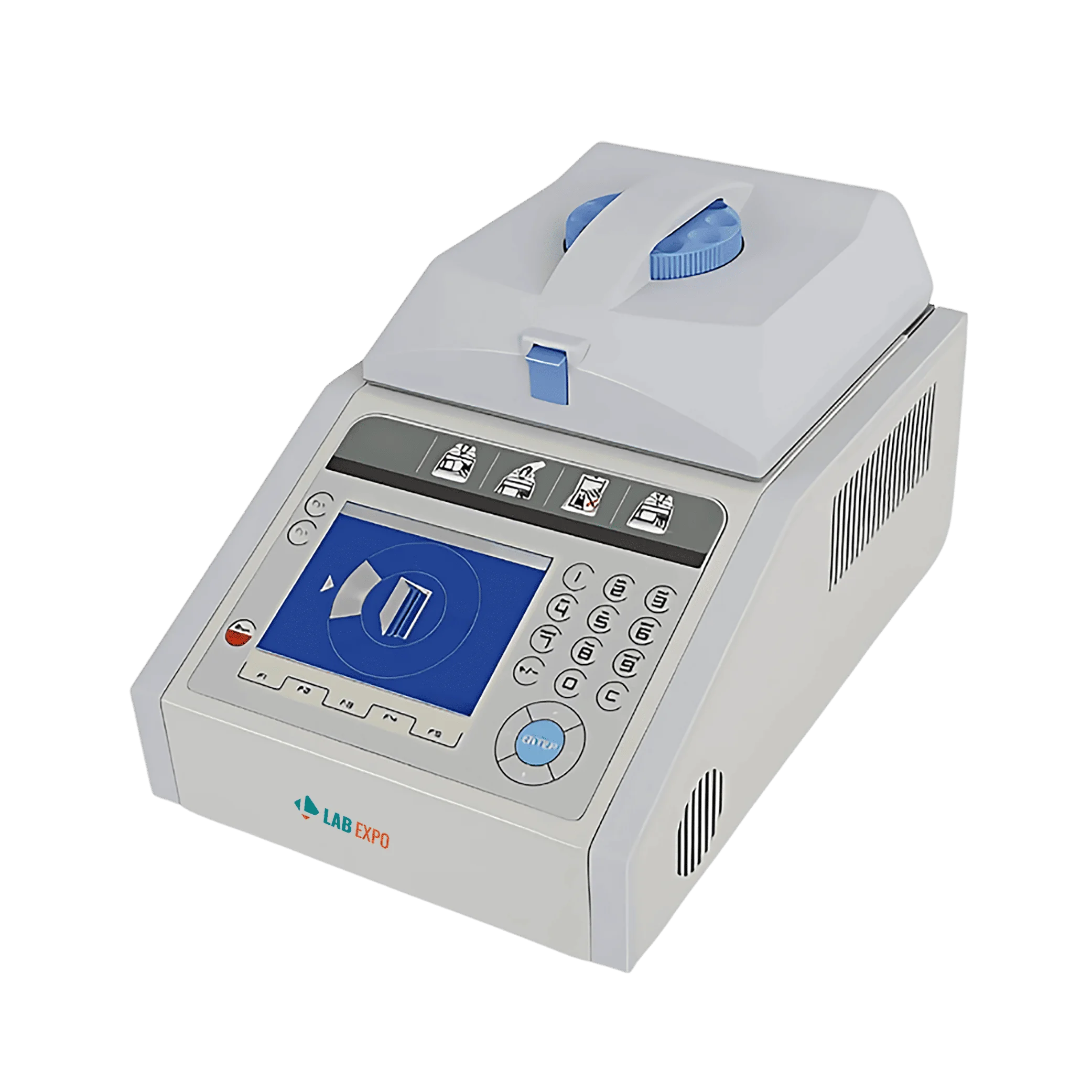

Advanced Thermal Cycler (Basic) 62-ATC102

Advanced Thermal Cycler (Basic) 62-ATC102

Overview :

Lab Expo Advanced Thermal Cycler (Basic) 62-ATC102 is adopted with advanced peltier based semi-conductor technology for thermal uniformity, is used in multiple PCR based experiments. It uses 6 pieces of advanced (US) Marlow peltier with maximum cycle time more than 200,000. This thermal cycler works on latest Windows OS, performs control function, print function, stores large data through USB interface for reliable, safe usage.

Features:

  • Microprocessor-based PID control with 0.1C resolution
  • 5.7 inch digital LCD display with 320x240 pixels
  • USB data protection during power failure via storage
  • Stepless adjustable hot lid height for tube compatibility
  • Temperature uniformity within ±0.3C accuracy maintained

Applications:

FunctionImplementationPCR amplification≤ ± 0.2 ℃ accuracy ensures precise temperature controlMulti-step protocols9 max steps enable complex thermal programmingHigh-throughput sample processing54 × 0.5 ml capacity supports batch operationsExtended cycling applications99 max cycles allow prolonged experimental runsData logging and transferUSB 2.0 interface enables reliable data export

Specifications:
Capacity 54 × 0.5 ml
Block Temperature Range 0 to 99.9°C
Temperature Control Accuracy ≤ ± 0.2 ℃
Ramping Rate Adjustable 0.1 to 2.5℃
Temperature Uniformity ≤ ± 0.3 ℃
Heating Rate 4 ℃/s
Cooling Rate 3 ℃/s
Temperature Control Mode Block \ Tube
Hot-lid Temperature Range 30 to 110℃
Hot Lid Height Adjustable Stepless Adjustable
Max No. of Steps 9
Max No. of Cycles 99
Time Increment/Decrement 1 sec to 9 min 59 sec
Temperature Increment/Decrement 0.1 to 9.9℃
Program 200
Pause Function Yes
Auto Data Protection Yes
Print Yes
LCD 5.7 inch, 320 × 240 pixels
Communication USB 2.0 , RS232
Power Supply 85 to 264 V AC , 47 to 63 Hz , 600 W
Dimension ( L×W×H ) 380 × 240 × 260 mm
Weight 10 kg
