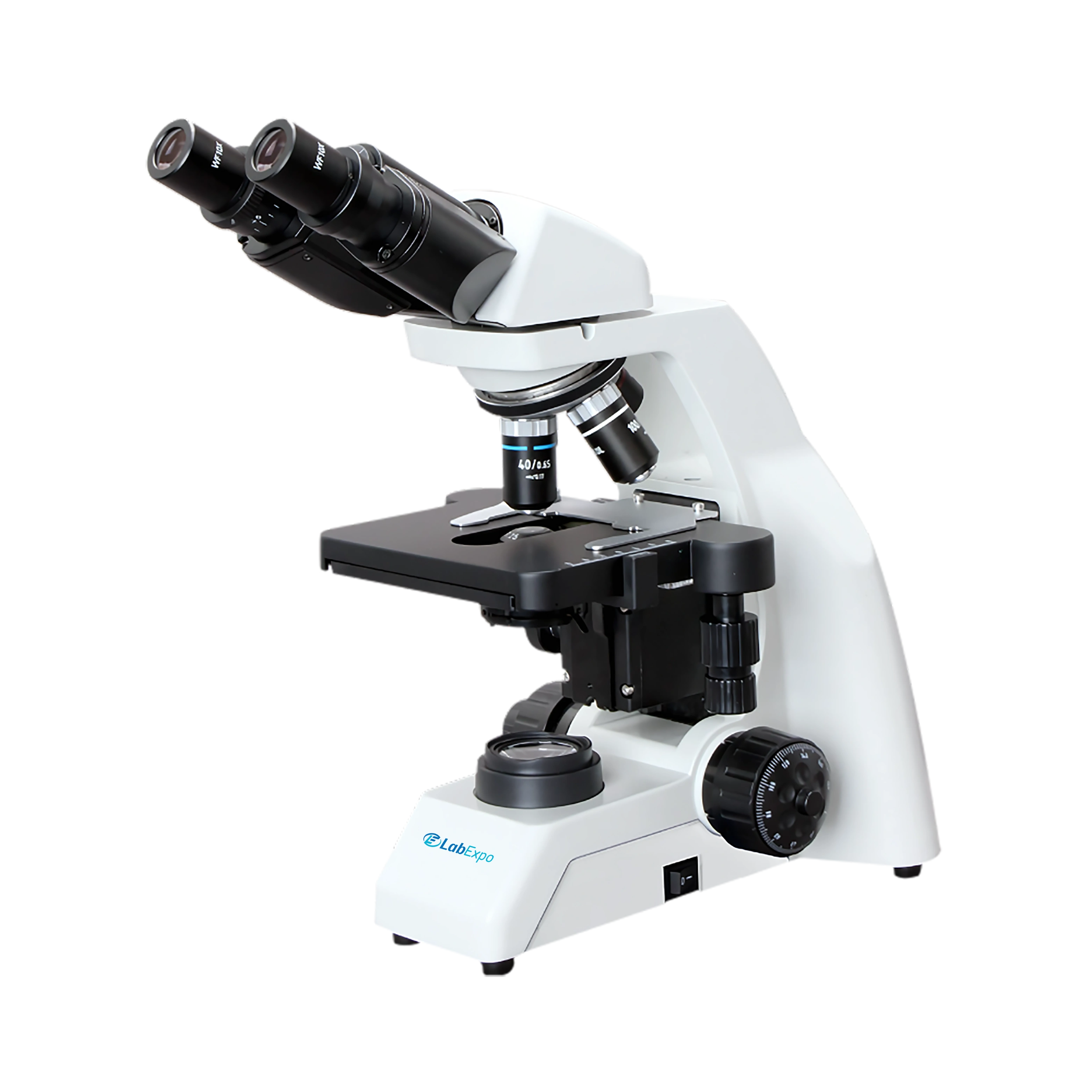

Biological Microscope LE-BM302

Biological Microscope LE-BM302

Overview :

Lab Expo Biological Microscope LE-BM302 provides sharp image display with excellent optical performance. Equipped with a finite optical system for accurate and reliable observation. Integrated stand design ensures compact structure and minimal space usage. Incorporated anti-mould technology supports stable performance. Our Biological Microscope is suitable for educational, clinical, and laboratory applications.

Features:

  • Hinged binocular viewing head inclined at 30 degrees
  • Halogen lamp illumination system operating at six volts twenty watts
  • S-LED illumination with integrated recharger unit for extended use
  • Kohler illumination providing uniform brightness across field of view
  • Backward quadruple nosepiece enabling rapid objective selection changes

Applications:

FunctionImplementationEducational labsWF10×/18 eyepiece enables clear specimen viewingClinical diagnostics100× NA=1.25 WD=0.13 objective supports detailed cell analysisResearch applicationsFinite optical system ensures accurate observationLaboratory workflowsCoaxial coarse and fine adjustment with 0.002mm fine division allows precise focusingQuality control settingsDouble layers mechanical stage 140X140mm with 75X50mm moving range facilitates sample manipulation

Specifications:
Optical System

Finite Optical System
Eyepiece

WF10×/18
Viewing Head

Hinged type Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm
Achromatic Objective

4× NA=0.1 WD=18

10× NA=0.25 WD=7

40× NA=0.65 WD=0.53

100× NA=1.25 WD=0.13
Nosepiece

Backward Quadruple Nosepiece
Stage

Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm
Condenser

NA1.25 Abbe Condenser

Dark Field Condenser (Dry, Oil)
Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm
Illumination

Halogen Lamp 6V/20W

S-LED Illumination

S-LED Illumination with Recharger

Kohler Illumination

ECO Function

Plane-concave Mirror
Fluorescent Attachment

Fluorescent Illumination, 100W HBO lamp
