Biological Microscope LE-BMI201 Catalog

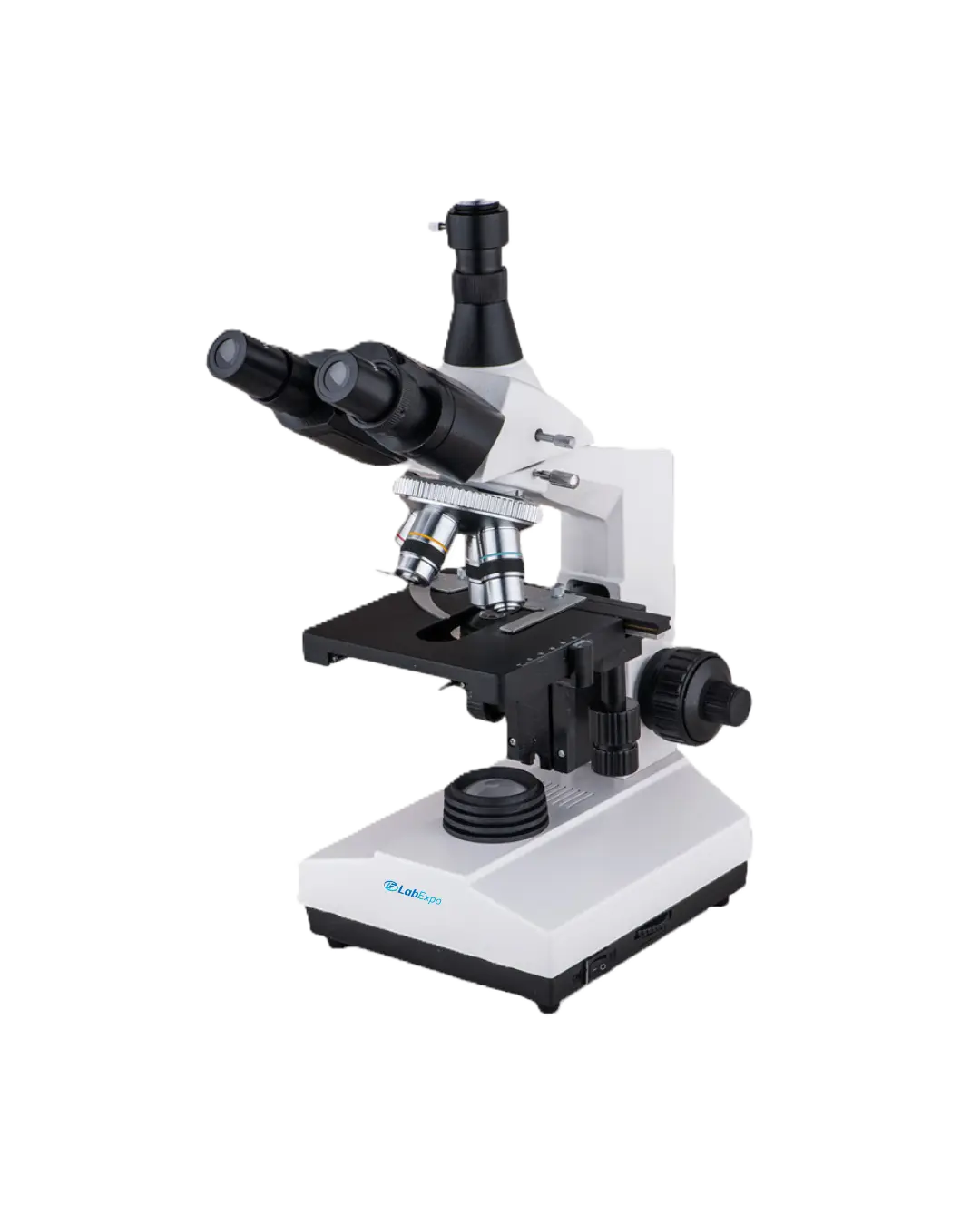

Biological Microscope LE-BMI201

Overview :

Biological Microscope LE-BMI201 comes with achromatic objectives 4X, 10X, 40X, and 100X for sharp observations. Features a trinocular observing head for simultaneous viewing and imaging. Equipped with mechanical stage with XY controls for accurate specimen navigation. Supports compatibility with microscope cameras for documentation and teaching. Our Biological Microscope is designed to deliver reliability, clarity, and versatility in laboratory use.

Features:

Halogen Lamp
Ergonomic Design
High-Quality Optics
Precision Focusing System
Digital Imaging

Applications:

Biological Microscope LE-BMI201 is widely applied in clinical diagnostics, pathological studies, microbiology, and advanced biological research, while also serving as an essential tool in universities, medical colleges, and educational institutions for training and teaching purposes.

Specifications:

Achromatic Objectives	4X, 10X, 40X(S), 100X (S, Oil)
Eyepiece	Wide Field Eyepiece WF10X
Observing Head	Trinocular Head
Stage Dimension	132 × 140 mm
Moving Range	75 × 45 mm
Focusing	Coaxial coarse & fine adjustment
Focusing Range	30 mm
Focusing Interval	0.002 mm
Condenser	Abbe NA 1.25 with Iris Diaphragm & Filter
Illumination	Halogen Lamp
Power Consumption	20 W
Power Supply	220V/6V or 110V/6V
Dimensions	320 × 280 × 430 mm
Weight	3.8 kg
Gross Weight	5 kg

Standard Accessories:

Eyepiece WF10x

Optional Accessories:

Eyepiece WF16x
