Dispensing peristaltic pump 51-DPP202 Catalog

Download

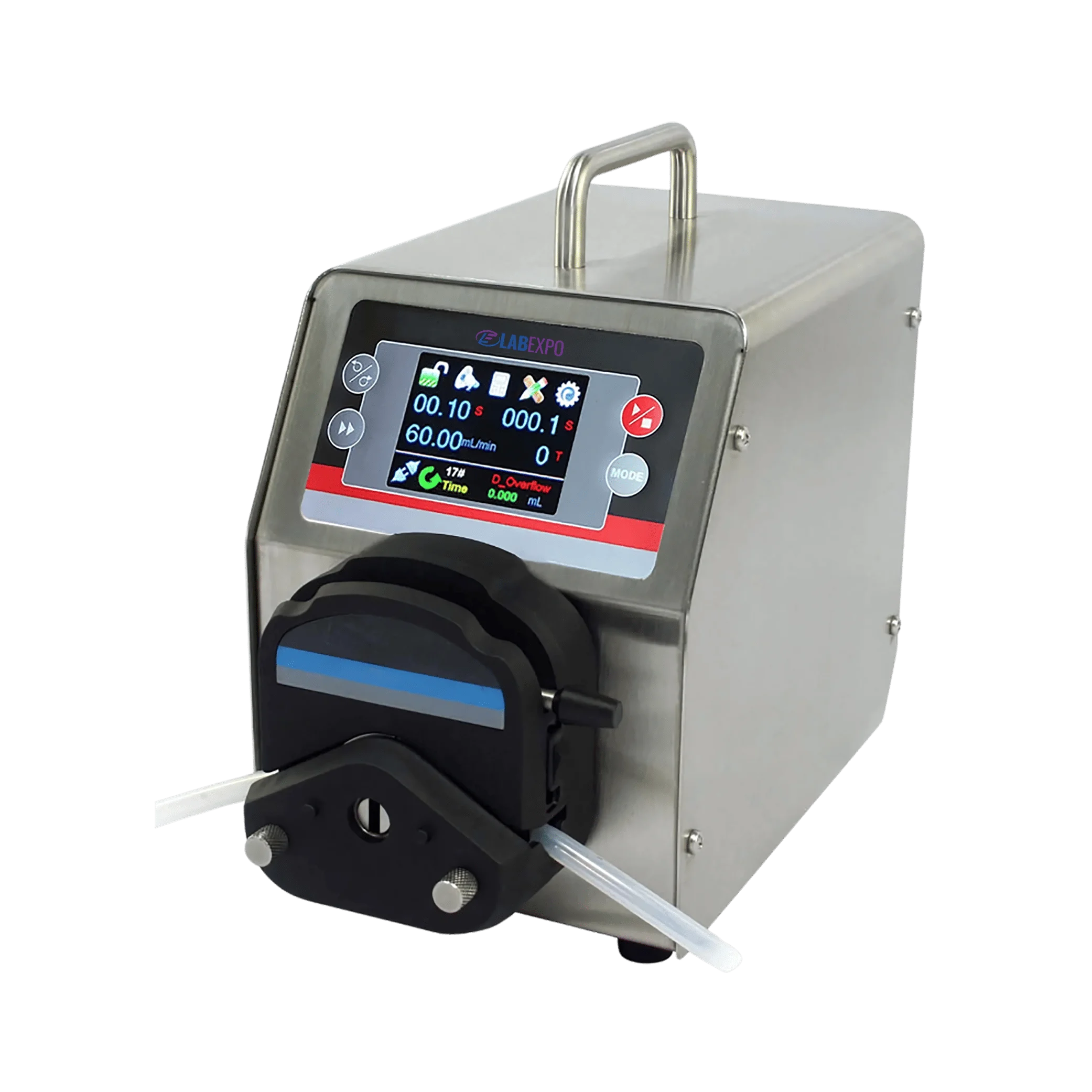

Dispensing peristaltic pump 51-DPP202

Dispensing peristaltic pump 51-DPP202

Overview :

Lab Expo Dispensing peristaltic pump is a dual channeled pump equipped with a touch screen controller that allows monitoring of parameters and change of speed. Equipped with advanced features such as flow rate calibration and anti-drip function. Four operational modes available for easy functioning. Easy dispense mode to dispense the recorded volume by one touch DISPENSE key. Intelligent cooling fan control helps in minimizing the work noise

Features:

  • LCD display monitoring parameters with touch screen controller
  • Anti-drip function ensuring dispense accuracy calibration
  • Speed resolution 0.1 rpm adjustable rotating speed range
  • Intelligent cooling fan control minimizing working noise operation
  • Reversible operation allowing pumping in both directions flow

Applications:

FunctionImplementationLaboratory fluid handling0.06 ~ 6000 mL/min enables precise dispensing across volumesDual-channel operationsNo of channel: 2 supports simultaneous fluid processingControlled environment useAmbient Temperature: 0 ~ 40 °C allows operation in standard labsTouchscreen parameter controlSpeed Resolution: 0.1 rpm facilitates fine adjustment during runsIndustrial workflow integrationPower Consumption: < 100 W supports continuous facility deployment

Specifications:
Flow Range 0.06 ~ 6000 mL/min
Flow Accuracy 0.005
Speed Range 0.1 ~ 600 rpm
No of channel 2
Speed Resolution 0.1 rpm
Ambient Temperature 0 ~ 40 °C
Relative Humidity < 80 %
IP grade IP 31
Power supply AC 220 V ±10 % , 50 Hz / 60 Hz
Power Consumption < 100 W
Dimensions ( L x W x H ) 330 x 220 x 235 mm
Weight 7.1 kg
Pump Heads and Tubing:
table.tableizer-table { font-size: 12px; border: 1px solid #CCC; font-family: Arial, Helvetica, sans-serif; } .tableizer-table td { padding: 4px; margin: 3px; border: 1px solid #CCC; } .tableizer-table th { background-color: #104E8B; color: #FFF; font-weight: bold; }
Model NoPump Head Flow rateChannelTubing Size ( mm )
51-DPP202A0.06 - 1700 (mL/min) per channel1Wall : 0.8 ~ 1
51-DPP202B1.7 - 1700 (mL/min) per channel1Wall : 0.8 ~ 1
51-DPP202C0.06 - 1700 (mL/min) per channel2Wall : 0.8 ~ 1
51-DPP202D1.7 - 1700 (mL/min) per channel2Wall : 0.8 ~ 1
51-DPP202E0.06 - 2300 (mL/min) per channel1Wall : 0.8 ~ 1
51-DPP202F1.7 - 2900 (mL/min) per channel1Wall : 0.8 ~ 1
51-DPP202G0.06 - 2300 (mL/min) per channel2Wall : 0.8 ~ 1
51-DPP202H1.7 - 2900 (mL/min) per channel2Wall : 0.8 ~ 1
51-DPP202I2.5 - 6000 (mL/min) per channel1Wall : 0.8 ~ 1
