Graphite Kjeldahl Digester 40-GKD100 Catalog

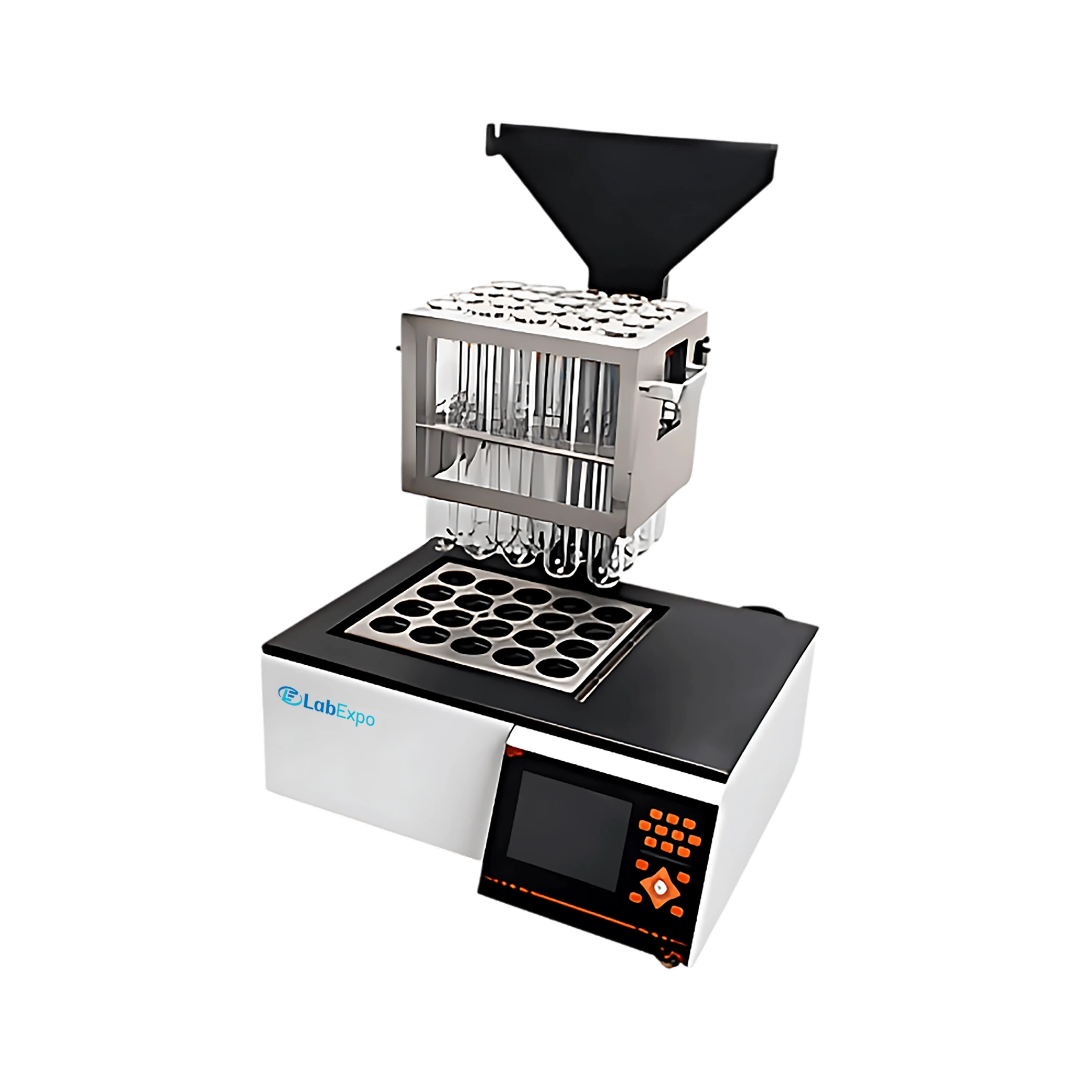

Graphite Kjeldahl Digester 40-GKD100

Overview :

Lab Expo Graphite Kjeldahl Digester 40-GKD100 is an eco-friendly graphite digester system that has an anti-corrosive design and uses high temperature infrared radiation heating technology. It offers 20 digestion programs and is equipped with 5.7" colour screen for easy use. With features such as advanced PID temperature control technology and advanced insulation technology, provides over-current protection, high temperature warning and over load protection.

Specifications:

Temperature Range	5 °C - 450 °C
Digestion Tube Capacity	280 ml
Capacity Per Batch	20 pcs / batch
Heating Method	Infrared heating and high-purity graphite conduction
Heating Insulation Method	Unique air duct insulation technology
Temperature Accuracy	± 1 °C (450 °C)
Power Supply	AC 220 V ± 10 % / 50 Hz
Power	3.6 kW
Dimension	474 x 509 x 636 mm
Net Weight	25 kg

Features:

5.7 inch colour screen with real-time monitoring
Corrosion-resistant design with waste gas collection hood
Infrared heating and high-purity graphite conduction system
20 programmable digestion methods per batch cycle
Advanced insulation technology for thermal efficiency
Advanced PID control with 1C accuracy at 450C

Applications:

FunctionImplementationQuality control labs±1°C accuracy supports repeatable nitrogen analysisClinical testing facilities3.6 kW enables efficient sample processingResearch institutions20 pcs/batch handles medium-throughput workflowsIndustrial QA environments450 °C range accommodates diverse digestion protocolsEducational laboratories5.7" colour screen simplifies operator training
