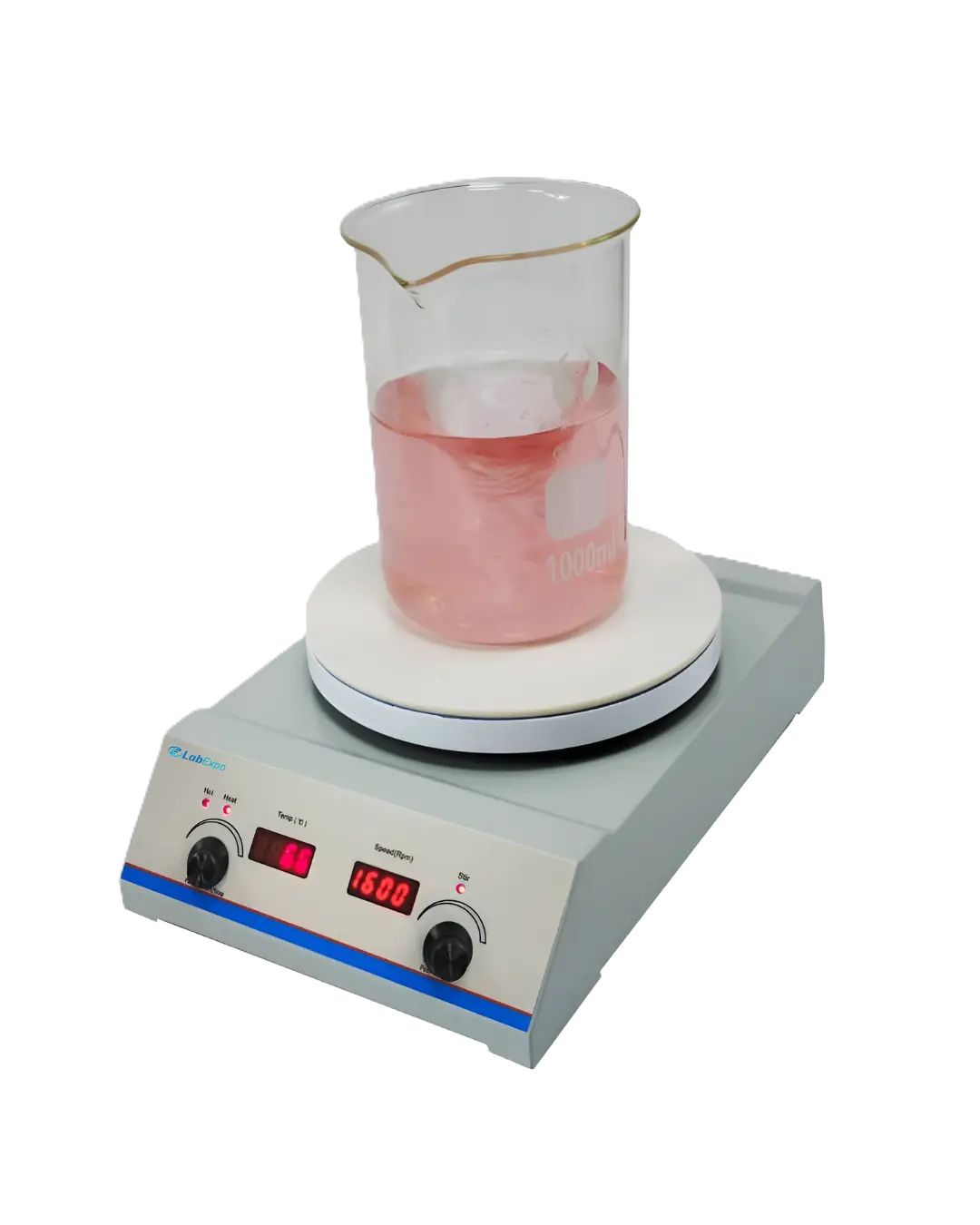

Lab Expo Hot Plate Magnetic Stirrer LE-HPS106 offers precise heating and stirring with a durable ceramic plate and a temperature range of 35 to 500 °C. It features a speed range of 150 to 1600 rpm and a maximum stirring capacity with bidirectional motion. Equipped with programmable timer for accurate, stable, and efficient operation. Our Hot Plate Magnetic Stirrer is ideal for chemical, biological, pharmaceutical, and environmental applications.
FunctionImplementationChemical synthesis labs150 to 1600 rpm enables controlled reaction mixingPharmaceutical formulation35.0 to 200.0°C solution range supports active ingredient processingEnvironmental sample prep±1°C accuracy maintains consistent extraction conditionsBiological research workflowsLED display allows real-time monitoring during extended runsQuality control testingIP21 protection ensures safe operation in humid lab settings
| Plate Dimensions | 178 mm |
| Plate Temperature Range | 35 to 500°C |
| Solution Temperature Range | 35.0 to 200.0°C |
| Temperature Stability | 1°C |
| Heat Control Accuracy | +/-0.5°C |
| Speed Range | 150 to 1600 rpm |
| Max. Stirring Quantity | 10L |
| Stir Bar Length Range | 25 to 60 mm |
| Motion Direction | CW/CCW |
| Display | LED |
| Plate Material | Ceramic |
| Hot Warning | Yes |
| Plate Heating Resolution | 1°C |
| Solution Heating Resolution | 0.1°C |
| Capable Calibration on External Probe | Yes |
| Timer | 9h and 59m |
| Overheat Warning & Medium Detection | Yes |
| Operation Ambient Temperature | 5 to 40°C |
| Operation Relative Humidity | 80% |
| Protection Class | IP21 |
| Frequency | 50/60 Hz |
| Power Consumption | 900W |
| Power Supply | 110 to 130V/200 to 240V |
| Dimensions | 192 × 293 × 100 mm |
| Weight | 3.8 Kg |
PT1000 external temperature Sensor
