Portable Autoclave 26-PTA206 Catalog

Download

Overview :

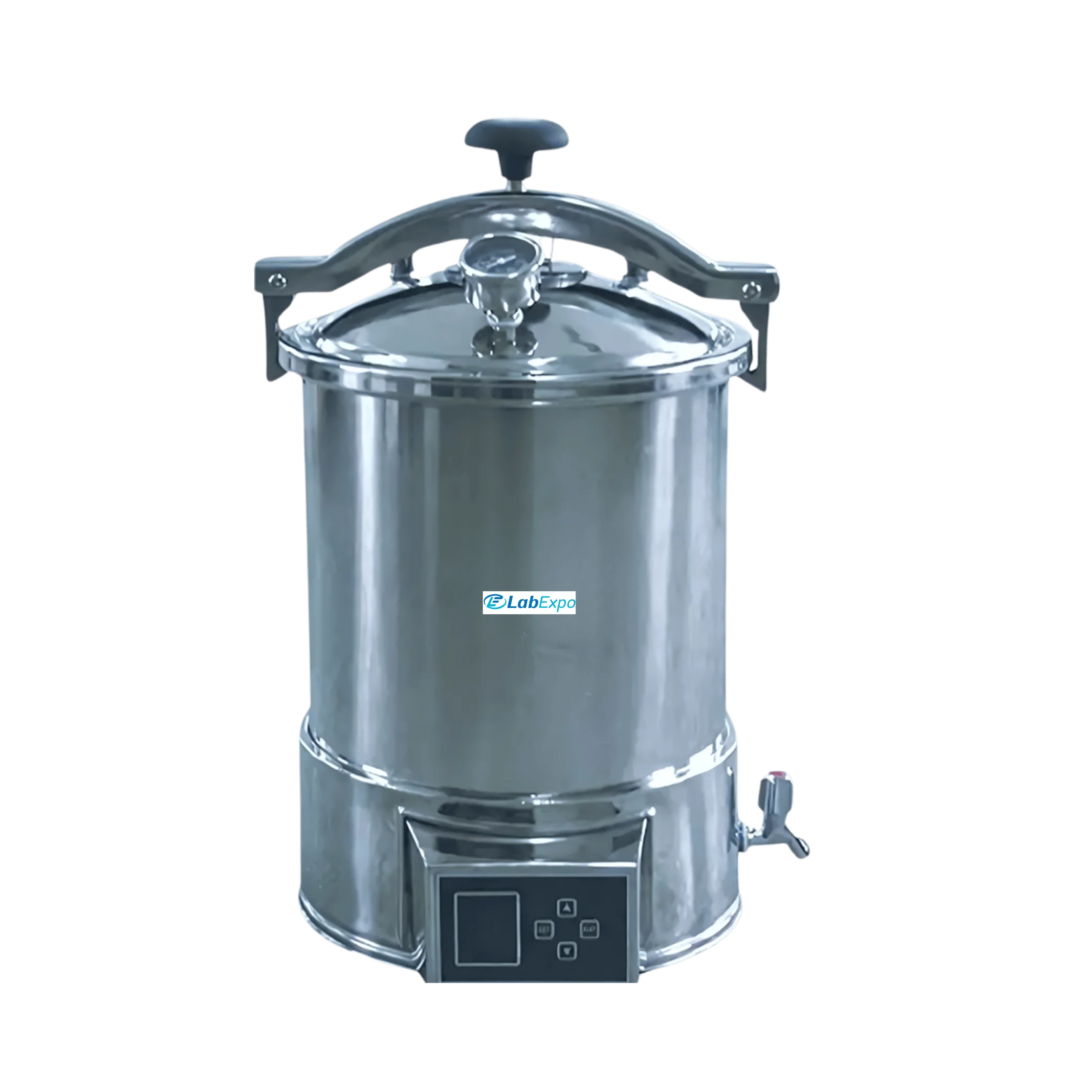

Portable Autoclave 26-PTA206 is a portable N class unit with capacity upto 24 L and a sterilizing temperature of 126 °C. It has an effectively sterilization which can inactivate even HIV, HBV, mad cow virus and bacillus. Equipped with safety features like automatic shutoff preventing overheating of chamber and auto protection against raised temperature and pressure.

Features:

  • Overheating and pressure warning indicator
  • Digital display to monitor working status and parameters
  • Indicator light to indicate the working
  • Automatic beep indication at the end of every cycle
  • Automatic power cut off with alarm with low water levels indication
  • Self-inflating leak proof chamber
  • Dual scale indicating pressure gauge
  • Electric heated

Applications:

Portable Autoclave is used in industries to sterilize equipment, bacteriological and research laboratories, medical, clinical and pharmaceutical industries

Specifications:
Volume of Chamber 24 L
Working temperature 126 ℃
Heating mode Electrically heated
Working pressure 0.14 to 0.16 MPa
Max safety pressure 0.165 MPa
Heat average ≤ ± 1℃
Temp adjustment 105 to 126 ℃
Power AC 220 V / 50 Hz
Overall Dimension 410 × 410 × 750 mm
Net Weight 14 Kg
Gross Weight 15 Kg
