High Speed Refrigerated Centrifuge 02A-HRC107 Catalog

Download

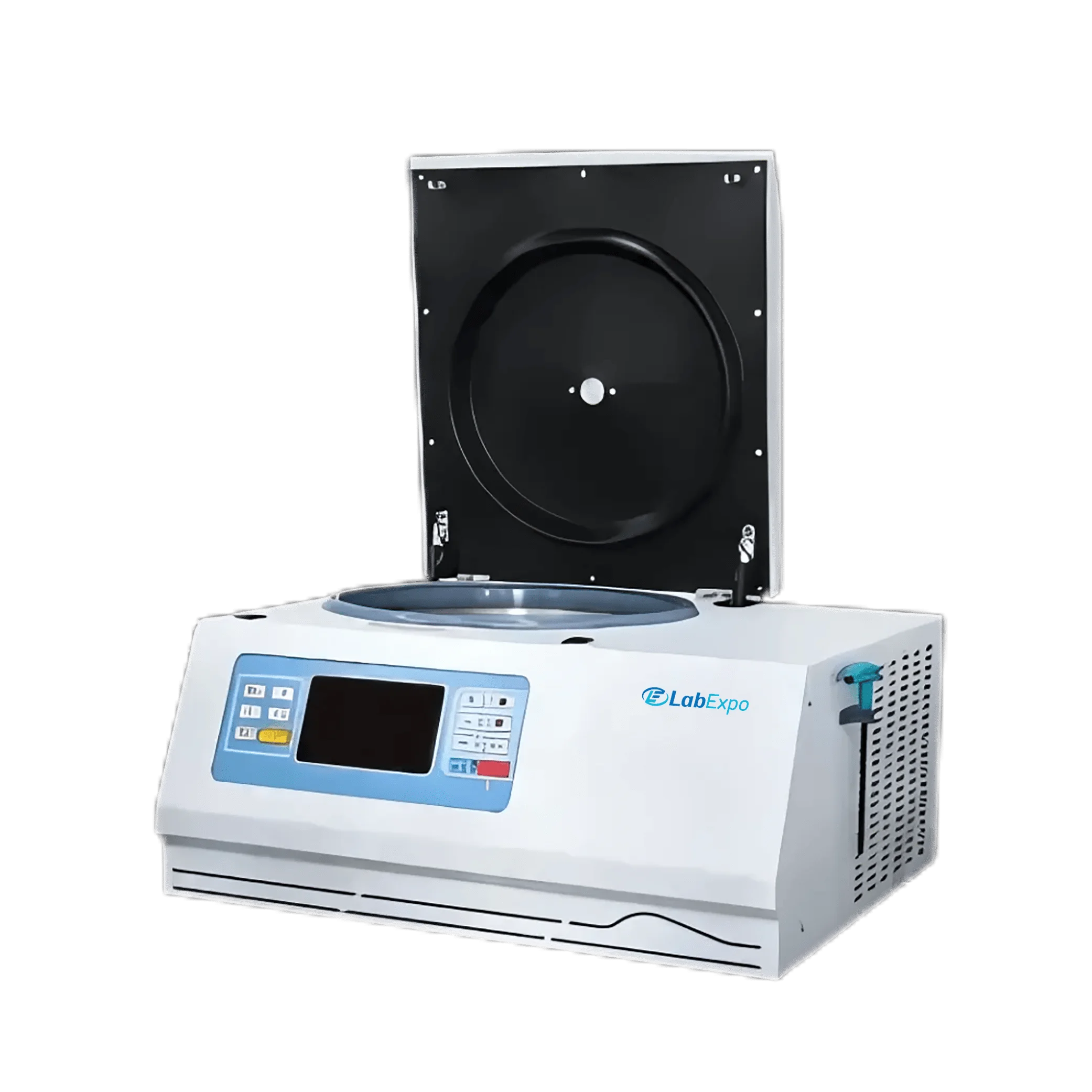

High Speed Refrigerated Centrifuge 02A-HRC107

High Speed Refrigerated Centrifuge 02A-HRC107

Overview :

High Speed Refrigerated Centrifuge 02A-HRC107 offers a maximum speed of 20,000 rpm, ensuring efficient sample processing at high rotational forces.  It operates within a temperature range of -20°C to 40°C and provides precise control over temperature-sensitive samples. It includes dual timing modes, enabling users to choose between start-timing and arrival revolution timing. Our centrifuge powered by advanced motor technology ensures high-speed performance with a brushless motor.

Features:

  • Maximum speed 20000 rpm generating up to 31115 x g centrifugal force
  • Temperature control range -20 C to 40 C with plus or minus 1 C accuracy
  • Capacity for 4 x 250 ml tubes
  • Programmable timer from 1 s to 99 h 59 min 59 s
  • Rotor automatic identification with HD LCD display

Applications:

FunctionImplementationHigh-force biological separationEfficient sedimentation of cells, proteins and particulatesTemperature-controlled centrifugationProcessing of heat-sensitive laboratory samplesMedium-volume laboratory workflowsFour-tube configuration supporting batch centrifugationClinical and research processingRobust refrigerated fractionation for diagnostics and analytical use

Specifications:
Max Speed 20000 rpm
Temp Range -20℃ to 40℃
Max RCF 31115 × g
Max Capacity 4× 250 ml
Temp Accuracy ±1.0℃
Timer 1 s to 99 h 59 min 59 s
Revolutions/min ±10 r/min
Noise Level ≤ 60 dB (A)
Rotor Automatic Identification Yes
Voltage AC 220 ± 22 V, 50 Hz, 15 A
Power 1.2KW
Dimension (W × D × H) 680 × 660 × 400 mm
Weight 108 kg
Rotor Selection:

Rotor Type

Capacity

Max Speed (rpm)

Max RCF (×g)

Angle Rotor 01

16×1.5/2.0ml

20000

30677

Angle Rotor 02

24×1.5/2.0ml

18000

31115

Angle Rotor 03

12×5ml

16000

17344

Angle Rotor 04

12×10ml

16000

23068

Angle Rotor 05

32×1.5/2.0ml

16000

26044

Angle Rotor 06

48×1.5/2.0ml

16000

27762

Angle Rotor 07

12×15ml/Conical bottom

14000

22241

Angle Rotor 08

6×50ml/Round bottom

13000

17146

Angle Rotor 09

6×50ml (Conical/Round bottom) (Include Adapter 6×15ml/Conical bottom）

12500

17608

Angle Rotor 10

4×100ml

12000

17016

Angle Rotor 11

6×100ml

12000

17548

Angle Rotor 12

8×50ml (Conical/Round bottom)

10000

12611

Angle Rotor 13

60×1.5ml

15000

18826

Angle Rotor 14

40×15ml

5000

4919

Swing-out Rotor 01

4×100ml

5000

3717

Swing-out Rotor 02

4×250ml (Round bucket)

4200

3352

Swing-out Rotor 03

4×250ml (Square bucket) (Including 1 set of optional adapter)

4200

3352

Swing-out Rotor 04

Micro-plate 2×2×96 hole

4200

2267
