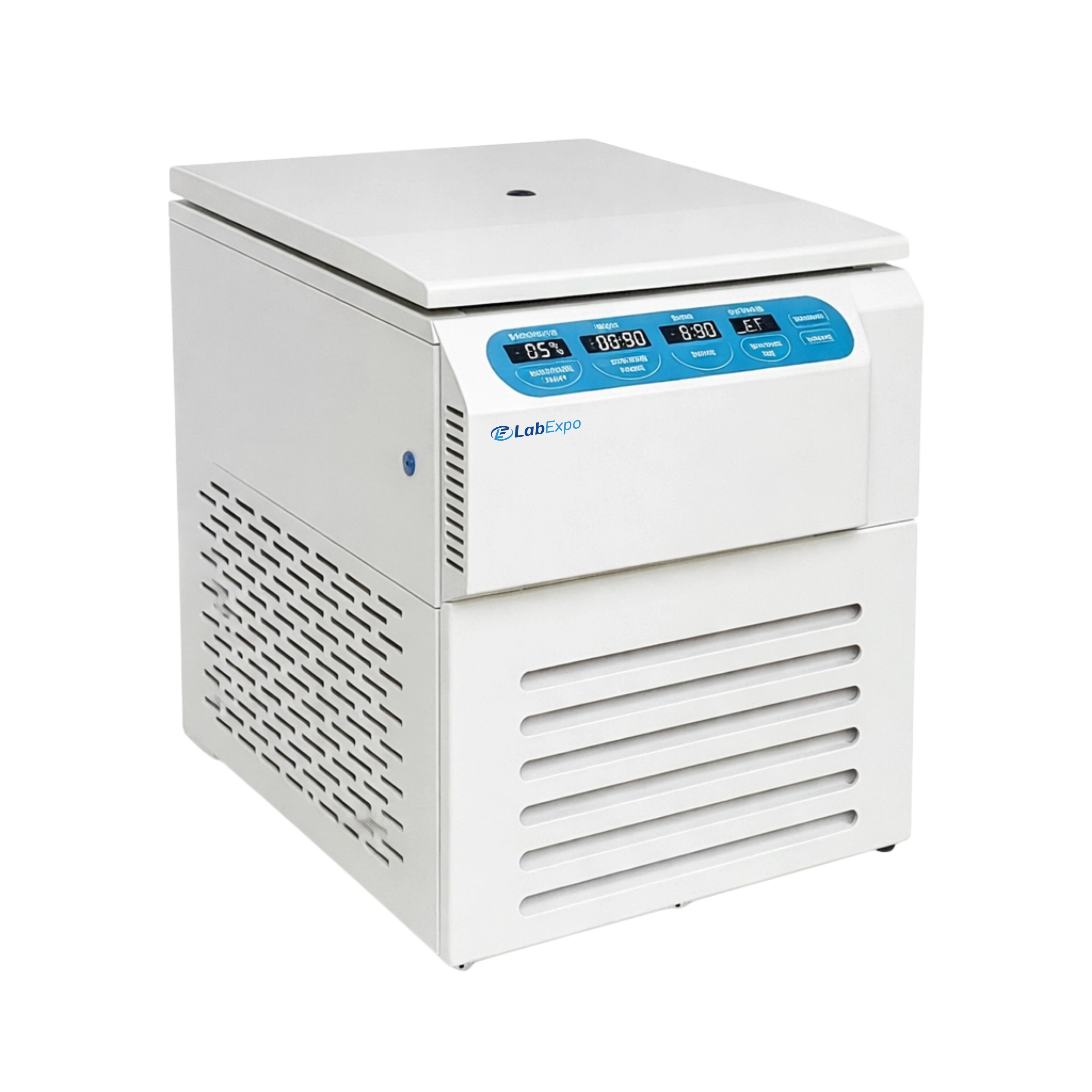

Refrigerated Centrifuge 02A-RRC104 is a microprocessor controlled floor standing refrigerated centrifuge having 6000 rpm speed. It is safe, reliable, low maintenance and easy-to-use instrument equipped with LCD display and low noise flexible axle driven rotor system. With auto electric locking system fluorine free compressors and 3 tier protective steel covering, it is ideal for blood separation, protein precipitation etc. and can be used at blood station and pharmaceutical industry for variety of applications.
FunctionImplementationHigh-force serum separation6000 rpm enables efficient blood component stratificationCold biomolecule workflows-20 C to 40 C stabilizes DNA, RNA and antibody samplesLarge-volume sample runs4 x 1000 ml capacity supports bulk processingPharmaceutical precipitate isolation6600 x g enables solid-liquid separationControlled analytical timingProgrammable timer up to 99 hr 59 min manages run duration
| Max. Speed | 6000 rpm |
| Max. RCF | 6600 x g |
| Max. Capacity | 4 x 1000 ml |
| Temp. Range | (-20) ℃ to 40 ℃ |
| Temp. Accuracy | ± 1 ℃ |
| Speed Accuracy | ± 50 rpm |
| Timer Range | 0 to 99 hr. 59 min |
| Noise | ≦ 55 dB |
| Power Supply | AC 110 to 220 V / 50 to 60 Hz / 20 A |
| Dimension (H x W x D) | 800 x 675 x 830 mm |
| Packaged Dimension (H x W x D) | 1500 x 790 x 960 mm |
| Net Weight | 220 kg |
| Gross Weight | 260 kg |
| Rotor Name | Max. Speed (rpm) | Max. Capacity (ml) | Max. RCF (x g) |
| Swing rotor 01 | 4000 | 4 x 1000 | 4060 |
| Angle rotor 01 | 6000 | 4 x 300 | 5390 |
| Angle rotor 02 | 6000 | 6 x 300 | 5660 |
| Angle rotor 03 | 6000 | 6 x 500 | 6600 |
Adapter for 1000ml bucket:
| Volume | 5ml | 7ml | 10ml | 15ml | 50ml |
| 1000ml | 23pcs/cup | 23 | 19 | 14 | 5 |
