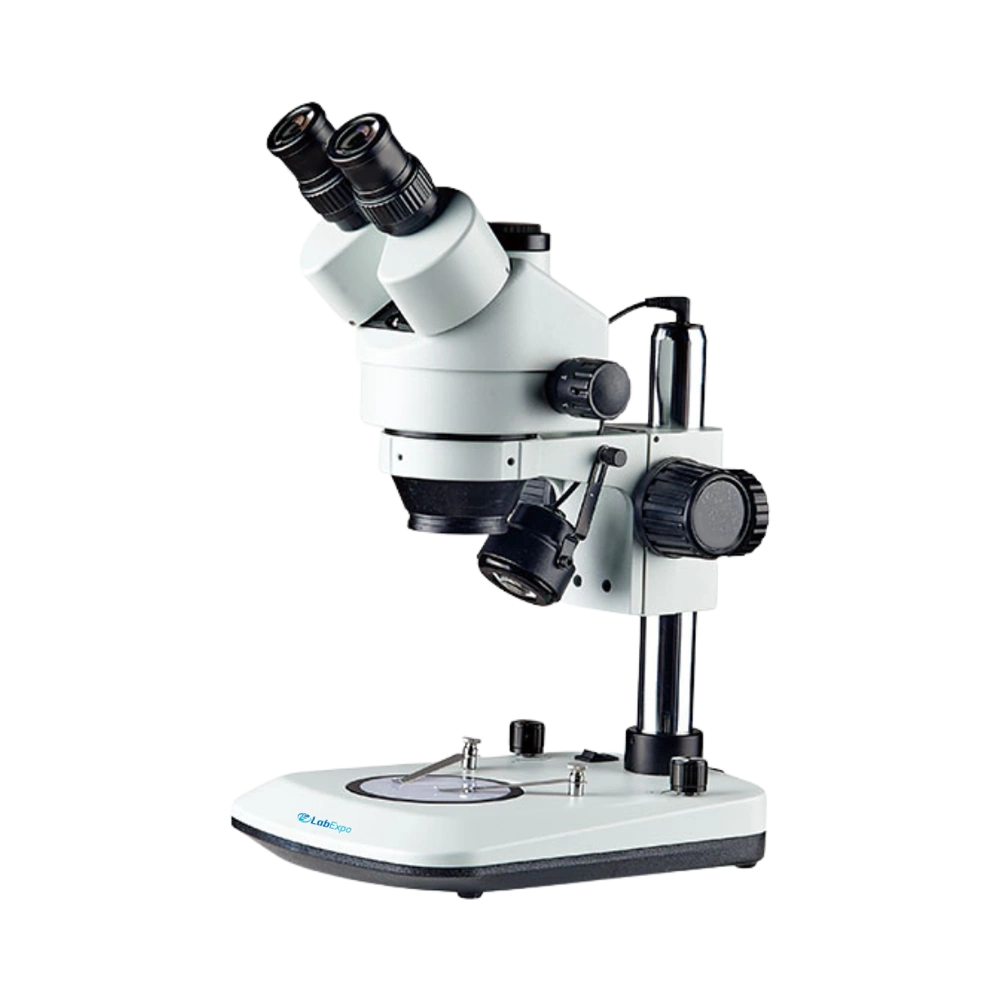

Lab Expo Stereo Microscope LE-SM105 has advanced viewing capabilities with a trinocular head that supports digital imaging integration. Equipped with a high-quality, fully coated optical system, it delivers sharp, high-resolution images. Integrated magnification ranging from 3.5X to 270X ensures flexibility for close examination of fine details. Incorporated super wide high eye point WF10X/20mm eyepieces provide comfortable viewing. Our Stereo Microscope is widely used in electronic industry, educational demonstration and agricultural research.
FunctionImplementationElectronic component inspection7X to 45X magnification enables detailed circuit board analysisQuality control laboratories100mm working distance allows manipulation of samples during observationResearch facility documentationTrinocular head with vertical phototube supports camera integration for imagingIndustrial assembly verification3.5 to 270X magnification range accommodates varied specimen sizesClinical sample examination±5 diopter adjustment ensures operator-specific focus customization
| Head | Trinocular |
| Magnification | 7X to 45X, 3.5 to 270X with optional lens |
| Working Distance | 100mm, 30 to 287mm with optional lens |
| Eyepiece | 10X/20mm |
| Zoom Range | 0.7X to 4.5X |
| Zoom Ratio | 6.4:1 |
| Objective | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X |
| Diopter Adjustment | ±5 diopters |
| Interpupillary Distance | 54 to 76mm |
| Trinocular Body | 0%/100%, 50%/50%, 20%/80%, with a Vertical Phototube |
| Focusing Mount | A1 Focusing Bracket, Handwheel's Tightness is Adjustable, Lifting Range 50mm |
| Base | CB1 Base |
| Illumination | Fluorescent Lamp, LED Ring Light, for More Option |
| Trinocular Interface | Fit with Three-Eye Pole and CTV, It Can Be Connected with Ordinary Camera, Digital Camera, Industrial Camera and CCD |
