Vertical Autoclave LE-VA502 Catalog

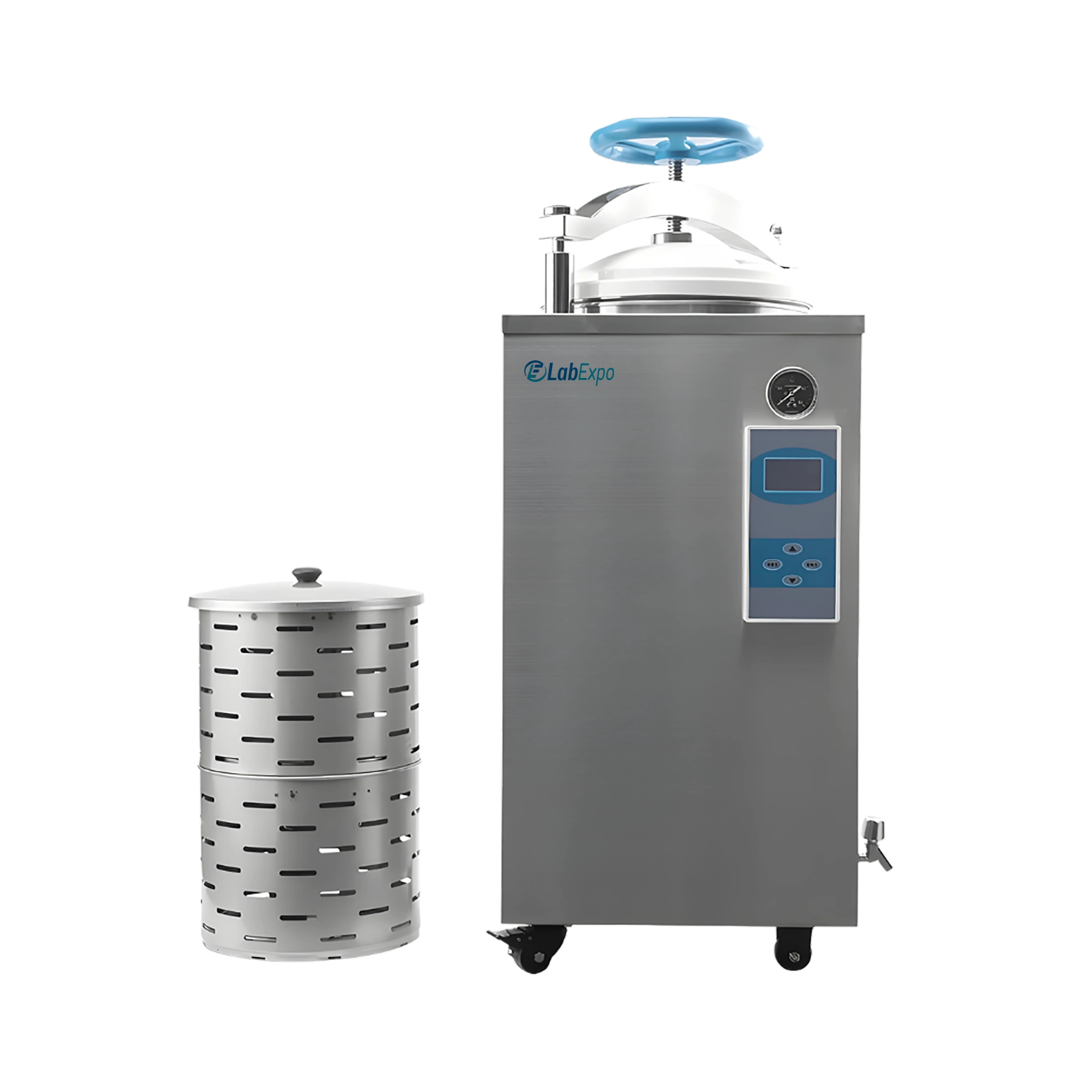

Vertical Autoclave LE-VA502

Overview :

Vertical Autoclave LE-VA502 comes with precise temperature range of 105℃ to 134℃ to deliver accurate sterilization operation. It features a maximum operating pressure of 0.23 Mpa for consistent performance. Equipped with a microprocessor control system, ensuring high-performance laboratory workflow. Built with high-quality stainless steel to resist corrosion. Our Vertical Autoclave is an ideal solution for mid-volume laboratory works in research labs, clinics, and educational facilities.

Features:

User-friendly compact design with water-lack protection
Over-temperature safety protection mechanism
Stainless steel chamber with hand-wheel lid operation
Digital control interface for clear monitoring
Integrated automatic cycle shut-off control

Applications:

FunctionImplementationHospitals & clinicsSteam sterilization of surgical instruments & toolsScientific research labsSterilizing glassware & culture mediaEducational institutionsTreating experimental equipmentHealthcare facilitiesDecontamination of reusable devicesSterile processing departmentsRoutine steam sterilization work

Specifications:

Sterilizing Capacity	50 L
Max. Working Temperature	134 ℃
Max. Operating Pressure	0.23 Mpa
Operating Pressure	0.22 Mpa
Temperature Control Range	105 to 134 ℃
Timer Range	0 to 99 minutes
Heating Average	≤ ±1 ℃
Power Consumption	2 × 2.5 KW
Dimension	520 × 490 × 1150 mm
Transport Dimension	580 × 580 × 1250 mm
Packaged Volume	0.42 CBM
Net Weight	74 Kg
Gross weight	94 Kg

Optional Accessories:

Printer function

Drying function

Seal
