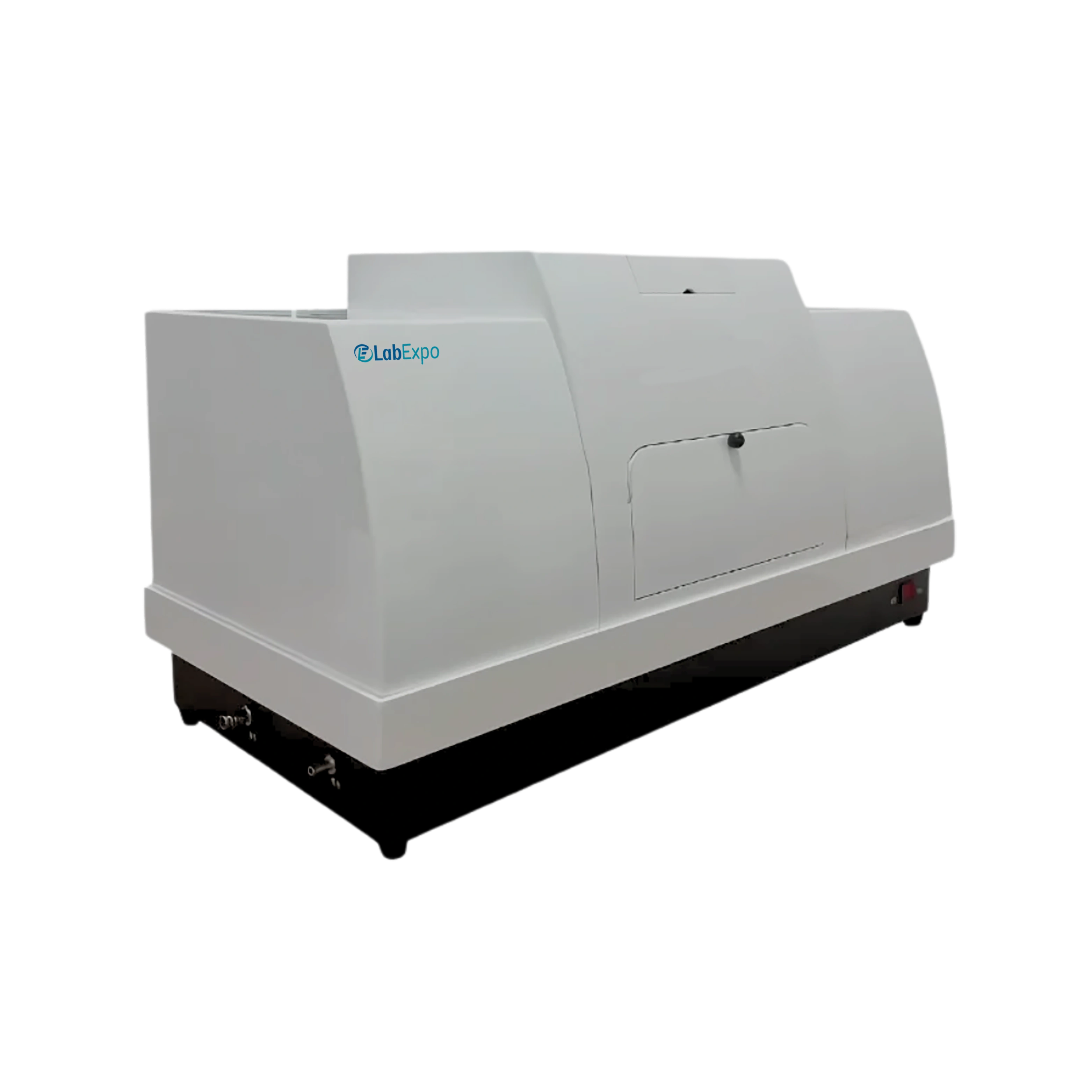

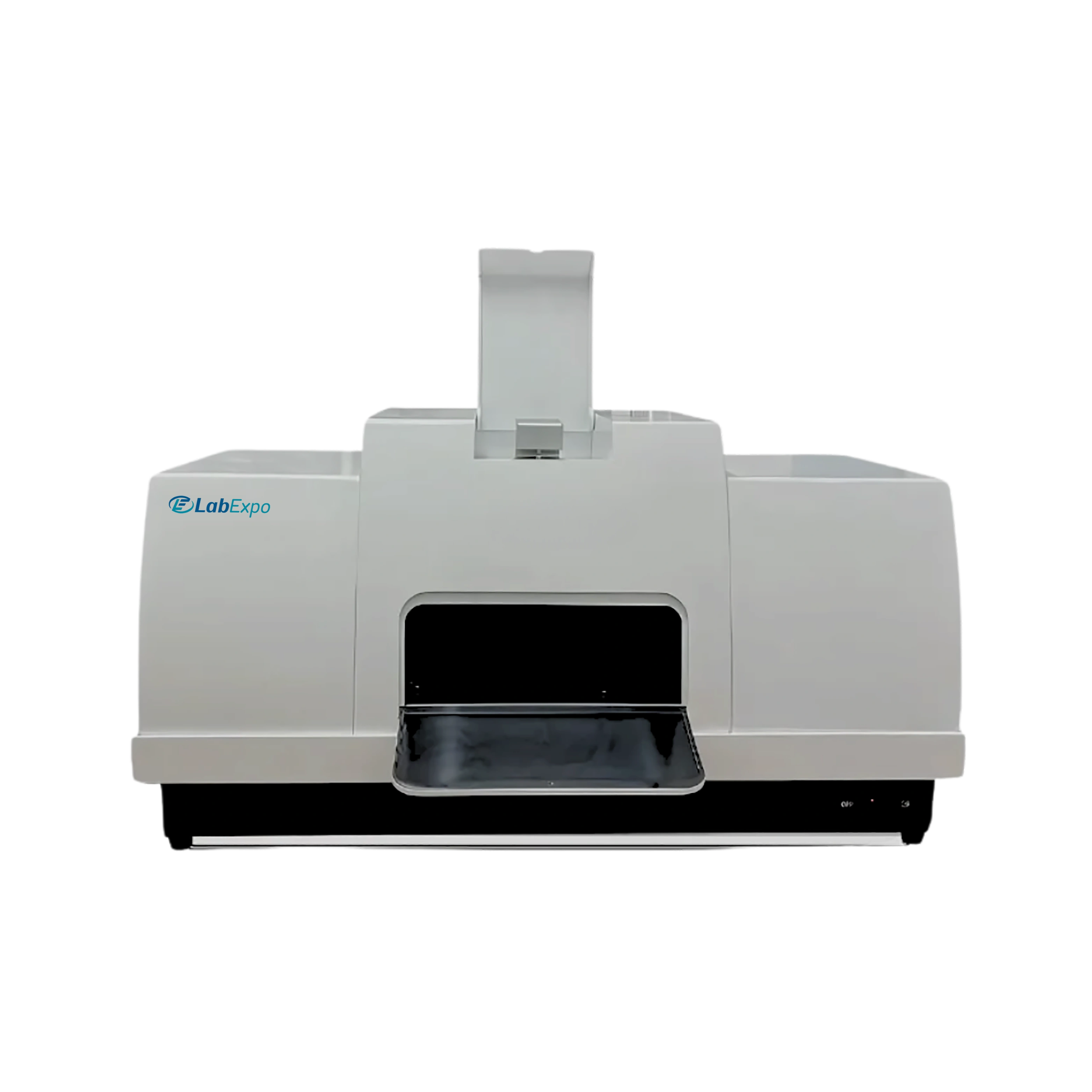

Lab Expo Laser Particle Size Analyzer 50-LPA100 is a fully automatic cost effective and efficient particle size analyzer capable of measuring suspension, emulsion and powders. It uses laser diffraction measurement principle for measuring over the 0.1 μm to 300 μm particle size range for wet dispersion and is also well equipped with highly sensitive ring photoelectric detector which improves test accuracy.
$22,896.00 $ 19080
| Measuring range | 0.1 μm - 300 μm |
| Principle | Laser light scattering |
| Test speed | < 2 min |
| Dispersion type | Wet |
| Executive standard | ISO13320-1:1999 |
| Analysis | Mie & Fraunhofer technique |
| Sample type | Suspension, emulsion, powders |
| Light source | High performance He-Ne Laser,632.8 nm |
| Operation mode | Full automatic software control |
| Detector | Ring photoelectric detector |
| Detector channels no. | 96 pcs. |
| Built-in ultrasonic function | Frequency: 40 kHz Power: 35 W Time: ≥ 1 s |
| Agitator Revolutions Speed | 0-300 rpm (Adjustable) |
| Circulate rated flow | 8 l/min |
| Circulate rated power | 10 W |
| Light path alignment system | Fully automatic |
| Accuracy | < 1% |
| Repeatability | < 1 % |
| Sample tank volume | 350 ml |
| Sample cuvette | 10 ml (optional) |
| Software running | Win XP/Win7 |
| Dimension (L x W x H) | 880 × 390 × 460 mm |
| Weight | 44 kg |
Function Implementation Quality control labs 0.1 μm - 300 μm measuring range supports precise particle sizing Research laboratories < 2 min test speed enables rapid sample throughput Industrial testing facilities 96 detector channels enhance resolution for complex suspensions Clinical analysis units Repeatability < 1% ensures consistent emulsion characterization Pharmaceutical R&D centers Agitator speed 0-300 rpm adjustable optimizes powder dispersion
Laser Particle Size Analyzer units are designed for particle size distribution analysis using laser diffraction and laser scattering technology in wet and dry dispersion workflows. The range includes laser diffraction particle size analyzer systems with measurement ranges from 0.01 μm to 2000 μm, detector configurations up to 120 channels, and analysis speeds below 2 minutes. Models integrate ultrasonic dispersion, single or double laser light scattering principles, and high-accuracy D50 measurement for powder, chemical, pharmaceutical, and material characterization applications requiring a laser scattering particle size analyzer.
