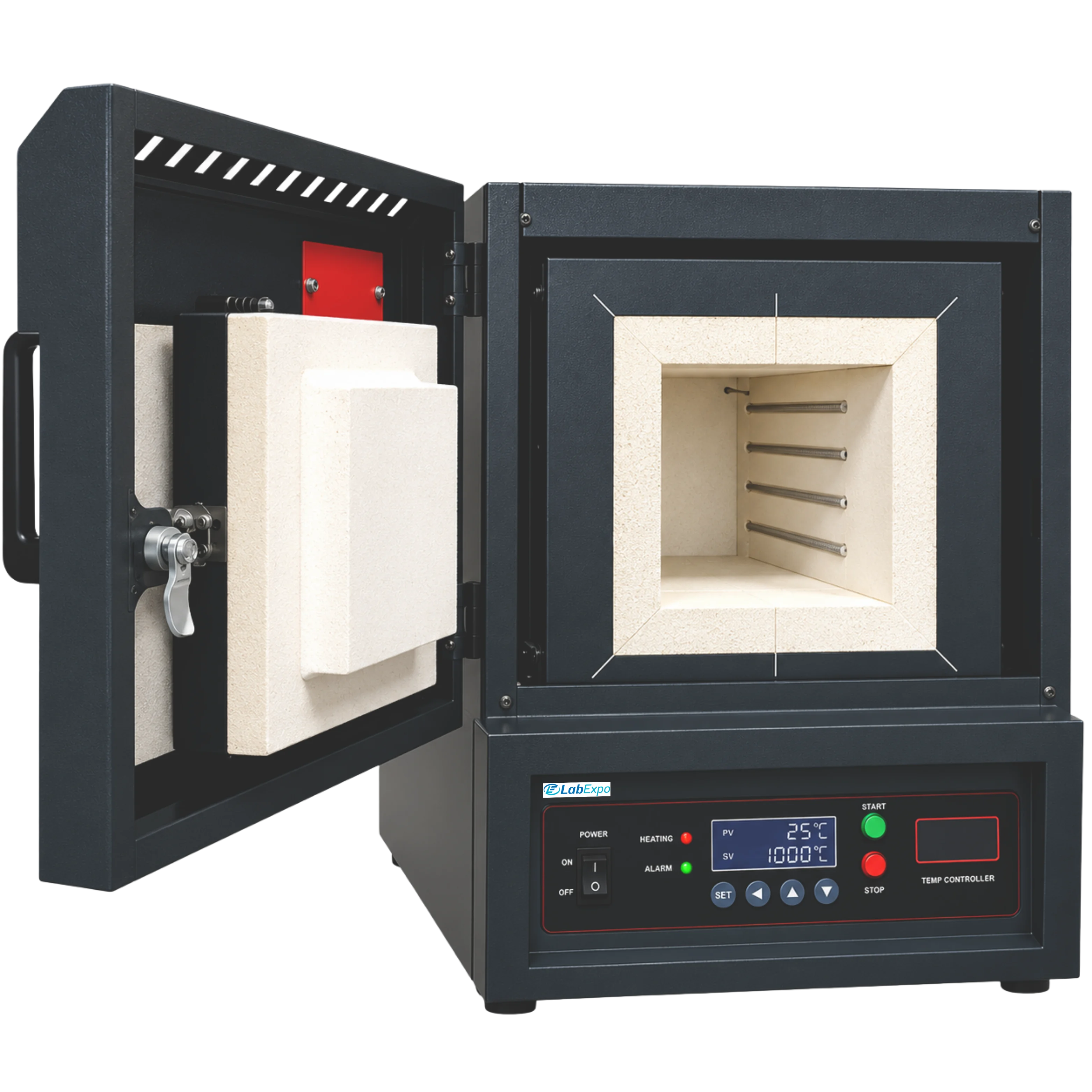

Lab Expo Muffle Furnace 04A-MFF224 is a microprocessor controlled furnace with steel sheet housing material and is efficiently designed for minimal space requirement in the laboratory. With heating elements such as Fe-Cr-Al embedded into bricks, K and S type thermocouple and optimum insulation properties, it is ideal for maximum or continuous working temperature of 1100 °C. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature and descriptive error indicator.
$16,171.00 $ 13476
| Max. Temperature | 1100 °C |
| Capacity | 100 L |
| Heating Program | 2 step |
| Thermal Rate | 3 °C - 20 °C |
| Heating element | Fe-Cr-Al |
| Program Memories | 2 |
| Thermocouple Type | K Type |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Element Heating Element Protection | Quartz Tube |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ± 1 °C |
| Inner Volume Temperature Homogenity | ± 10 °C |
| Max. Current | 3 x 21 A |
| Power | 14.000 W |
| Inner Chamber Dimension (W x H x D) | 460 x 365 x 595 mm |
| Product Outer Dimension (W x H x D) | 756 x 833 x 990 mm |
| Gross Dimension (W x H x D) | 816x 1150 x 893 mm |
| Net Weight | 160 kg |
| Gross weight | 190 kg |
Function Implementation Thermal analysis labs ±1°C accuracy supports precise temperature measurement Material testing facilities 14000 W enables rapid heating to 1100°C Quality control environments ±10°C inner volume homogeneity ensures uniform sample processing Research laboratories 2 program memories allow storage of custom heating cycles Industrial sintering operations Fe-Cr-Al elements embedded in brick walls provide durable high-temperature performance
Lab Expo 1100C Muffle Furnaces are structured around high-density insulation and stable heating elements to sustain uniform high-temperature processing. This laboratory furnace supports operation up to 1100 C with controlled heat-up profiles and consistent chamber distribution. Digital temperature regulation, thermal-shock–resistant chambers, and over-temperature protection ensure repeatable ashing, heat treatment, and material testing for research and industrial laboratory workflows.
