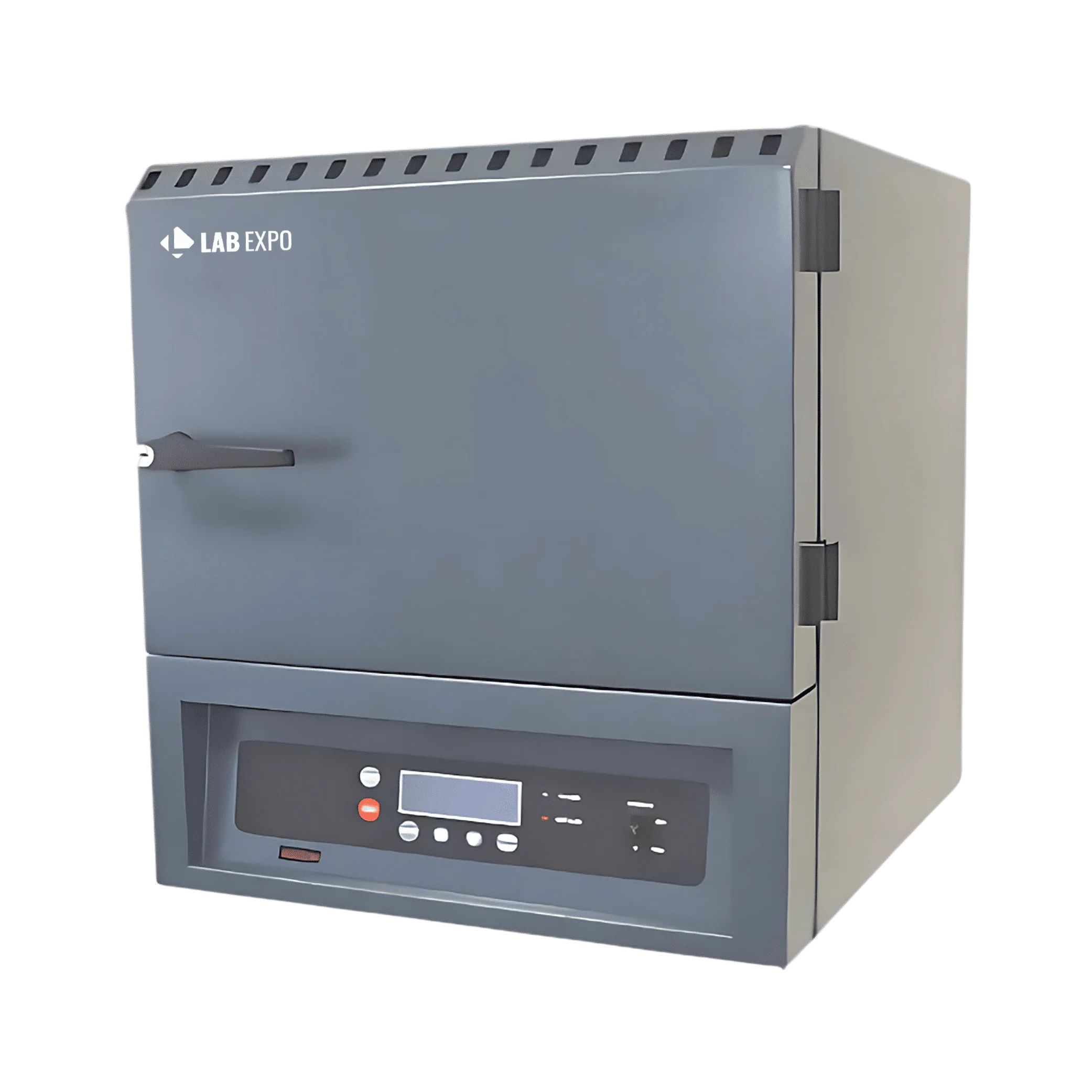

Lab Expo Muffle Furnace 04A-MFF606 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1400 °C.
$10,687.00 $ 8906
| Max. Temperature | 1400 °C |
| Capacity | 9 L |
| Heating Program | 4 step |
| Thermal Rate | 3 °C - 20 °C |
| Heating element | SiC (Silicon Carbide) |
| Program Memories | 4 |
| Thermocouple Type | S Type |
| Display | 4 x 20" LCD |
| Heating Element Placement | Horizontally aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ± 1 °C |
| Inner Volume Temperature Homogenity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Max. Current | 2 x 19 A |
| Power | 8.200 W |
| Inner Chamber Dimension (W x H x D) | 200 x 180 x 300 mm |
| Product Outer Dimension (W x H x D) | 570 x 646 x 634 mm |
| Gross Dimension (W x H x D) | 630 x 706 x 894 mm |
| Net Weight | 66 kg |
| Gross weight | 87 kg |
Function Implementation High-temperature ashing 1400 °C supports material combustion analysis Multi-step thermal programs 4 step controls complex heating sequences Precision temperature control ± 1 °C ensures repeatable analytical results Compact laboratory spaces Inner chamber 200 x 180 x 300 mm fits benchtop use Continuous operation monitoring Show Remaining Waiting Time enables process tracking
Lab Expo 1400C Muffle Furnaces are structured around high-grade refractory insulation and precision-controlled heating to sustain uniform operation at extreme temperatures. This lab furnace supports stable processing up to 1400 C with intelligent digital regulation for accurate ramping and holding profiles. Fast heat-up capability, insulated safety build, and thermal cutoff protection ensure repeatable sintering, materials testing, and high-temperature research across laboratory and industrial workflows.
