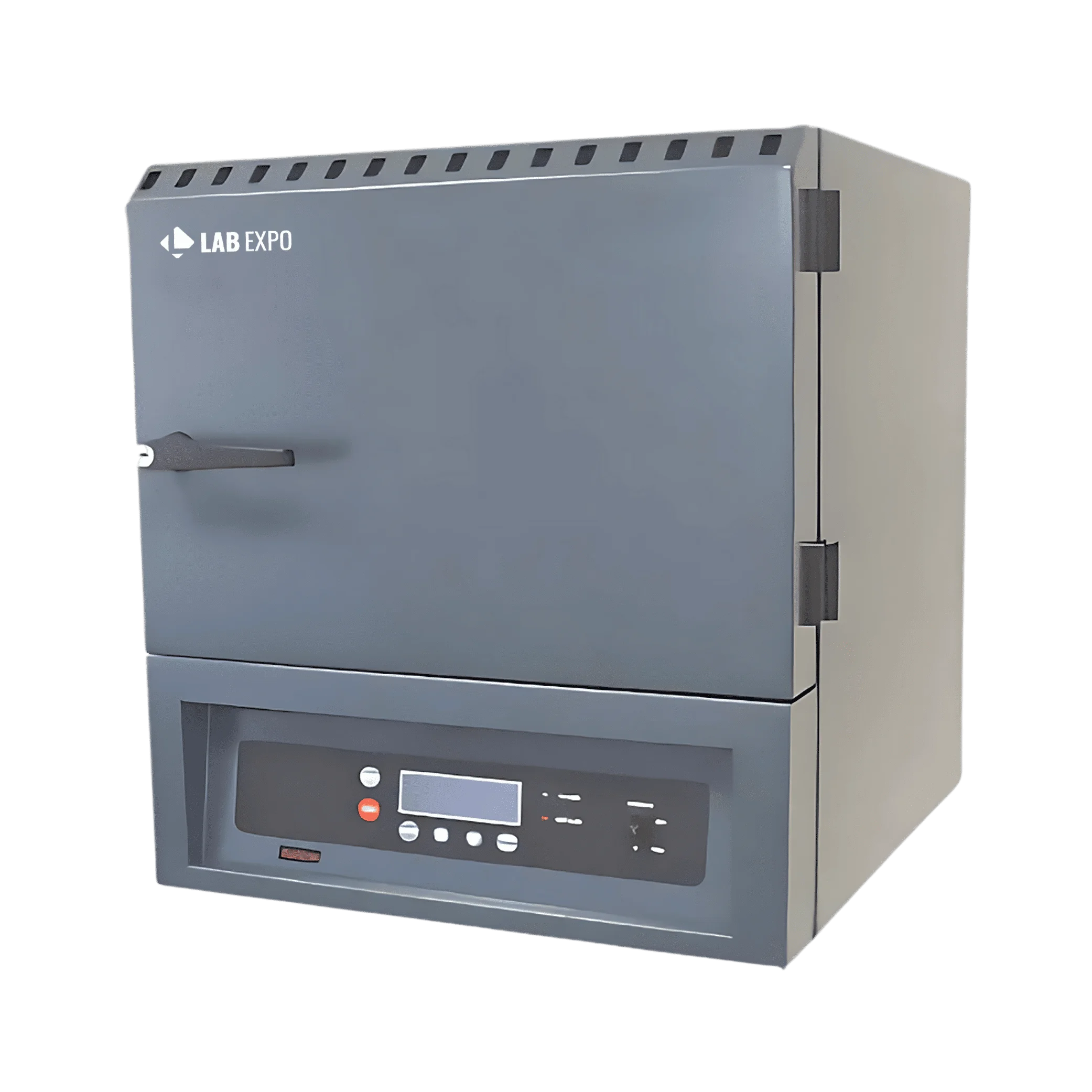

Muffle Furnace 04A-MFF609

Lab Expo Muffle Furnace 04A-MFF609 has a unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1400 °C.

$12,226.00 $ 10188

Specifications

Max. Temperature 1400 °C
Capacity 16 L
Heating Program 4 step
Thermal Rate 3 °C - 20 °C
Heating element SiC (Silicon Carbide)
Program Memories 4
Thermocouple Type S Type
Display 4 x 20" LCD
Heating Element Placement Horizontally aligned next to the side walls
Inner Insulation Material Ceramic Fibre Board
Front Face Insulation Material Insulating Fire Brick
Door Insulation Material Ceramic Fibre Board
Housing Material Steel Sheet
Housing Coating Epoxy powder coating
Chimney Standard without fan
Lockable Door Handle Sidewards
Temperature Control Accuracy ± 1 °C (can vary at low temperatures)
Measurement Accuracy ± 1 °C
Inner Volume Temperature Homogenity ± 10 °C
Auto Start at Certain Date Yes
Show Remaining Waiting Time Yes
Skip the Waiting Step Yes
Burst Heating Mode Yes
Max. Current 3 x 13 A
Power 6.800 W
Inner Chamber Dimension (W x H x D) 250 x 200 x 320 mm
Product Outer Dimension (W x H x D) 620 x 676 x 789 mm
Gross Dimension (W x H x D) 670 x 726 x 864 mm
Net Weight 78 kg
Gross weight 103 kg

Features

  • PID controller with 0.1C resolution
  • 4 x 20 LCD display showing current and target temperature
  • Optimum insulation properties with ceramic fibre board lining
  • 4 step heating program available for controlled ramping
  • SiC heating elements horizontally aligned next to side walls
  • Accurate temperature measurement using S type thermocouple sensor

Applications

FunctionImplementation
Thermal processing labs1400 °C enables high-temperature material analysis
Quality control testing± 1 °C accuracy supports repeatable analytical results
Research sample preparation16 L capacity accommodates batch processing needs
Industrial sintering applications6.800 W powers controlled heating cycles
Laboratory workflow integration4 program memories store recurrent thermal profiles

Optional Features

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Spare Parts

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan

Catalog

Muffle Furnace 04A-MFF609 Catalog

Related Models Of 1400°C Muffle Furnace

Lab Expo 1400C Muffle Furnaces are structured around high-grade refractory insulation and precision-controlled heating to sustain uniform operation at extreme temperatures. This lab furnace supports stable processing up to 1400 C with intelligent digital regulation for accurate ramping and holding profiles. Fast heat-up capability, insulated safety build, and thermal cutoff protection ensure repeatable sintering, materials testing, and high-temperature research across laboratory and industrial workflows.
