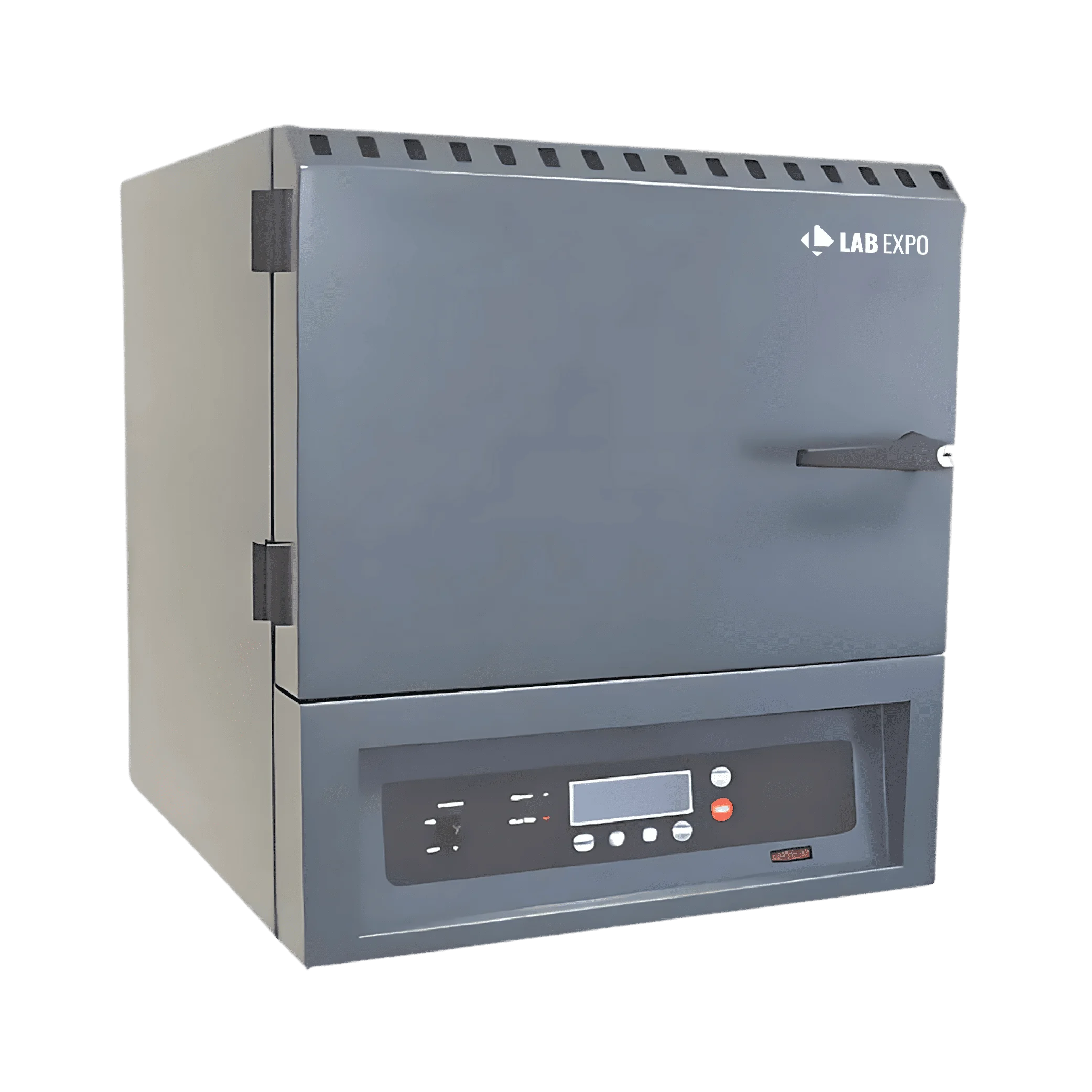

Muffle Furnace 04A-MFF703

Name: Muffle Furnace 04A-MFF703
Brand: Labexpo
SKU: 04A-MFF703
Rating: 4.7 (891 reviews)

Lab Expo Muffle Furnace 04A-MFF703 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and are ideal for maximum and continuous working temperature of 1500 °C.

$9,691.00 $ 8076

Muffle Furnace 04A-MFF703 - Specifications

Max. Temperature	1500 °C
Capacity	6 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	SiC (Silicon Carbide)
Program Memories	4
Thermocouple Type	S Type
Display	4 x 20" LCD
Heating Element Placement	Horizontally aligned next to the side walls
Inner Insulation Material	Ceramic Fibre Board
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard without fan
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Auto Start at Certain Date	Yes
Show Remaining Waiting Time	Yes
Skip the Waiting Step	Yes
Burst Heating Mode	Yes
Max. Current	2 x 14 A
Power	6.100 W
Inner Chamber Dimension (W x H x D)	180 x 160 x 260 mm
Product Outer Dimension (W x H x D)	545 x 636 x 684 mm
Gross Dimension (W x H x D)	605 x 696 x 844 mm
Net Weight	56 kg
Gross weight	75 kg

Muffle Furnace 04A-MFF703 - Key Features

4 step heating program with SiC elements horizontally aligned next to side walls
S type thermocouple ensuring ±1C measurement accuracy
High quality light insulating bricks lining inner chamber for durability
Dual shell steel housing maintaining low outer surface temperature
Current limit control preventing electrical overload during operation

Muffle Furnace 04A-MFF703 - Applications

Function	Implementation
Laboratory ashing applications	6 L capacity supports sample processing in controlled environments
High-temperature sintering processes	1500 °C max temperature enables material densification
Multi-cycle thermal programs	4 program memories store distinct heating sequences
Precision analytical testing	±1 °C accuracy ensures repeatable measurement results
Continuous operation workflows	Auto start at certain date allows scheduled furnace activation

Muffle Furnace 04A-MFF703 - Optional Features

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Muffle Furnace 04A-MFF703 - Spare Parts

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan

Muffle Furnace 04A-MFF703 - Catalog

Muffle Furnace 04A-MFF703 Catalog
