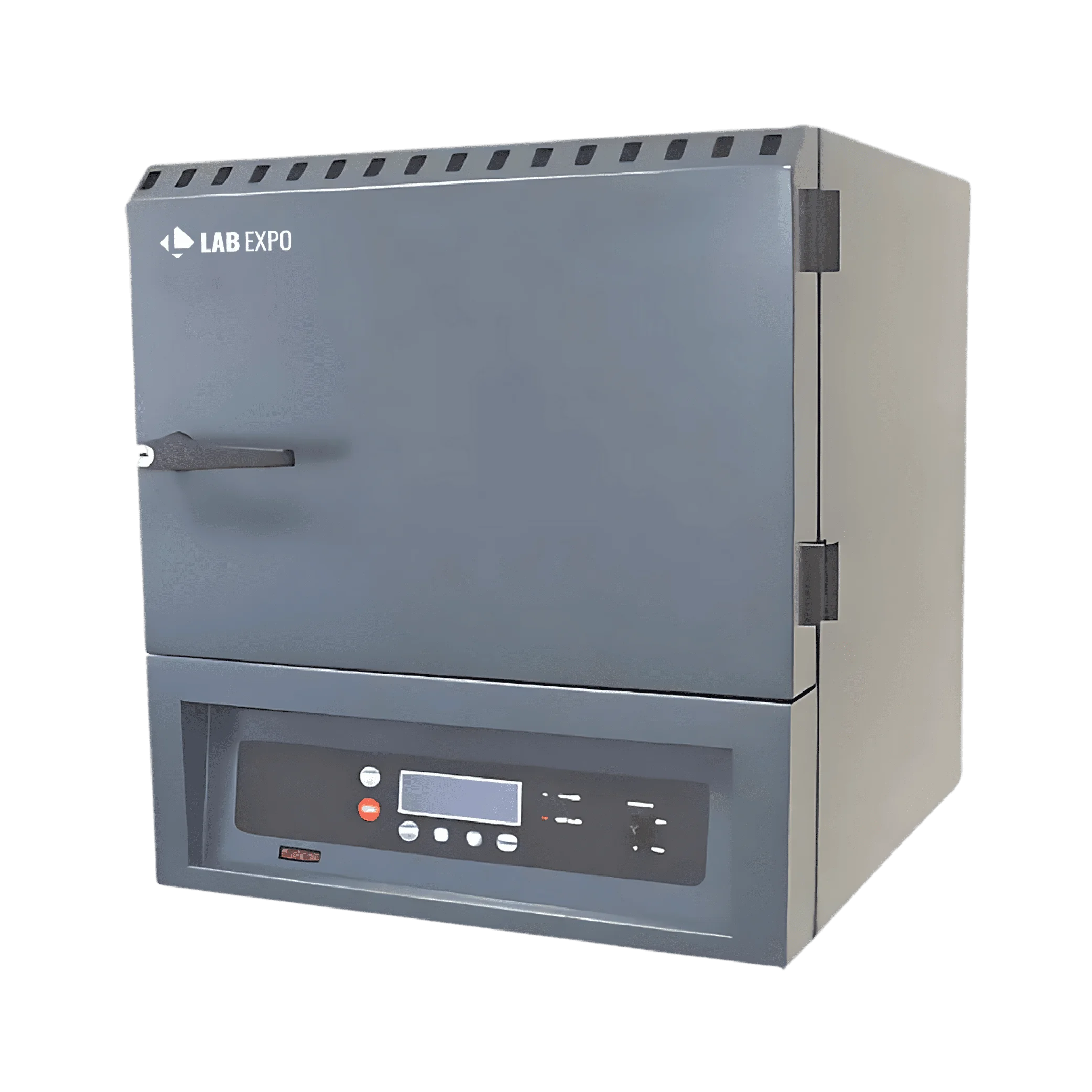

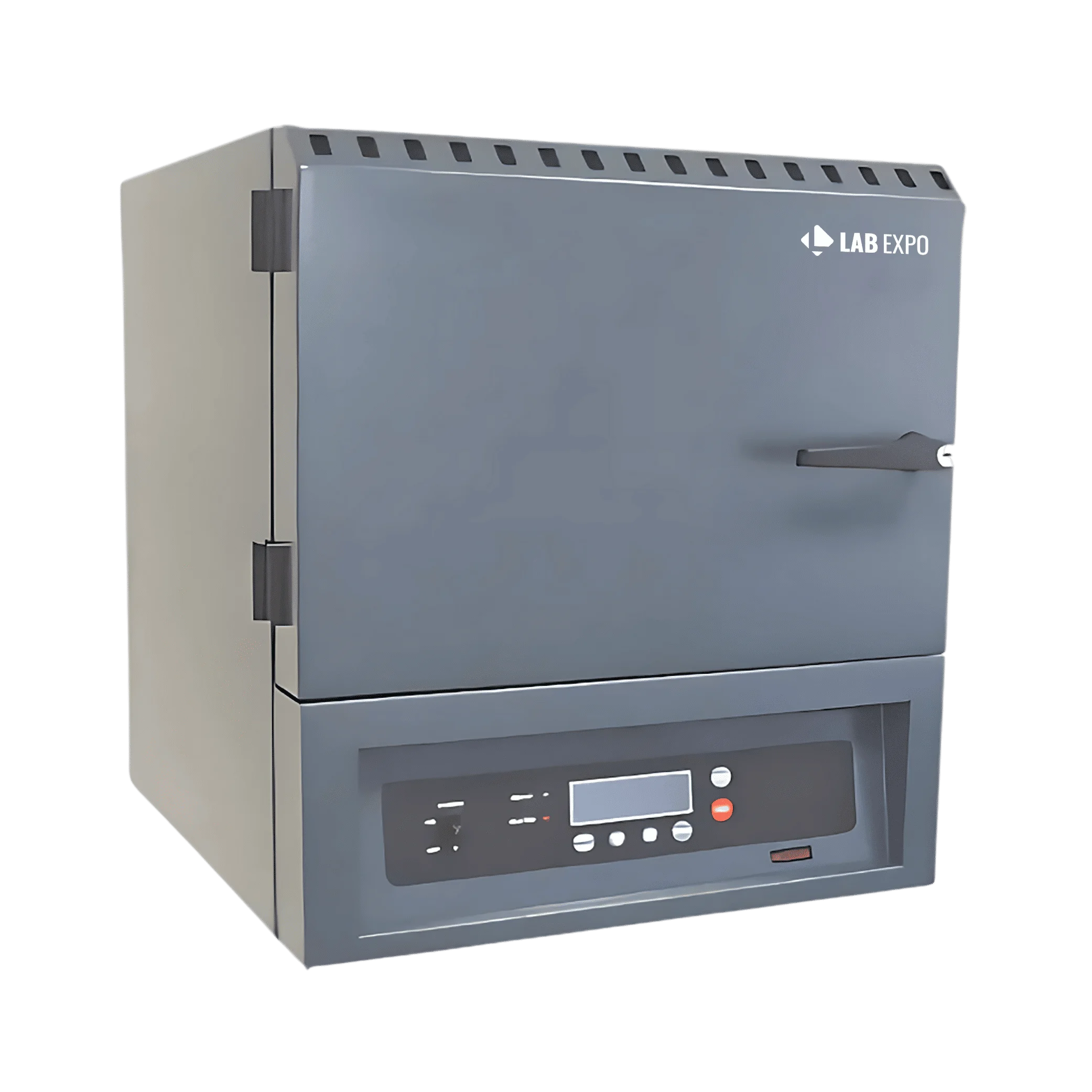

Lab Expo Muffle Furnace 04A-MFF712 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and are ideal for maximum and continuous working temperature of 1500 °C.
$14,558.00 $ 12132
| Max. Temperature | 1500 °C |
| Capacity | 30 L |
| Heating Program | 4 step |
| Thermal Rate | 3 °C - 20 °C |
| Heating element | SiC (Silicon Carbide) |
| Program Memories | 4 |
| Thermocouple Type | S Type |
| Display | 4 x 20" LCD |
| Heating Element Placement | Horizontally aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ± 1 °C |
| Inner Volume Temperature Homogenity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Max. Current | 3 x 21 A |
| Power | 11.200 W |
| Inner Chamber Dimension (W x H x D) | 300 x 250 x 395 mm |
| Product Outer Dimension (W x H x D) | 670 x 726 x 864 mm |
| Gross Dimension (W x H x D) | 730 x 786 x 1024 mm |
| Net Weight | 91 kg |
| Gross weight | 120 kg |
Function Implementation Quality control testing 1500 °C enables high-temperature material analysis Research sample preparation ±1 °C accuracy supports precise thermal processing Clinical lab ashing 30 L capacity accommodates standard batch sizes Industrial sintering trials 4 step program controls multi-phase heating cycles Pharmaceutical validation S type thermocouple ensures measurement traceability
Lab Expo 1500C Muffle Furnaces are structured around ceramic fiber–insulated chambers and precision microprocessor regulation to sustain stable operation at ultra-high temperatures. This lab furnace supports controlled processing up to 1500 C with uniform heat distribution and accurate ramp–soak profiling. Reinforced chamber build, fast-response heating elements, safety interlocks, and over-temperature protection ensure repeatable sintering, advanced materials testing, and high-temperature research across laboratory and industrial R&D workflows.
