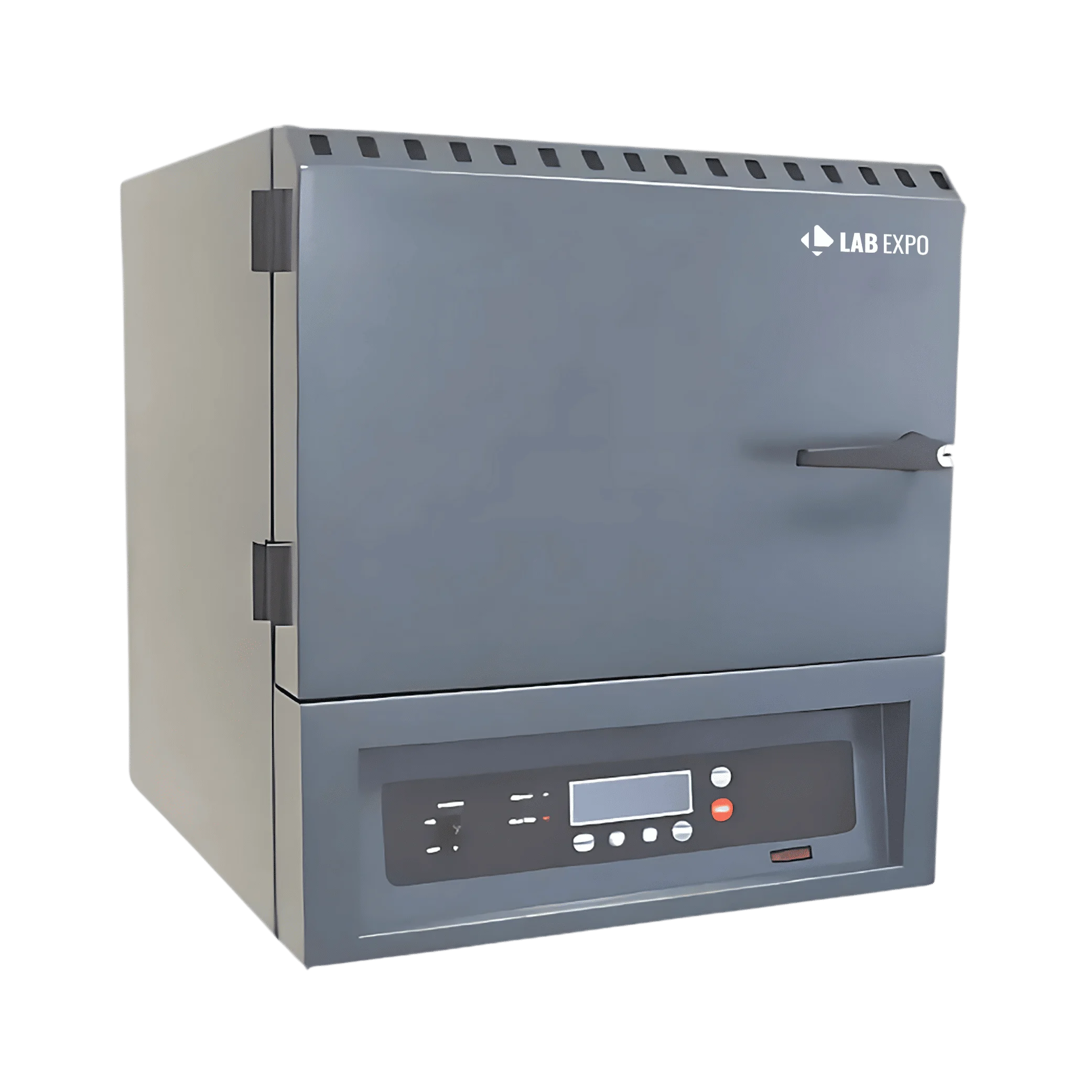

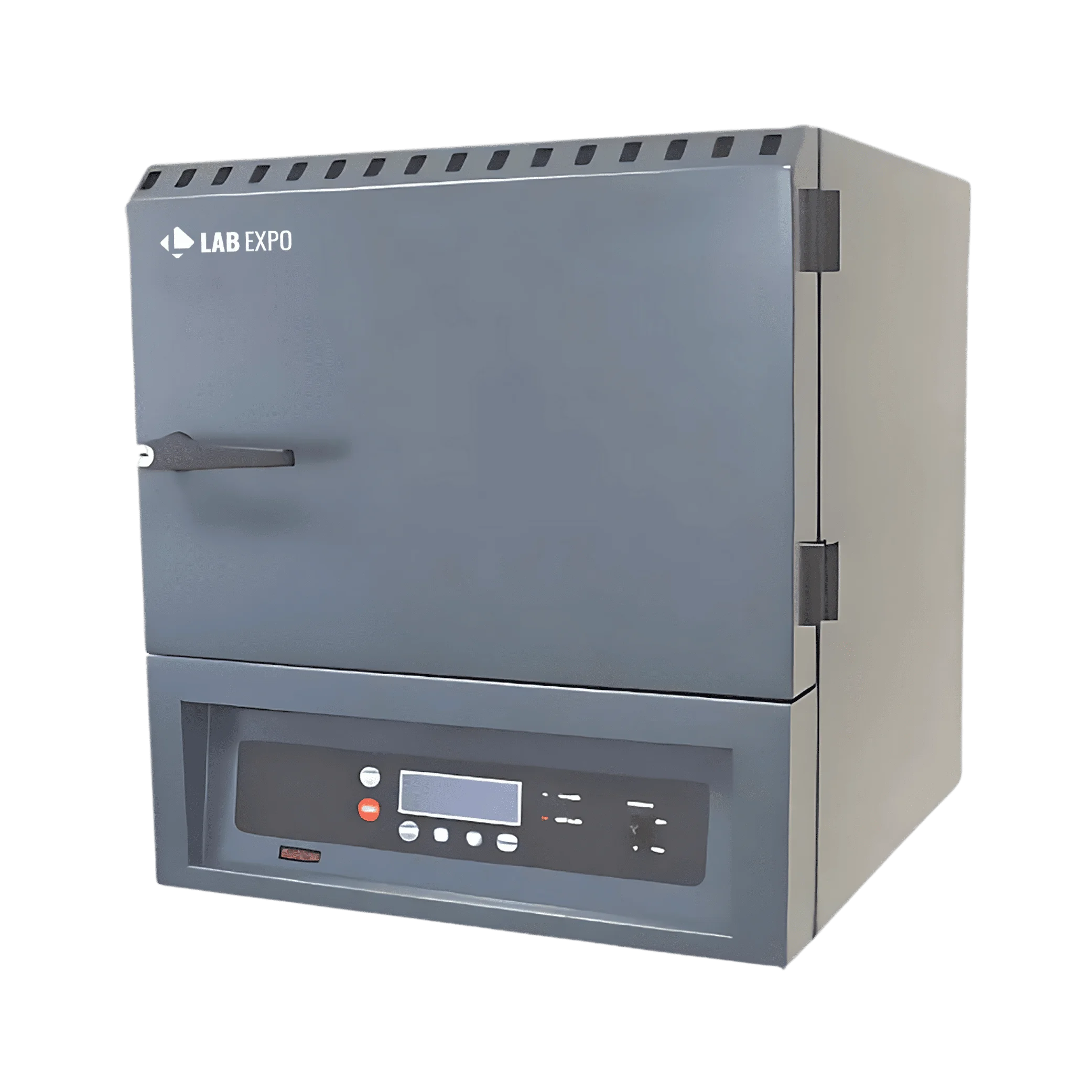

Muffle Furnace 04A-MFF715

Name: Muffle Furnace 04A-MFF715
Brand: Labexpo
SKU: 04A-MFF715
Rating: 4.4 (827 reviews)

Lab Expo Muffle Furnace 04A-MFF715 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and are ideal for maximum and continuous working temperature of 1500 °C.

$19,670.00 $ 16392

Muffle Furnace 04A-MFF715 - Specifications

Max. Temperature	1500 °C
Capacity	60 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	SiC (Silicon Carbide)
Program Memories	4
Thermocouple Type	S Type
Display	4 x 20" LCD
Heating Element Placement	Horizontally aligned next to the side walls
Inner Insulation Material	Ceramic Fibre Board
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard without fan
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Auto Start at Certain Date	Yes
Show Remaining Waiting Time	Yes
Skip the Waiting Step	Yes
Burst Heating Mode	Yes
Max. Current	3 x 26 A
Power	14 x 200 W
Inner Chamber Dimension (W x H x D)	400 x 300 x 495 mm
Product Outer Dimension (W x H x D)	770 x 776 x 964 mm
Gross Dimension (W x H x D)	830 x 836 x 1124 mm
Net Weight	100 kg
Gross weight	136 kg

Muffle Furnace 04A-MFF715 - Key Features

Four-step heating program capability for process flexibility
Silicon carbide heating elements horizontally aligned to side walls
S-type thermocouple ensuring ±1C measurement accuracy
High cold start heating rate achieving rapid thermal response
Phase angle firing method reducing SiC element aging effects

Muffle Furnace 04A-MFF715 - Applications

Function	Implementation
Ashing procedures	±1°C accuracy supports repeatable ashing results
Material sintering	1500 °C max temperature enables high-temperature sintering
Thermal analysis labs	60 L capacity accommodates standard crucible loads
Quality control testing	4-step heating program controls precise thermal cycles
Research applications	±10 °C inner volume homogeneity ensures uniform heating

Muffle Furnace 04A-MFF715 - Optional Features

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Muffle Furnace 04A-MFF715 - Spare Parts

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan

Muffle Furnace 04A-MFF715 - Catalog

Muffle Furnace 04A-MFF715 Catalog
