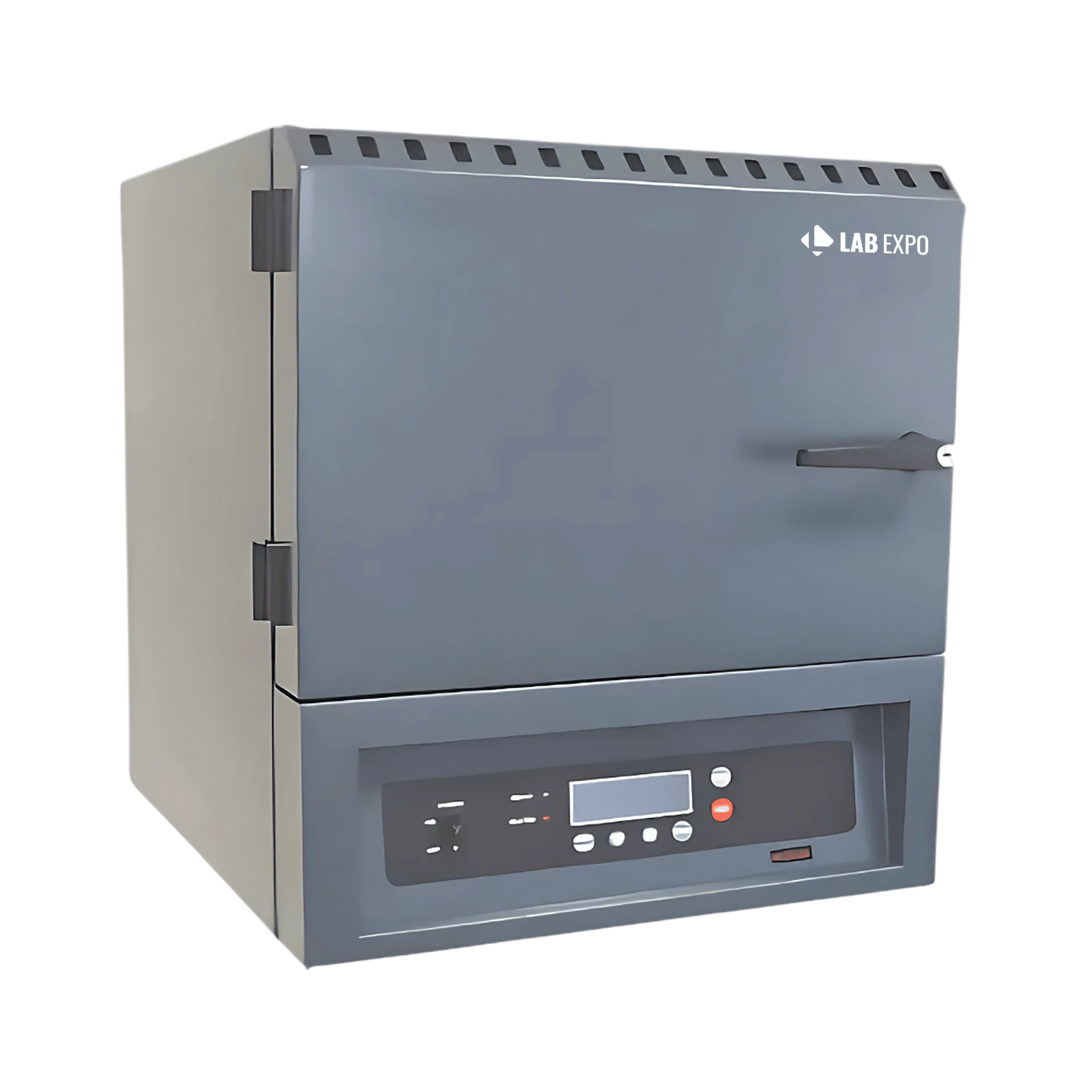

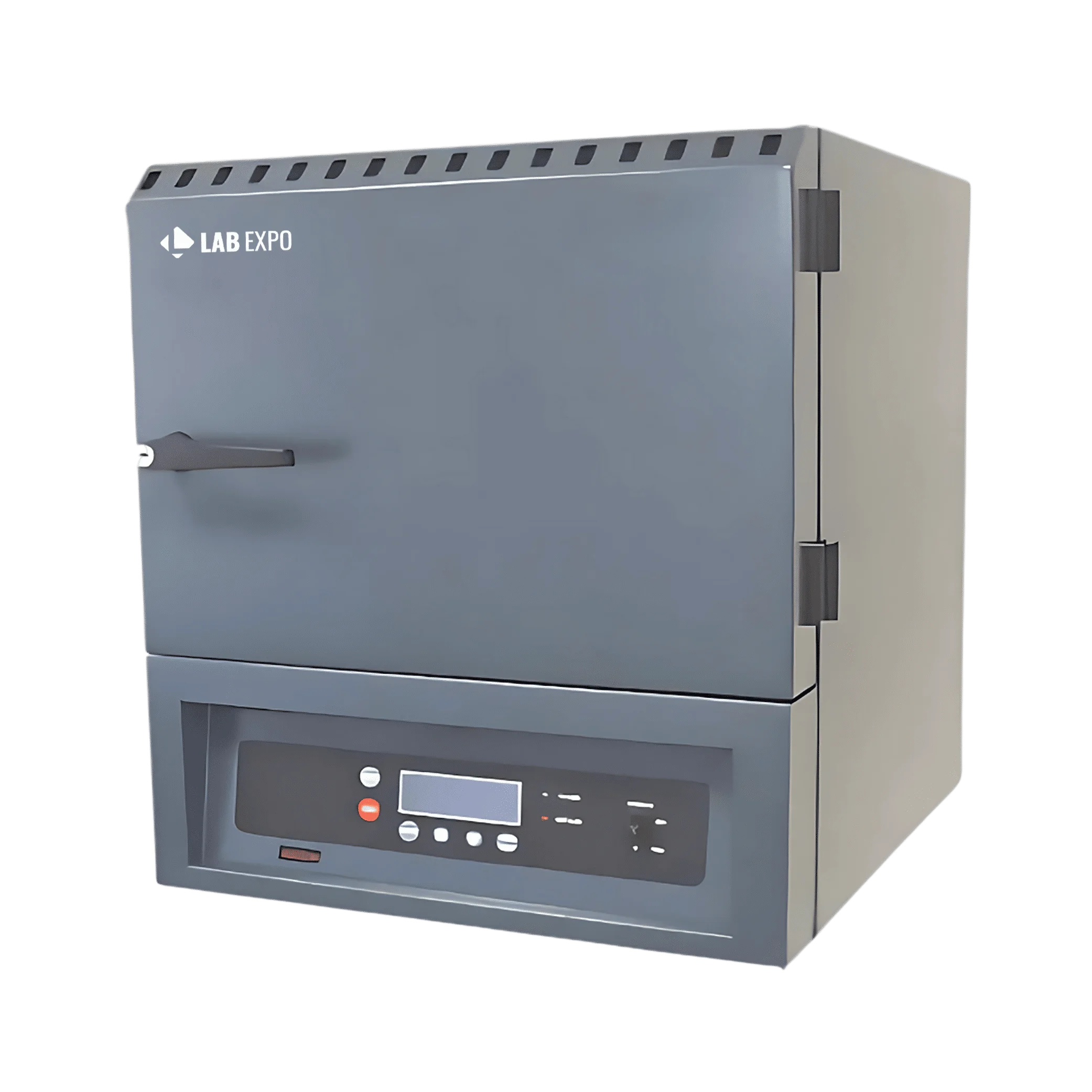

Muffle Furnace 04A-MFF800

Name: Muffle Furnace 04A-MFF800
Brand: Labexpo
SKU: 04A-MFF800
Rating: 4.8 (968 reviews)

Lab Expo Muffle Furnace 04A-MFF800 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1550 °C.

$9,226.00 $ 7688

Muffle Furnace 04A-MFF800 - Specifications

Max. Temperature	1550 °C
Capacity	3 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	SiC (Silicon Carbide)
Program Memories	4
Thermocouple Type	S Type
Display	4 x 20" LCD
Heating Element Placement	Horizontally aligned next to the side walls
Inner Insulation Material	Ceramic Fibre Board
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard without fan
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Auto Start at Certain Date	Yes
Show Remaining Waiting Time	Yes
Skip the Waiting Step	Yes
Burst Heating Mode	Yes
Max. Current	2 x 11 A
Power	4.800 W
Inner Chamber Dimension (W x H x D)	140 x 130 x 165 mm
Product Outer Dimension (W x H x D)	494 x 606 x 634 mm
Gross Dimension (W x H x D)	554 x 666 x 794 mm
Net Weight	48 kg
Gross weight	64 kg

Muffle Furnace 04A-MFF800 - Key Features

4 step heating programs available for precise thermal cycling
SiC heating elements horizontally aligned next to side walls
Accurate temperature measurement using S type thermocouple sensor
Durable inside lining of high quality insulating bricks and ceramic fibre board
Dual shell housing maintaining low outer surface temperature during operation

Muffle Furnace 04A-MFF800 - Applications

Function	Implementation
Material ashing labs	1550 °C enables complete organic residue removal
Thermal analysis workflows	±1°C accuracy supports repeatable test results
Sample sintering processes	4800 W powers controlled densification cycles
Laboratory quality control	4-step program manages standardized heating sequences
Research material testing	3 L capacity accommodates batch specimen processing

Muffle Furnace 04A-MFF800 - Optional Features

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Muffle Furnace 04A-MFF800 - Spare Parts

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan

Muffle Furnace 04A-MFF800 - Catalog

Muffle Furnace 04A-MFF800 Catalog
