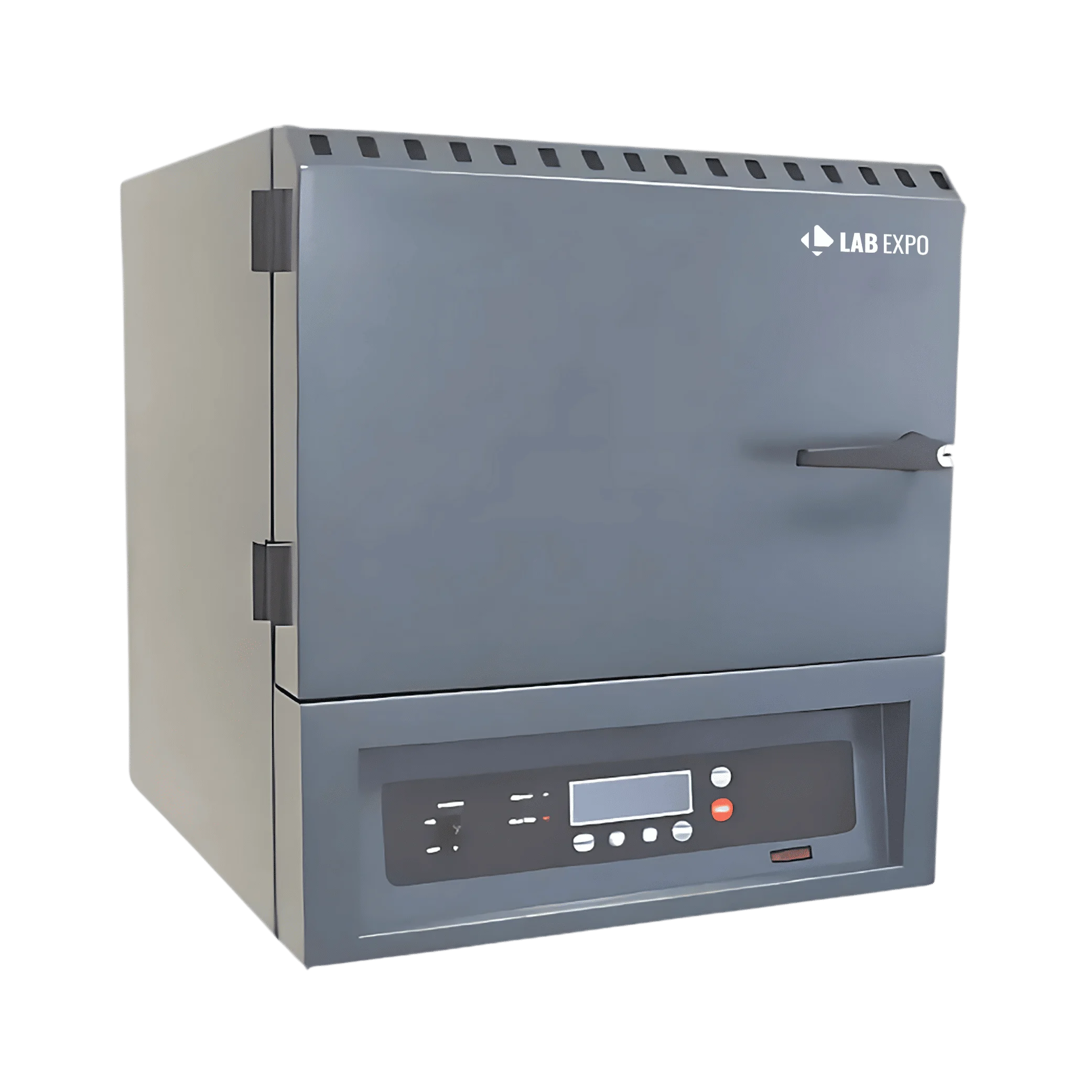

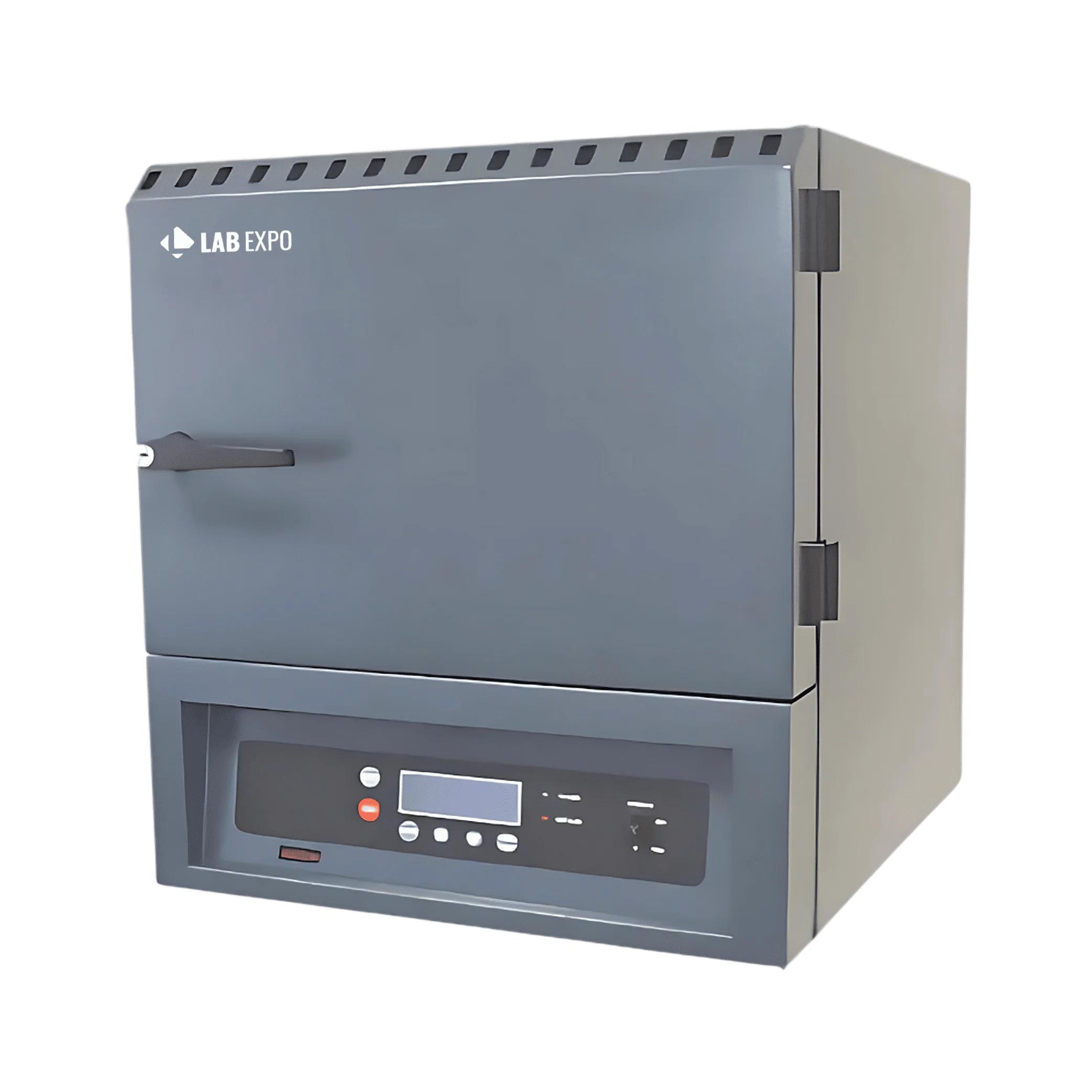

Muffle Furnace is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1550 °C.
Out of Stock
| Max. Temperature | 1550 °C |
| Capacity | 6 L |
| Heating Program | 8 step |
| Thermal Rate | 3 °C - 20 °C |
| Heating element | SiC (Silicon Carbide) |
| Program Memories | 6 |
| Thermocouple Type | S Type |
| Display | 4 x 20" LCD |
| Heating Element Placement | Horizontally aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ± 1 °C |
| Inner Volume Temperature Homogenity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Max. Current | 2 x 16 A |
| Power | 7.000 W |
| Inner Chamber Dimension (W x H x D) | 180 x 160 x 260 mm |
| Product Outer Dimension (W x H x D) | 545 x 636 x 684 mm |
| Gross Dimension (W x H x D) | 605 x 696 x 844 mm |
| Net Weight | 56 kg |
| Gross weight | 75 kg |
It is used for applications such as: Fusing glass, Creating enamel coatings, Ceramics, Soldering, Brazing, Rubbers & Polymers.It is also used for metallurgical applications, for ash content determination and in research centers and medical laboratories to determine the volatile & non-combustible proportion of the sample.
Lab Expo 1550C Muffle Furnaces are structured around premium insulation systems and high-strength heating elements to maintain uniform ultra-high-temperature performance. This laboratory furnace supports controlled operation up to 1550 C with intelligent digital temperature regulation for precise ramping and holding. Rapid heat-up response, reinforced chamber build, automatic safety shutdown, and over-temperature protection enable repeatable ceramic sintering, metallurgical testing, and advanced materials research in laboratory and industrial environments.
