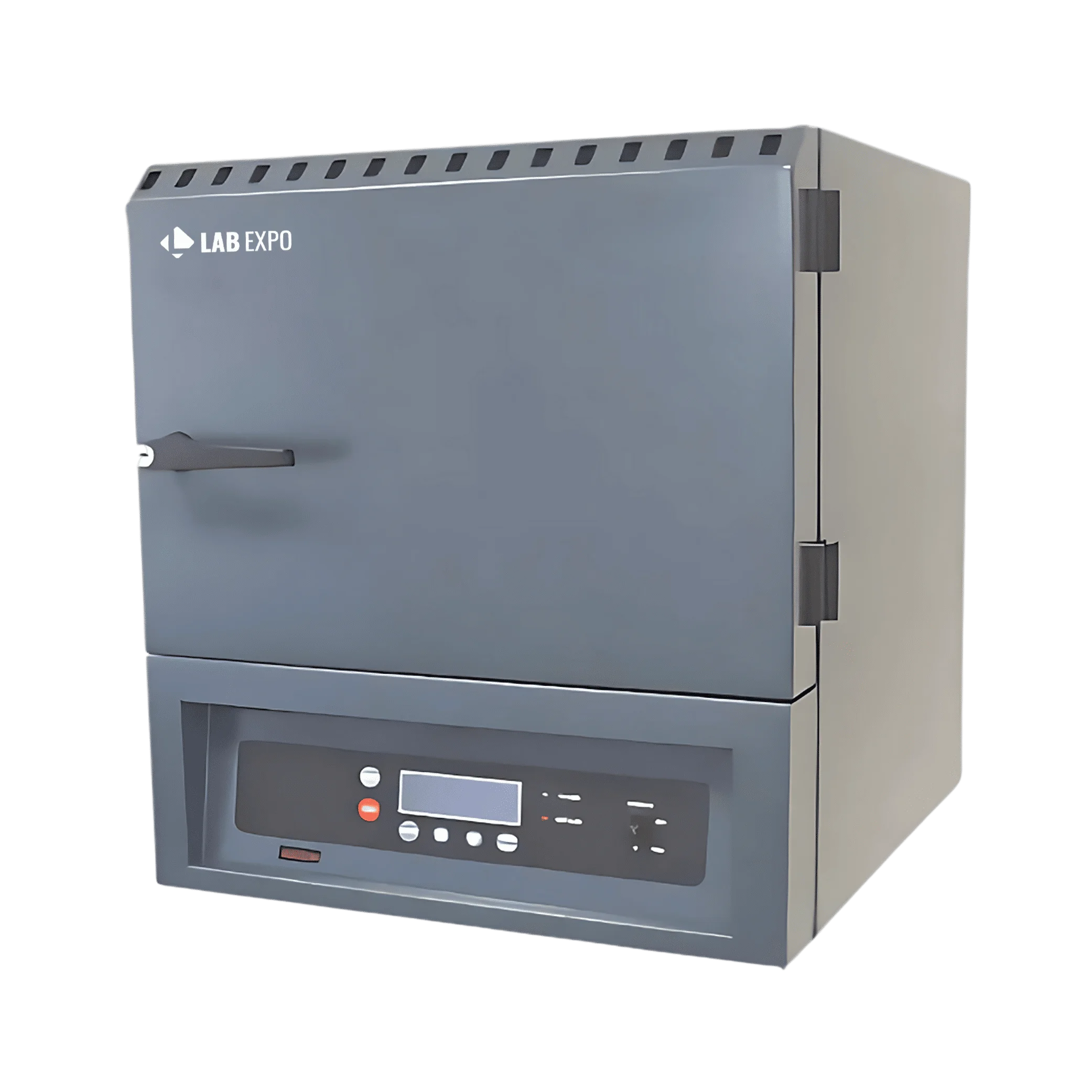

Muffle Furnace 04A-MFF806

Name: Muffle Furnace 04A-MFF806
Brand: Labexpo
SKU: 04A-MFF806
Rating: 4.6 (850 reviews)

Lab Expo Muffle Furnace 04A-MFF806 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1550 °C.

$11,491.00 $ 9576

Muffle Furnace 04A-MFF806 - Specifications

Max. Temperature	1550 °C
Capacity	9 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	SiC (Silicon Carbide)
Program Memories	4
Thermocouple Type	S Type
Display	4 x 20" LCD
Heating Element Placement	Horizontally aligned next to the side walls
Inner Insulation Material	Ceramic Fibre Board
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard without fan
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Auto Start at Certain Date	Yes
Show Remaining Waiting Time	Yes
Skip the Waiting Step	Yes
Burst Heating Mode	Yes
Max. Current	2 x 19 A
Power	8.194 W
Inner Chamber Dimension (W x H x D)	200 x 180 x 300 mm
Product Outer Dimension (W x H x D)	570 x 646 x 634 mm
Gross Dimension (W x H x D)	630 x 706 x 894 mm
Net Weight	66 kg
Gross weight	87 kg

Muffle Furnace 04A-MFF806 - Key Features

Microprocessor-based PID control with 0.1C resolution
SiC heating elements horizontally aligned next to side walls
S type thermocouple ensuring accurate temperature measurement and control
High quality insulating bricks and ceramic fibre board lining inner chamber

Muffle Furnace 04A-MFF806 - Applications

Function	Implementation
Laboratory ashing processes	1550 °C enables complete sample oxidation
Quality control testing	± 1 °C accuracy supports repeatable analytical results
Material sintering operations	9 L capacity accommodates batch processing
Thermal cycling applications	4 step program controls complex heating sequences
Continuous high-temperature runs	Burst Heating Mode sustains rapid thermal ramp-up

Muffle Furnace 04A-MFF806 - Optional Features

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Muffle Furnace 04A-MFF806 - Spare Parts

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan

Muffle Furnace 04A-MFF806 - Catalog

Muffle Furnace 04A-MFF806 Catalog
