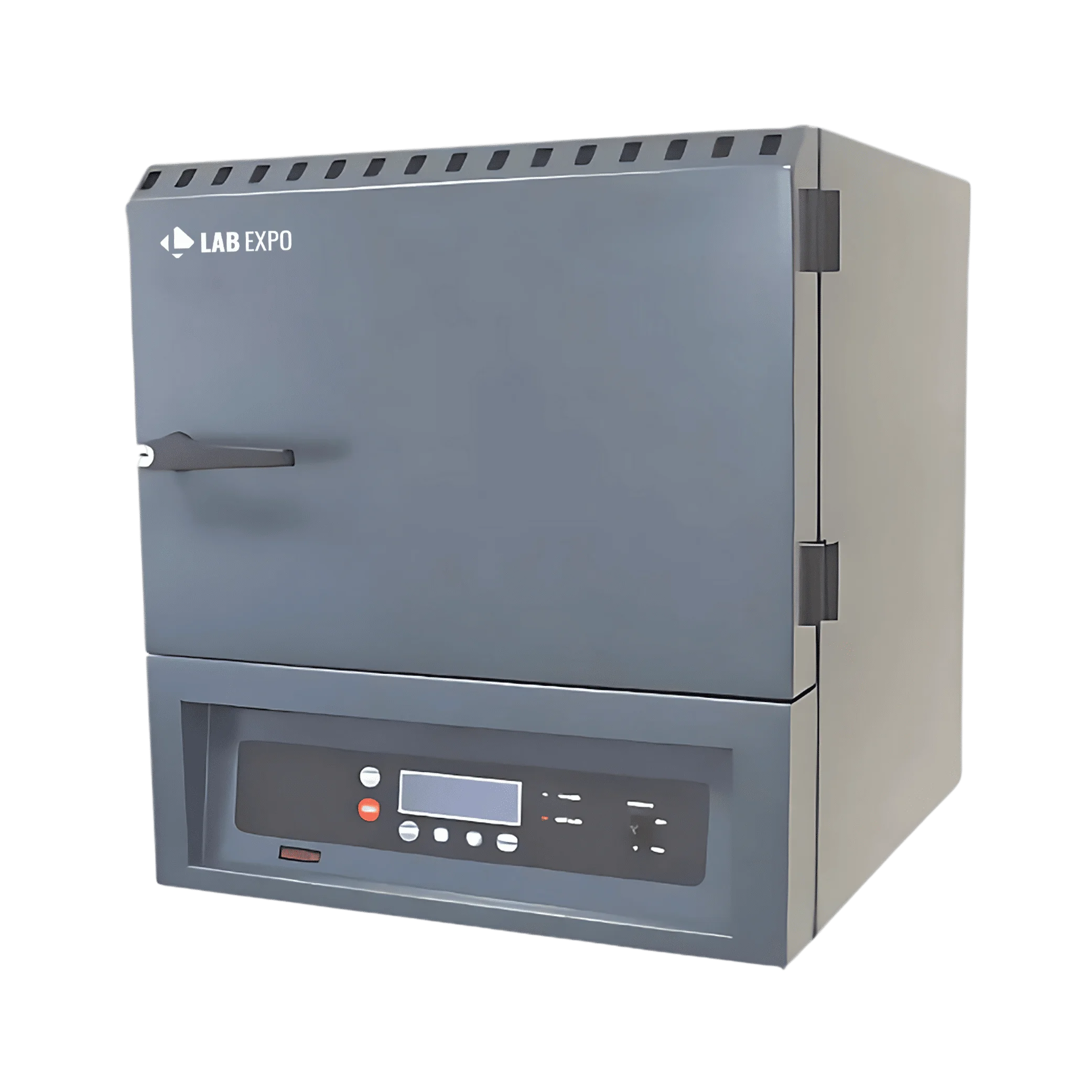

Muffle Furnace 04A-MFF812

Name: Muffle Furnace 04A-MFF812
Brand: Labexpo
SKU: 04A-MFF812
Rating: 4.8 (934 reviews)

Lab Expo Muffle Furnace 04A-MFF812 is a microprocessor controlled furnace having unique electronic design with user friendly operating menu in 4 line display for easy operation. It uses phase angle firing method for slowing down the inevitable aging of SiC heating elements, has its own unique software and is accurate in temperature controlling and measuring using S type thermocouple. Crafted for minimal space requirement in the laboratory, it is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc. and is ideal for maximum and continuous working temperature of 1550 °C.

$16,603.00 $ 13836

Muffle Furnace 04A-MFF812 - Specifications

Max. Temperature	1550 °C
Capacity	30 L
Heating Program	4 step
Thermal Rate	3 °C - 20 °C
Heating element	SiC (Silicon Carbide)
Program Memories	4
Thermocouple Type	S Type
Display	4 x 20" LCD
Heating Element Placement	Horizontally aligned next to the side walls
Inner Insulation Material	Ceramic Fibre Board
Front Face Insulation Material	Insulating Fire Brick
Door Insulation Material	Ceramic Fibre Board
Housing Material	Steel Sheet
Housing Coating	Epoxy powder coating
Chimney	Standard without fan
Lockable Door Handle	Sidewards
Temperature Control Accuracy	± 1 °C (can vary at low temperatures)
Measurement Accuracy	± 1 °C
Inner Volume Temperature Homogenity	± 10 °C
Auto Start at Certain Date	Yes
Show Remaining Waiting Time	Yes
Skip the Waiting Step	Yes
Burst Heating Mode	Yes
Max. Current	3 x 20 A
Power	10.500 W
Inner Chamber Dimension (W x H x D)	300 x 250 x 395 mm
Product Outer Dimension (W x H x D)	670 x 726 x 864 mm
Gross Dimension (W x H x D)	730 x 786 x 1024 mm
Net Weight	94 kg
Gross weight	123 kg

Muffle Furnace 04A-MFF812 - Key Features

30L stainless steel chamber with uniform heating
SiC heating elements horizontally aligned next to side walls
Current limit control ensuring safe operation at 3x20A max current
High cold start heating rate using phase angle firing method on SiC elements
Sound warning at step changes and program end with step indicator
Instantaneous energy consumption indicator during operation

Muffle Furnace 04A-MFF812 - Applications

Function	Implementation
High-temperature ashing	1550 °C max temperature enables complete sample combustion
Thermal cycling protocols	4 step heating program controls sequential temperature phases
Precision material testing	±1 °C accuracy supports repeatable analytical results
Multi-sample processing	30 L capacity accommodates batch laboratory workflows
Continuous operation labs	10.500 W power sustains prolonged high-temperature cycles

Muffle Furnace 04A-MFF812 - Optional Features

Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply

Muffle Furnace 04A-MFF812 - Spare Parts

Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan

Muffle Furnace 04A-MFF812 - Catalog

Muffle Furnace 04A-MFF812 Catalog
