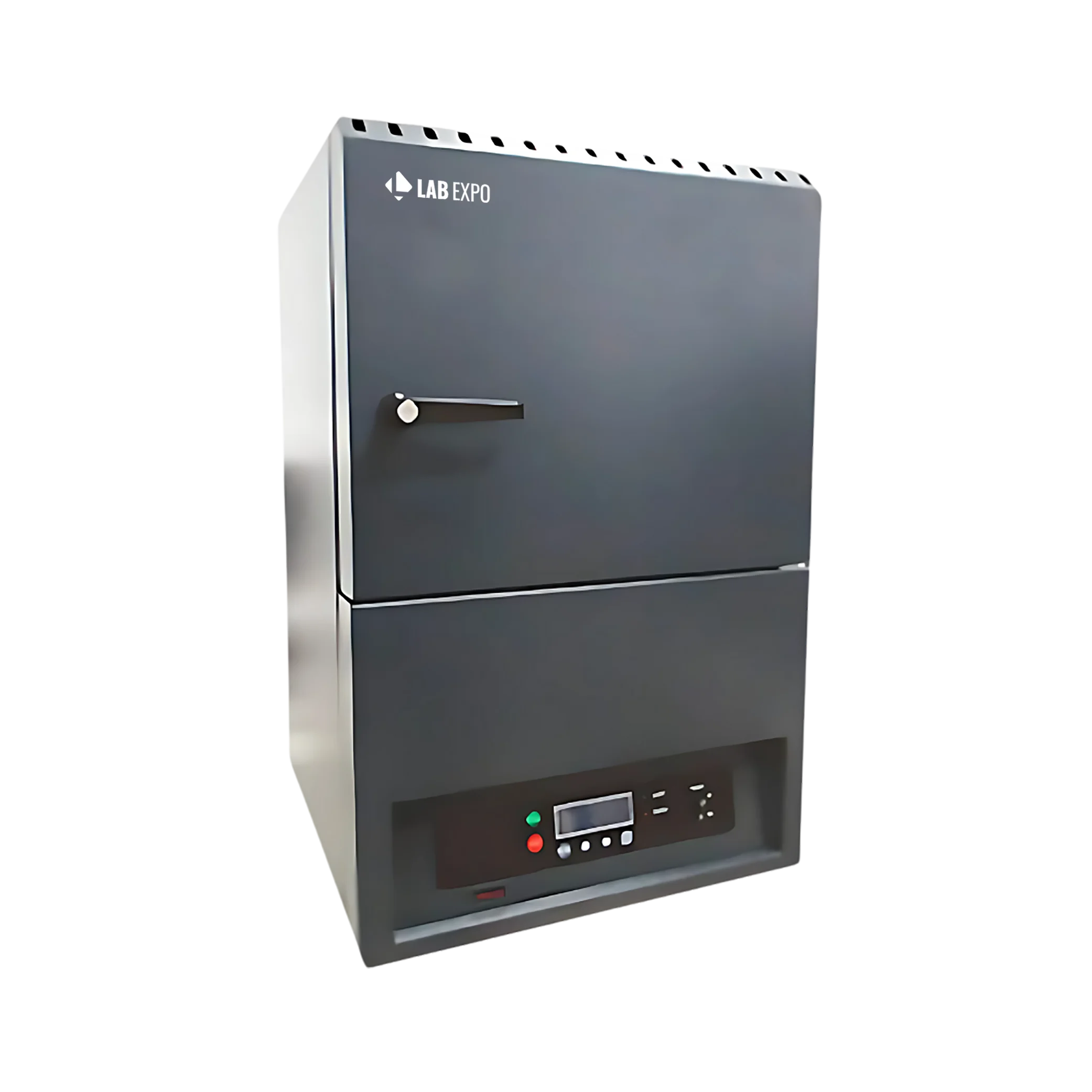

Lab Expo Muffle Furnace 04A-MFF906 is a microprocessor controlled furnace that is uniquely designed with optimum heat insulation properties and is ideal for ashing of food, plastic and other organic materials. With heating elements MoSi₂ vertically aligned next to the side walls, S and B type thermocouple, dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperature of 1600 °C. Having user friendly menu in 4 line display for easy operation and current limit control for safe operation, it is designed for minimal space requirement in the laboratory and is equipped with instantaneous energy consumption indicator, total working hour counter, control unit overheating sensor etc.
$9,706.00 $ 8088
| Max. Temperature | 1600 °C |
| Capacity | 6 L |
| Heating Program | 4 step |
| Thermal Rate | 3 °C - 20 °C |
| Heating element | MoSi₂ (Molybdenum disilicide) |
| Program Memories | 4 |
| Thermocouple Type | S Type |
| Display | 4 x 20" LCD |
| Heating Element Placement | Vertically aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Material | Steel Sheet |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Measurement Accuracy | ± 1 °C |
| Inner Volume Temperature Homogenity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Max. Current | 2 x 20 A |
| Power | 8.200 W |
| Inner Chamber Dimension (W x H x D) | 150 x 185 x 220 mm |
| Product Outer Dimension (W x H x D) | 502 x 955 x 634 mm |
| Gross Dimension(W x H x D) | 562 x 1015 x 839 mm |
| Net Weight | 110 kg |
| Gross weight | 133 kg |
Function Implementation High-temperature ashing labs 1600 °C enables complete organic material decomposition Continuous sintering operations 8.200 W sustains prolonged thermal exposure Precision thermal cycling ± 1 °C accuracy ensures repeatable process control Multi-program testing sequences 4 step heating program manages complex ramps Laboratory quality control Inner chamber dimension 150 x 185 x 220 mm accommodates standard crucibles
Over Temperature Limiter
Lift-up Door
Stainless Steel body
Gas Supply Connection
Open Door Sensor
Second Thermocouple
Observation Hole
PC Connection
110 V Power Supply
Inner Module: Changing inner module renews your furnace close to a brand new furnace
Door Insulation: With sheet metal holder vessel
Control Card: Easy-to-replace, pre-programmed
Power Card: Easy-to-replace
Display: 4 x 20 LCD display
Cooling Fan: 80 x 80 x 20/ 220 V fan
Chimney Fan: 40 x 40 x 10/ 5V fan
Lab Expo 1600C Muffle Furnaces are structured around advanced zirconia or alumina insulation systems to sustain uniform ultra-high-temperature operation. This laboratory furnace supports stable processing up to 1600 C with microprocessor-based control for precise ramping, holding, and rapid thermal recovery. Reinforced heating elements, durable chamber build, and integrated protection systems ensure consistent performance for crystal growth, ceramic development, metal oxidation, and high-temperature sintering in research and industrial R&D workflows.
