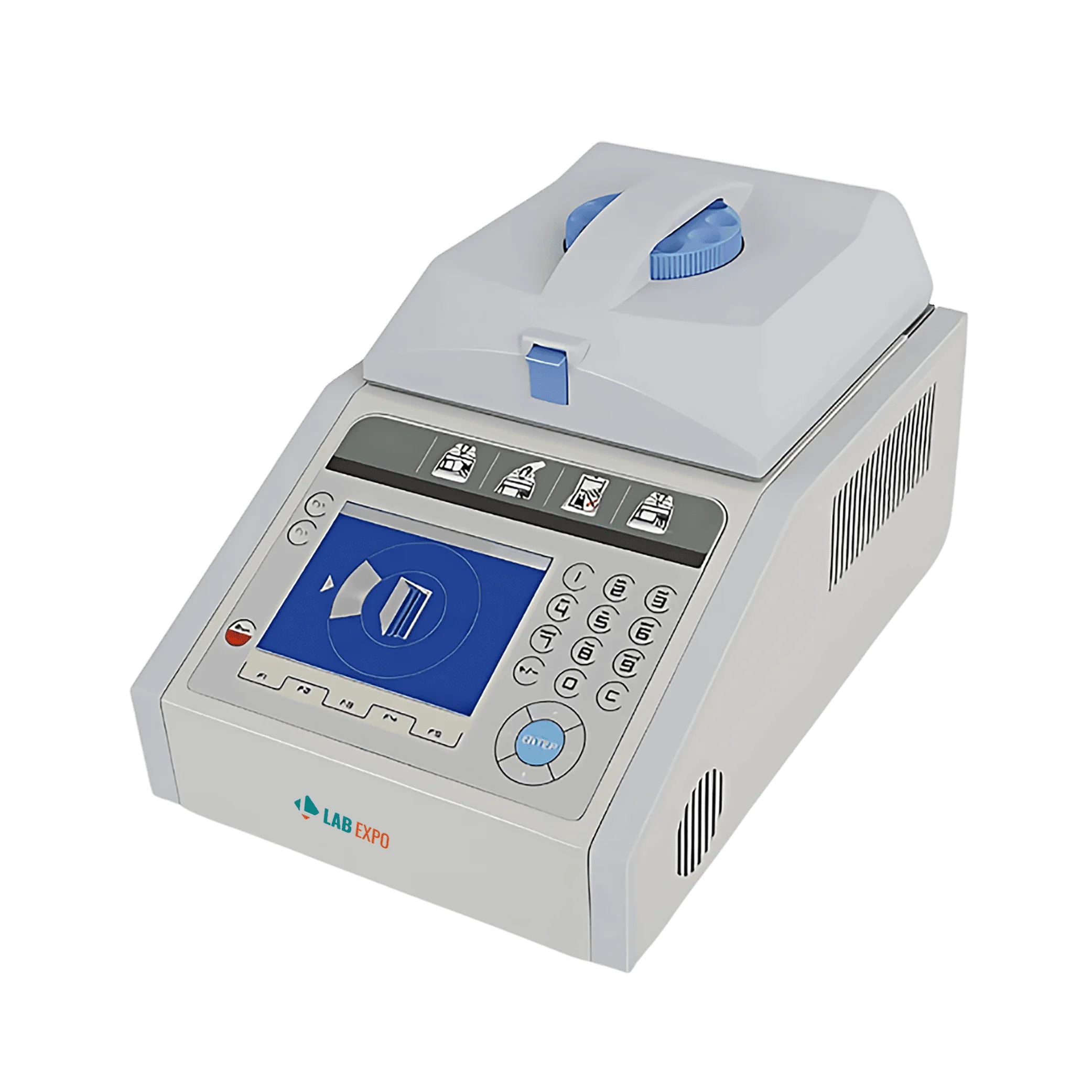

Advanced Thermal Cycler is adopted with advanced peltier based semi-conductor technology for thermal uniformity, is used in multiple PCR based experiments. It uses 6 pieces of advanced (US) Marlow peltier with maximum cycle time more than 200,000. This thermal cycler works on latest Windows OS, performs control function, print function, stores large data through USB interface for reliable, safe usage.
| Capacity | 96 × 0.2 ml |
| Block Temperature Range | 0 to 99.9°C |
| Temperature Control Accuracy | ≤ ± 0.2 ℃ |
| Ramping Rate Adjustable | 0.1 to 2.5℃ |
| Temperature Uniformity | ≤ ± 0.3 ℃ |
| Heating Rate | 4 ℃/s |
| Cooling Rate | 3 ℃/s |
| Temperature Control Mode | Block \ Tube |
| Hot-lid Temperature Range | 30 to 110℃ |
| Hot Lid Height Adjustable | Stepless Adjustable |
| Max No. of Steps | 9 |
| Max No. of Cycles | 99 |
| Time Increment/Decrement | 1 sec to 9 min 59 sec |
| Temperature Increment/Decrement | 0.1 to 9.9℃ |
| Program | 200 |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Yes | |
| LCD | 5.7 inch, 320 × 240 pixels |
| Communication | USB 2.0 , RS232 |
| Power Supply | 85 to 264 V AC , 47 to 63 Hz , 600 W |
| Dimension ( L×W×H ) | 380 × 240 × 260 mm |
| Weight | 10 kg |
Widely used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics and analytical laboratories.
