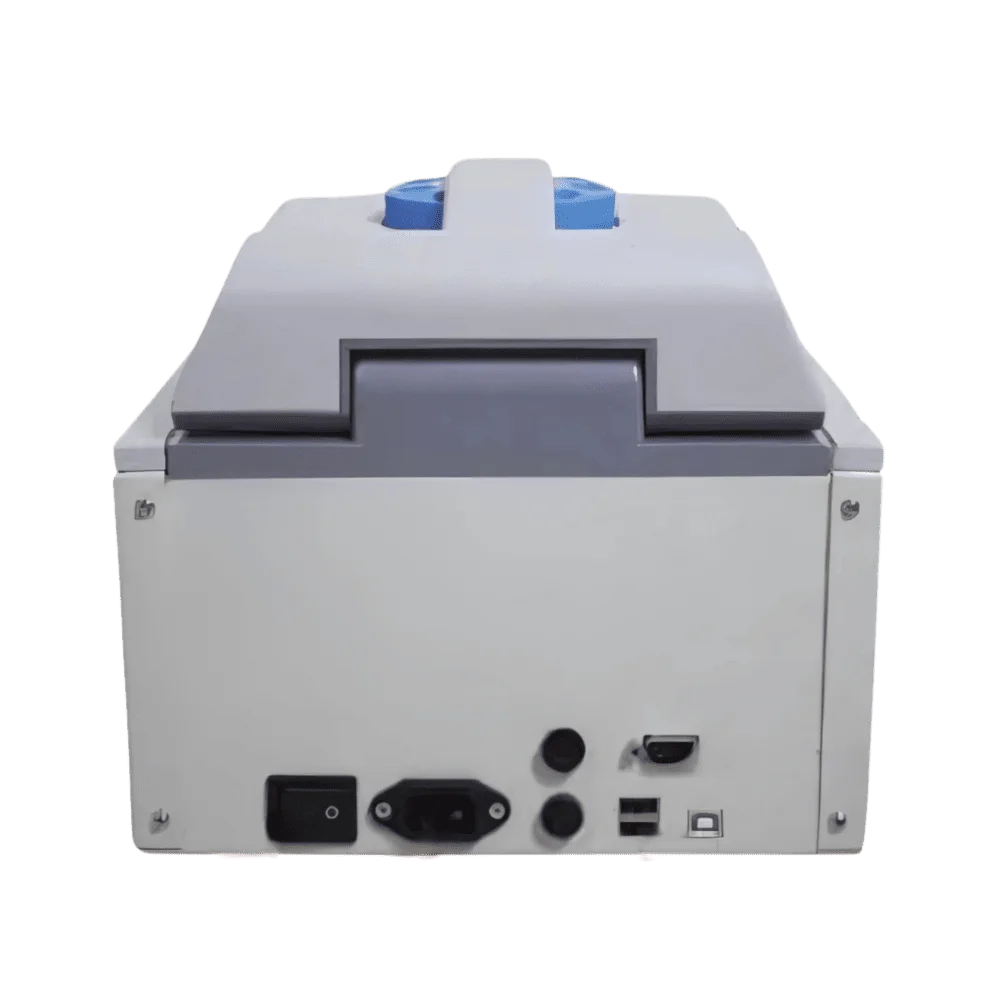

Lab Expo Advanced Thermal Cycler (Basic) 62-ATC103 is adopted with advanced peltier based semi-conductor technology for thermal uniformity, is used in multiple PCR based experiments. It uses 6 pieces of advanced (US) Marlow peltier with maximum cycle time more than 200,000. This thermal cycler works on latest Windows OS, performs control function, print function, stores large data through USB interface for reliable, safe usage.
$6,288.00 $ 5240
| Capacity | 384 well |
| Block Temperature Range | 0 to 99.9°C |
| Temperature Control Accuracy | ≤ ± 0.2 ℃ |
| Ramping Rate Adjustable | 0.1 to 2.5℃ |
| Temperature Uniformity | ≤ ± 0.3 ℃ |
| Heating Rate | 4 ℃/s |
| Cooling Rate | 3 ℃/s |
| Temperature Control Mode | Block \ Tube |
| Hot-lid Temperature Range | 30 to 110℃ |
| Hot Lid Height Adjustable | Stepless Adjustable |
| Max No. of Steps | 9 |
| Max No. of Cycles | 99 |
| Time Increment/Decrement | 1 sec to 9 min 59 sec |
| Temperature Increment/Decrement | 0.1 to 9.9℃ |
| Program | 200 |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Yes | |
| LCD | 5.7 inch, 320 × 240 pixels |
| Communication | USB 2.0 , RS232 |
| Power Supply | 85 to 264 V AC , 47 to 63 Hz , 600 W |
| Dimension ( L×W×H ) | 380 × 240 × 260 mm |
| Weight | 10 kg |
Function Implementation PCR amplification setup 384 well capacity enables high-throughput sample processing Temperature-sensitive reactions ≤ ± 0.2 ℃ accuracy ensures precise thermal control Multi-step cycling protocols 9 max steps support complex reaction programming Extended run applications 99 max cycles allow prolonged experimental sequences Data logging requirements USB 2.0 interface facilitates reliable data transfer
Lab Expo Advanced Thermal Cycler delivers accurate PCR amplification with precise temperature control and uniform thermal performance across varied protocols. Designed to function as a thermocycler, it supports multiple tube formats, stable cycling via Peltier-based regulation, and precise data handling through integrated software and USB connectivity. Clear LCD monitoring and intuitive control enable consistent operation in research and diagnostic laboratory workflows.
