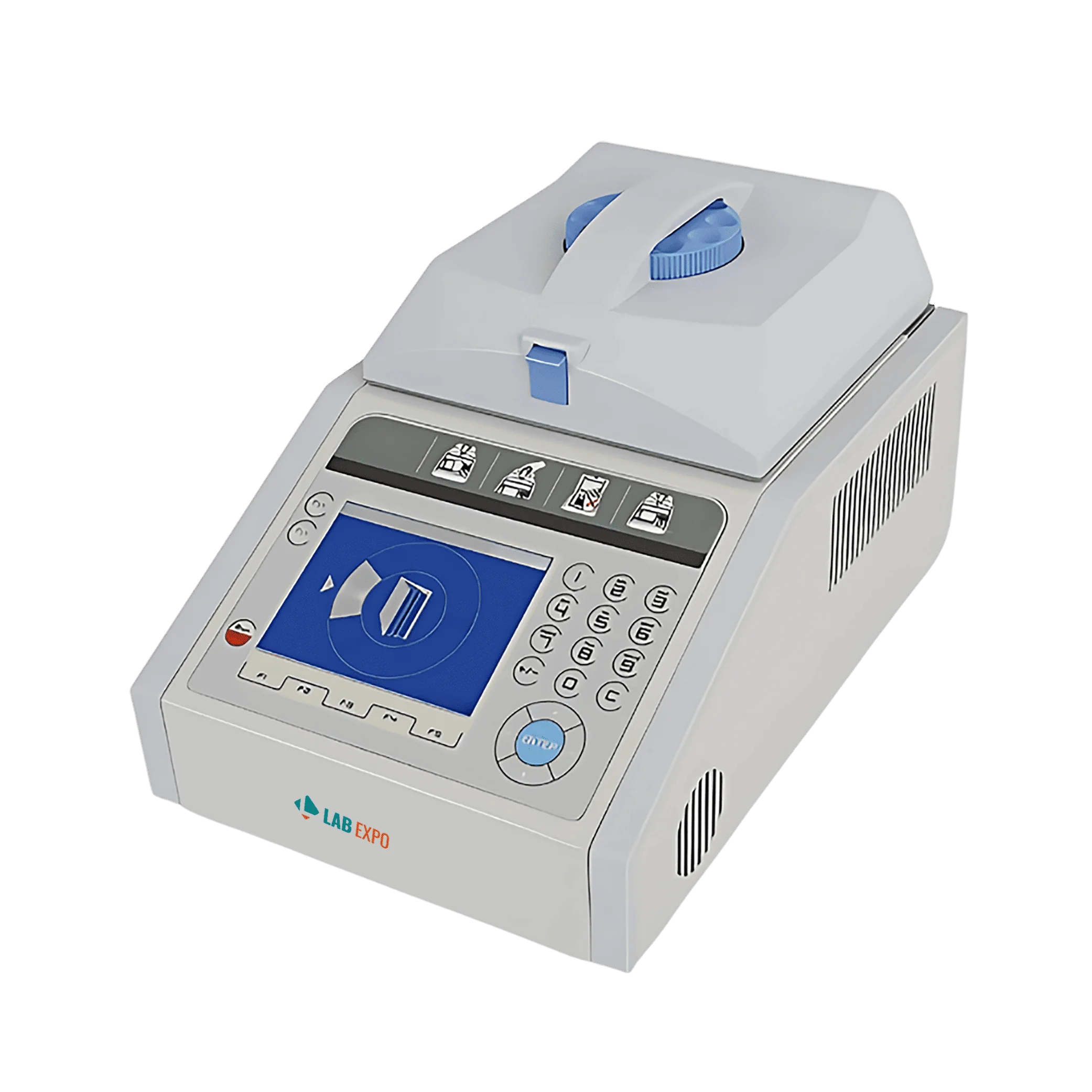

Lab Expo Advanced Thermal Cycler (Gradient) 62-ATC105 is adopted with advanced peltier based semi-conductor technology for thermal uniformity, is used in multiple PCR based experiments. It uses 6 pieces of advanced (US) Marlow peltier with maximum cycle time more than 200,000. This thermal cycler works on latest Windows OS, performs control function, print function, stores large data through USB interface for reliable, safe usage.
$6,864.00 $ 5720
| Capacity | 96 × 0.2 ml + 77 × 0.5 ml |
| Block Temperature Range | 0 to 99.9°C |
| Temperature Control Accuracy | ≤ ± 0.2 ℃ |
| Ramping Rate Adjustable | 0.1 to 2.5℃ |
| Temperature Uniformity | ≤ ± 0.3 ℃ |
| Heating Rate | 4 ℃/s |
| Cooling Rate | 3 ℃/s |
| Temperature Control Mode | Block \ Tube |
| Gradient Temperature Range | 30 to 99.9℃ |
| Gradient Unformity | ≤ ± 0.3℃ |
| Gradient Accuracy | ≤ ± 0.2℃ |
| Gradient Spread | 1 to 30℃ |
| Hot-lid Temperature Range | 30 to 110℃ |
| Hot Lid Height Adjustable | Stepless Adjustable |
| Max No. of Steps | 9 |
| Max No. of Cycles | 99 |
| Time Increment/Decrement | 3 sec to 9 min 59 sec |
| Temperature Increment/Decrement | 0.1 to 9.9℃ |
| Program | 200 |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Yes | |
| LCD | 5.7 inch, 320 × 240 pixels |
| Communication | USB 2.0 , RS232 |
| Power Supply | 85 to 264 V AC , 47 to 63 Hz , 600 W |
| Dimension ( L×W×H ) | 392 × 262 × 252 mm |
| Weight | 10 kg |
Function Implementation PCR optimization labs Gradient Spread 1 to 30℃ enables simultaneous temperature testing across samples High-throughput screening Capacity 96 × 0.2 ml + 77 × 0.5 ml supports large sample batch processing Clinical diagnostics Temperature Control Accuracy ≤ ± 0.2 ℃ ensures precise thermal cycling for reliable results Research protocol development Max No. of Cycles 99 allows extended amplification workflows with repeated cycles Data-intensive applications Program 200 stores numerous thermal profiles for complex experimental setups
Lab Expo Advanced Thermal Cycler delivers accurate PCR amplification with precise temperature control and uniform thermal performance across varied protocols. Designed to function as a thermocycler, it supports multiple tube formats, stable cycling via Peltier-based regulation, and precise data handling through integrated software and USB connectivity. Clear LCD monitoring and intuitive control enable consistent operation in research and diagnostic laboratory workflows.
