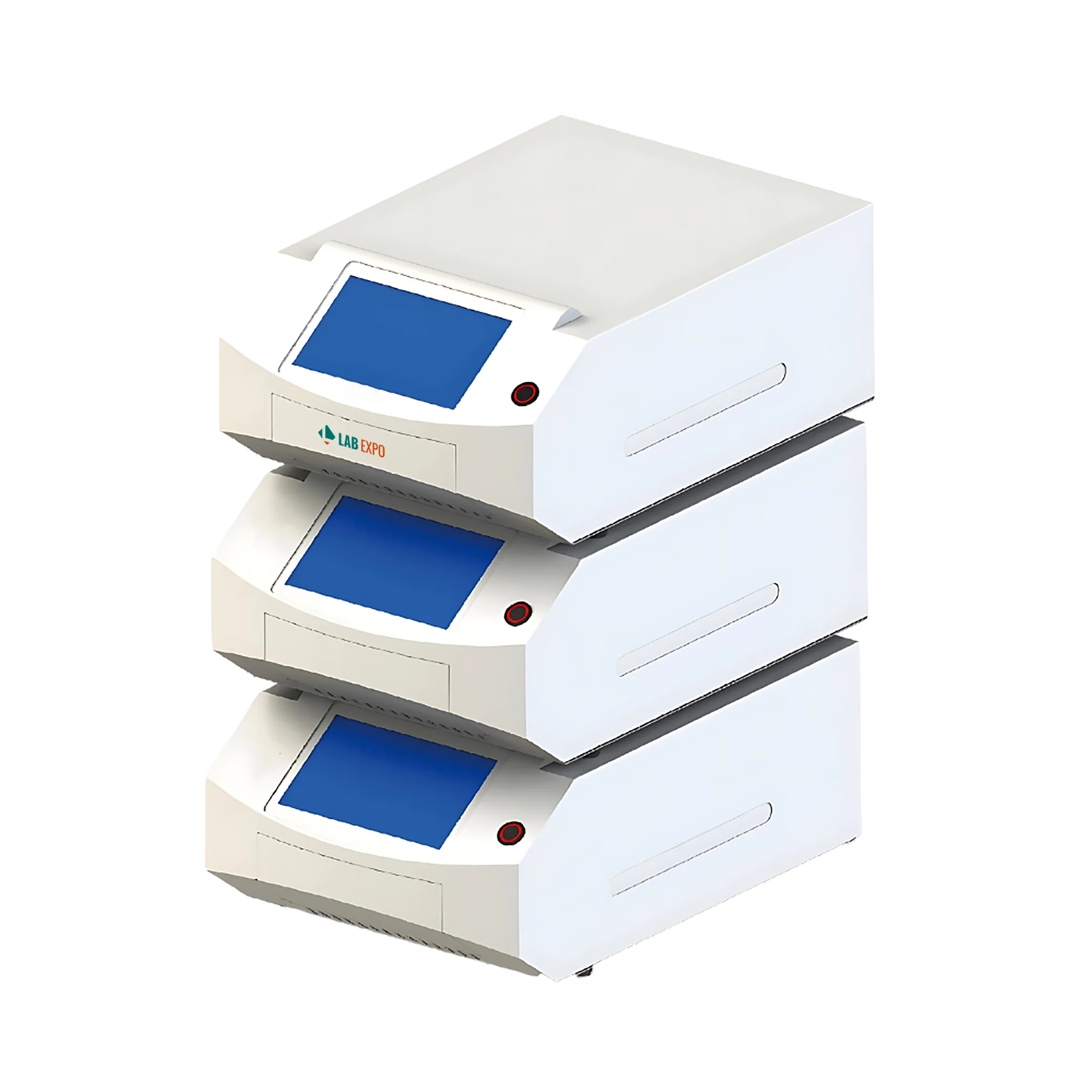

Advanced Thermal Cycler LE-ATC202

Advanced Thermal Cycler LE-ATC202

Lab Expo Advanced Thermal Cycler LE-ATC202 features dual temperature control and a 384-well module for precise, high-throughput thermal cycling. It includes an analog tube holder and thermal block to ensure consistent performance. Designed with a gland-style heated lid, it adjusts in height for secure sealing. Equipped with a glove-compatible capacitive touchscreen, it offers intuitive operation. Our Thermal Cycler supports the storage of numerous PCR programs for an efficient workflow.

$10,421.00 $ 8684

Advanced Thermal Cycler LE-ATC202 - Specifications

Sample Stage Module 384-well module
Applicable Tubes/Plates 384-well plate (full hem, half hem)
U Disk Function USB flash drive
Display 7" capacitive touch screen, glove-compatible
Temperature Control Mode Analog tube (Tube), sample stage (Block)
Sample Station Temperature Range 0℃ to 99.9℃
Maximum Heating Range 5℃ / sec
Maximum Cooling Rate 5℃ / sec
Sample Station Temperature Uniformity ≤0.2℃
Sample Station Temperature Accuracy ≤0.1℃
Temperature Display Branch Rate 0.1℃
Variable Temperature Speed 0.1℃ to 0.4℃
Heated Lid Type Gland type, adaptive height
Heated Lid Temp 30℃ to 110℃ (adjustable)
Heated Lid Heating Rate ≤1 min 40 sec (to 105℃)
Lid Auto Close Below 30℃ or after program ends
Stored Programs 15,000 PCS
Program Steps Max 30 (supports nested loops)
Cycle Count 10,000
Time Increases/Decreases 1 to 120 sec
Temperature Increases/Decreases 0.1℃ to 10℃
Power-Off Protection Yes
Auto Pause Yes
Program Report Detailed run log for analysis
Connected Computer Yes
Power Consumption 550W
Power Supply 85V to 265V, 50/60 Hz
Dimensions 260 × 410 × 245 mm
Weight 7.3 kg

Advanced Thermal Cycler LE-ATC202 - Key Features

  • Microprocessor-based PID control with 0.1C resolution
  • Gland-type heated lid with adaptive height sealing
  • 7-inch capacitive touchscreen glove-compatible interface
  • Sample station temperature accuracy ≤0.1C across range
  • Temperature uniformity maintained at ≤0.2C block-wide
  • Maximum heating and cooling rate of 5C per second

Advanced Thermal Cycler LE-ATC202 - Applications

FunctionImplementation
High-throughput processing384-well module supports simultaneous sample analysis
Rapid temperature transitions5℃/sec maximum heating rate enables fast cycling cycles
Precise thermal uniformity≤0.2℃ sample station uniformity ensures consistent results
Extended program storageStored programs: 15,000 PCS allows large protocol libraries
Secure operation continuityPower-Off Protection Yes maintains data during interruptions

Advanced Thermal Cycler LE-ATC202 - Catalog

Advanced Thermal Cycler LE-ATC202 Catalog

Related Advanced Thermal Cycler

Lab Expo Advanced Thermal Cycler delivers accurate PCR amplification with precise temperature control and uniform thermal performance across varied protocols. Designed to function as a thermocycler, it supports multiple tube formats, stable cycling via Peltier-based regulation, and precise data handling through integrated software and USB connectivity. Clear LCD monitoring and intuitive control enable consistent operation in research and diagnostic laboratory workflows.
