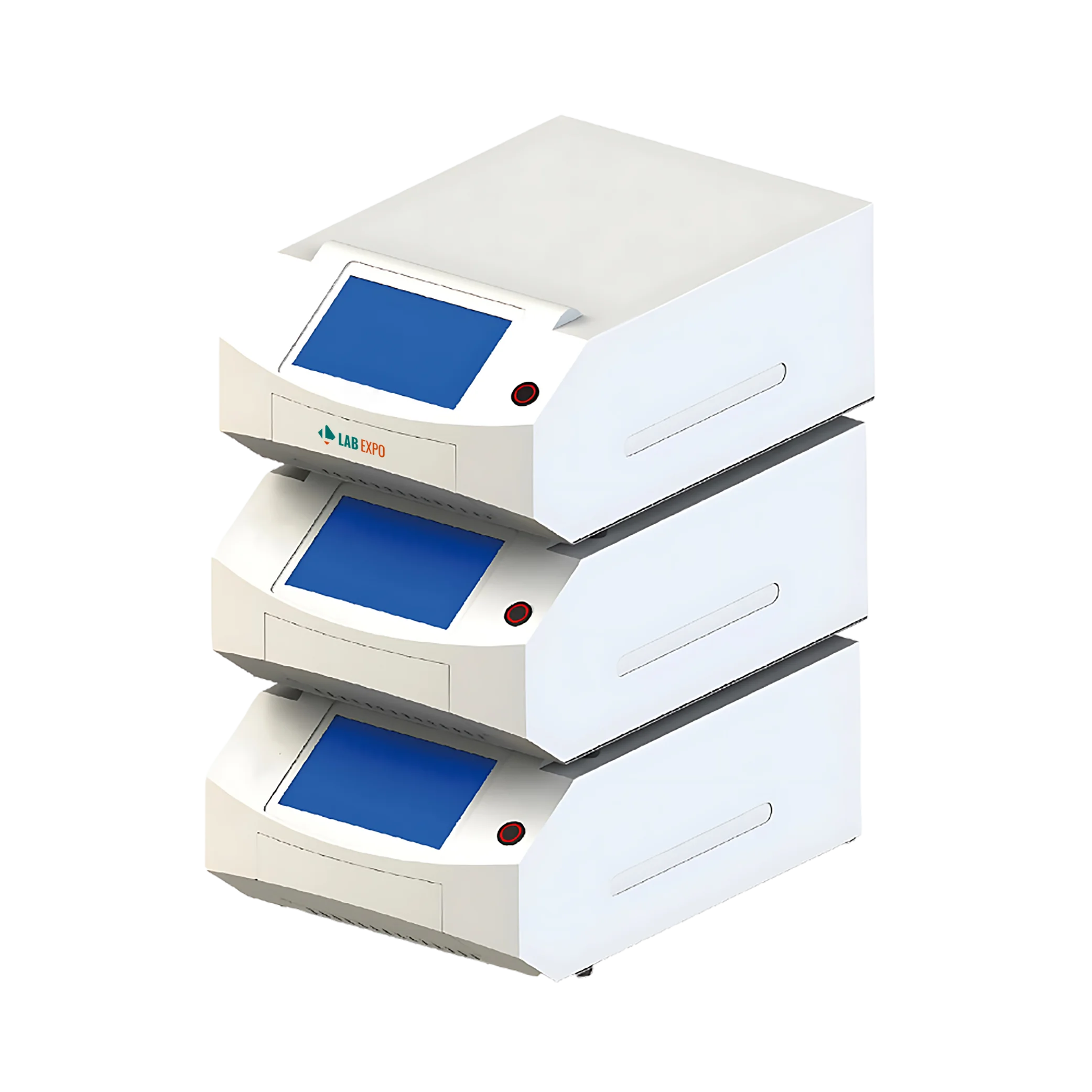

Lab Expo Advanced Thermal Cycler LE-ATC203 includes 114 × 78 mm flat panel sample stage module, supporting multiple PCR chips and slides. It delivers rapid thermal cycling with heating and cooling rates of up to 5°C per second. This system includes an automatic entry and exit mechanism, along with alloy modules that enhance thermal conductivity and ensure consistent temperature uniformity. Our Thermal Cycler features front and rear air inlets, ensuring efficient space utilization and optimizing the overall design.
$10,601.00 $ 8834
| Sample Stage Module | Flat panel module (114 × 78 mm) |
| Compatible Plates | Digital PCR chip and slides |
| Temperature Control Modes | Analog tube mode, block/sample stage mode |
| Temperature Range | 0℃ to 99.9℃ |
| Maximum Heating Range | 5℃ / sec |
| Maximum Cooling Rate | 5℃ / sec |
| Temperature Uniformity | ≤0.2℃ |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Display Resolution | 0.1℃ |
| Variable Temperature Rate Range | 0.1℃ to 0.4℃ |
| Heated Lid Type | Gland type with adaptive height |
| Heated Lid Temp | Adjustable from 30℃ to 110℃ |
| Heated Lid Heating Rate | ≤1 min 40 sec (to 105℃) |
| Lid Auto Close Function | Engages below 30°C or after program completion |
| Program Storage Capacity | Up to 15,000 Programs |
| Max Program Steps | 30 steps, with nested loop support |
| Cycle Count Limit | Up to 10,000 cycles |
| Time Increments/Decrements | 1 to 120 sec |
| Temperature Increments/Decrements | 0.1℃ to 10℃ |
| Power-Off Protection | Yes |
| Auto Pause | Yes |
| Program Report | Detailed run log for analysis |
| PC Connectivity | Yes |
| Communication Interface | USB |
| Display | 7-inch capacitive touch screen, compatible with gloves |
| Power Consumption | 550 Watt |
| Power Supply | 85V to 265V, 50/60 Hz |
| Dimensions | 260 × 410 × 245 mm |
| Weight | 7.3 kg |
Function Implementation PCR amplification labs 5℃/sec heating rate enables rapid thermal cycling Clinical diagnostics workflows ≤0.1℃ accuracy supports precise sample analysis Research laboratories 30-step programs with nested loops control complex protocols Multi-sample testing facilities 114 × 78 mm flat panel stage accommodates digital PCR chips High-throughput screening labs Up to 15,000 program storage allows extensive method archiving
Lab Expo Advanced Thermal Cycler delivers accurate PCR amplification with precise temperature control and uniform thermal performance across varied protocols. Designed to function as a thermocycler, it supports multiple tube formats, stable cycling via Peltier-based regulation, and precise data handling through integrated software and USB connectivity. Clear LCD monitoring and intuitive control enable consistent operation in research and diagnostic laboratory workflows.
