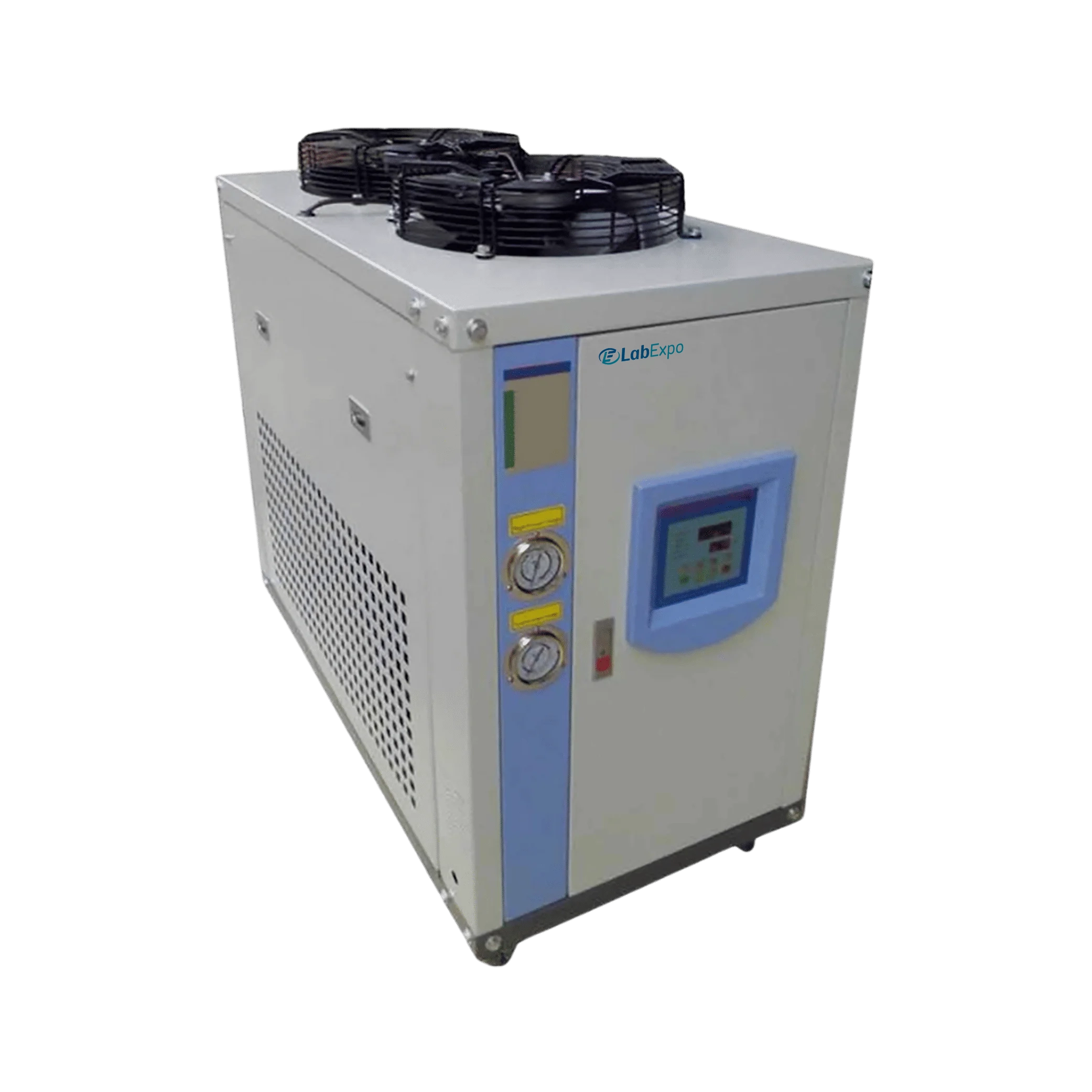

Air Cooled Chiller 29-ACR100 are energy saving and highly efficient chillers. In the case of emergency situations, there is provision to cut off main power immediately. These chillers give stable performance and are leakage proof. These air cooled chillers comes in wide range of compressors from 3.3 kW to 22.5 kW for use. They are completely safe device and are compact in structure for outdoor installation.
$4,718.00 $ 3932
| Water tank capacity | 55 L |
| Cooling capacity | 8250 W, 29000 BTU / hr |
| Flow rate | 50 to 100 L / Min |
| water pump | 1 / 2 HP, 0.37 kW |
| Refrigerant type | R22 |
| Compressor motor | 2.2 kW, 3 HP |
| Condenser fan flow rate | 2390 CHM |
| Fan diameter | 300 mm × 2 set |
| Voltage/Base | 380V to 400 V / 3 Phase (50 Hz to 60 Hz) |
| Running current | 6 Amp |
| Insulation material | Poly-foam type rubberized tube insulation |
| Dimension (L × W × H) | 1100 × 615 × 1080 mm |
| Net weight | 155 kg |
Function Implementation Process line cooling 8250 W capacity removes heat from production equipment Air dehumidification Refrigeration system reduces moisture during cooling cycles Continuous coolant circulation 55 L tank and defined flow rate maintain fluid movement Temperature control PID controller maintains stable operating setpoint
Lab Expo Air Cooled Chiller are energy-efficient and dependable, with features like leak-proof operation and consistent performance. They provide a wide variety of compressors and have a small design appropriate for outdoor installation. These contain poly foam rubberized tube insulation and use R22 as a refrigerant. They're built of stainless steel for durability, and a PID temperature controller ensures precision. Our Air Chiller contain an indication light that notifies any abnormal conditions, and an emergency power cut-off assures safety.
