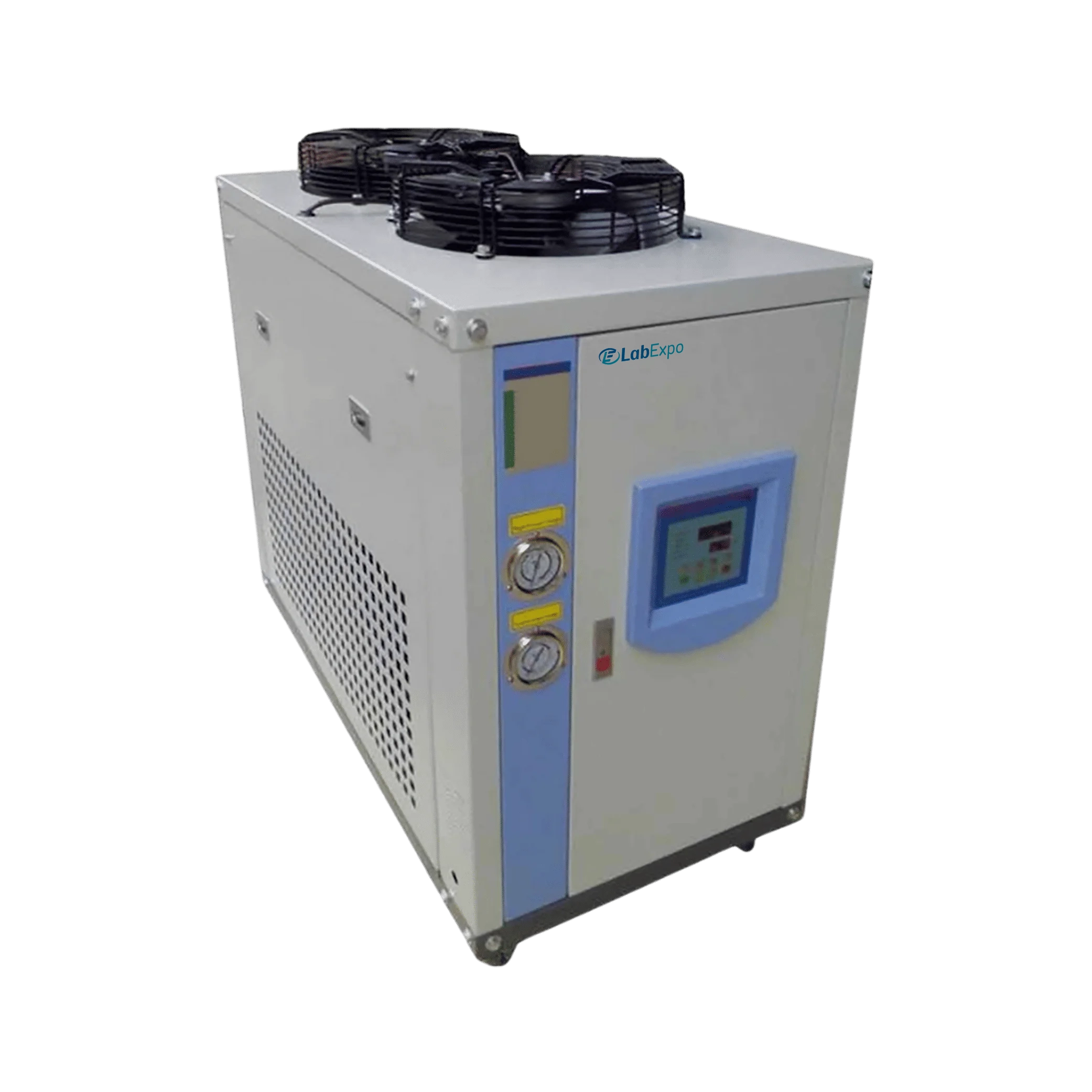

Air Cooled Chiller 29-ACR107 is energy saving and highly efficient chillers. In the case of emergency situations, there is provision to cut off main power immediately. These chillers give stable performance and are leakage proof. These air cooled chillers comes in wide range of compressors from 3.3 kW to 22.5 kW for use. They are completely safe device and are compact in structure for outdoor installation.
$17,813.00 $ 14844
| Water tank capacity | 500 L |
| Cooling capacity | 86200 W, 294400 BTU / hr |
| Flow rate | 250 to 500 L / Min |
| water pump | 2.2 HP, 3 kW |
| Refrigerant type | R22 |
| Compressor motor | 22.5 kW, 30 HP |
| Condenser fan flow rate | 23400 CHM |
| Fan diameter | 630 mm × 8 set |
| Voltage/Base | 380V to 400 V / 3 Phase (50 Hz to 60 Hz) |
| Running current | 58 Amp |
| Insulation material | Poly-foam type rubberized tube insulation |
| Dimension (L × W × H) | 1980 × 860 × 1950 mm |
| Net weight | 920 kg |
Function Implementation High-load industrial cooling 86200 W capacity removes heat from production process systems Air dehumidification Refrigeration cycle reduces moisture during cooling operations Large-volume coolant circulation 500 L tank and high flow rate maintain continuous fluid movement Temperature regulation PID controller stabilizes defined cooling setpoint Emergency condition management Power cutoff and indicator respond to abnormal situations
Lab Expo Air Cooled Chiller are energy-efficient and dependable, with features like leak-proof operation and consistent performance. They provide a wide variety of compressors and have a small design appropriate for outdoor installation. These contain poly foam rubberized tube insulation and use R22 as a refrigerant. They're built of stainless steel for durability, and a PID temperature controller ensures precision. Our Air Chiller contain an indication light that notifies any abnormal conditions, and an emergency power cut-off assures safety.
