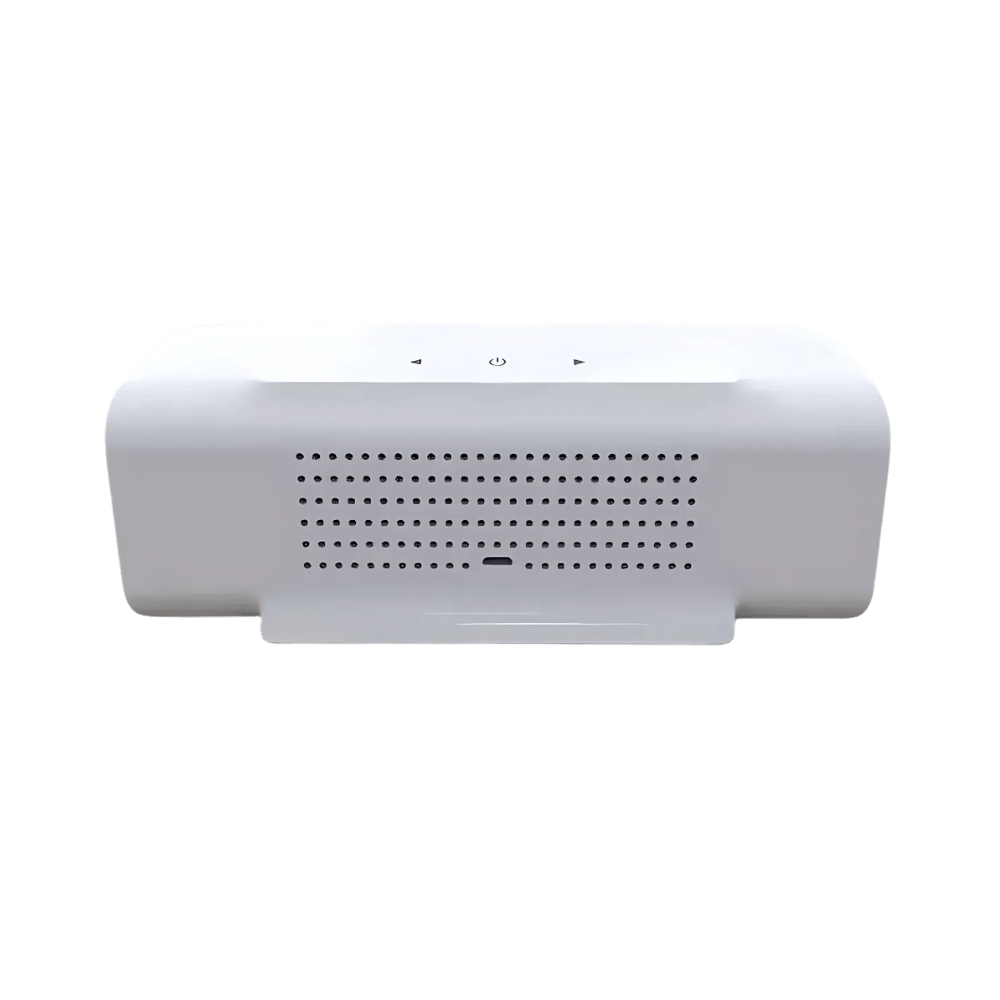

Lab Expo Air Quality Monitor LE-AQM105 is equipped with advanced sensors that provide real-time monitoring of carbon dioxide, formaldehyde, TVOC, and PM. It features a large LCD screen for clear readings. Integrated air quality index indication helps to understand the air quality status. Built-in clock and temperature and humidity tracking provide comprehensive environmental insights. Our Air Quality Monitor is perfect for various indoor applications.
$1,104.00 $ 920
| Measuring Item | CO2, PM2.5, PM10, HCHO (Formaldehyde), TVOC, AQI, Temperature, Humidity. |
| Detection Method for CO2 | Infrared (NDIR) |
| Detection Method for PM | Laser Scattering |
| Detection Method for HCHO/ TVOC | Semiconductor sensor |
| Concentration Unit for CO2 | ppm |
| Concentration Unit for PM | ug/m3 |
| Concentration Unit for HCHO and TVOC | mg /m3 |
| CO2 Measuring Range | 400 to 5000 ppm |
| PM2.5/10 Measuring Range | 0 to 999 ug/m3 |
| HCHO Measuring Range | 0.001 to 1.999 mg/m3 |
| TVOC Measuring Range | 0.001 to 9.999 mg/m3 |
| Atmospheric Pressure | 12.5 PSI to 15.4 PSI |
| Sampling Time | 1.5 Seconds |
| Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Relative Humidity | 20% to 85% |
| Humidity Range | 20% to 85% |
| Display Method | LCD Screen |
| Power Source | 3000 mAh Rechargeable Lithium Battery, Charging via Micro USB Port |
| Dimension | 190 × 80 × 52mm |
| Weight | 350g |
Function Implementation Indoor air assessment 1.5 Seconds sampling time enables rapid pollutant detection HVAC performance checks CO2 Measuring Range: 400 to 5000 ppm supports ventilation evaluation Laboratory safety audits HCHO Measuring Range: 0.001 to 1.999 mg/m3 identifies formaldehyde exposure Cleanroom validation PM2.5/10 Measuring Range: 0 to 999 ug/m3 quantifies particulate levels Climate-controlled storage Temperature Range: -10°C to 50°C ensures operation in varied conditions
1: Which air parameters does the LE-AQM105 monitor in real time?
The monitor measures CO?, particulate matter, formaldehyde, TVOC, temperature, humidity, and AQI.
2: Which sensing technologies are used for accurate readings?
It uses infrared for CO?, laser scattering for PM, and semiconductor sensors for TVOC.
3: Which display features make this monitor convenient?
Our unit has a large LCD screen with air quality index indicators for quick status checks.
4: Which additional functions enhance indoor monitoring?
They include built-in clock, temperature tracking, and humidity measurement.
5: Which environments benefit most from the LE-AQM105?
These are ideal for offices, classrooms, residential spaces, and other indoor areas where CO? and pollutant levels need tracking.
6: What does real-time Air Quality Monitoring mean?
Real-time monitoring refers to the continuous, live tracking and display of air quality data, allowing users to instantly view changes in pollutant levels and environmental conditions.
7: How accurate are these advanced environmental sensors?
High-quality sensors use real-time calibration and compensation algorithms to deliver accurate, reliable readings across a wide range of environmental conditions.
8: Why is it important to monitor these invisible contaminants?
These pollutants can cause serious health issues such as respiratory problems, allergies, fatigue, eye irritation, and long-term damage to the lungs and heart even if they are not seen or smelled.
9: How often should I rely on readings to manage air quality proactively?
Continuous or daily monitoring is ideal. Alerts and trend analysis help anticipate problems before they become harmful, rather than reacting after symptoms or complaints.
10: How do accurate air quality readings help in proactive management?
Accurate data allows users to detect pollutant levels early and respond before they reach harmful thresholds enabling better health protection and environmental control.
Lab Expo Air Quality Monitor units are used for real-time monitoring of indoor and ambient air conditions in controlled environments. The range covers CO₂, PM1.0/PM2.5/PM10, HCHO, TVOC, AQI, temperature, and humidity, with select models including CO, O₃, smoke, air pressure, and pollen. Systems use NDIR, laser scattering, electrochemical, and semiconductor sensors, supporting continuous air quality tracking in laboratories, industrial spaces, and facility monitoring applications.
