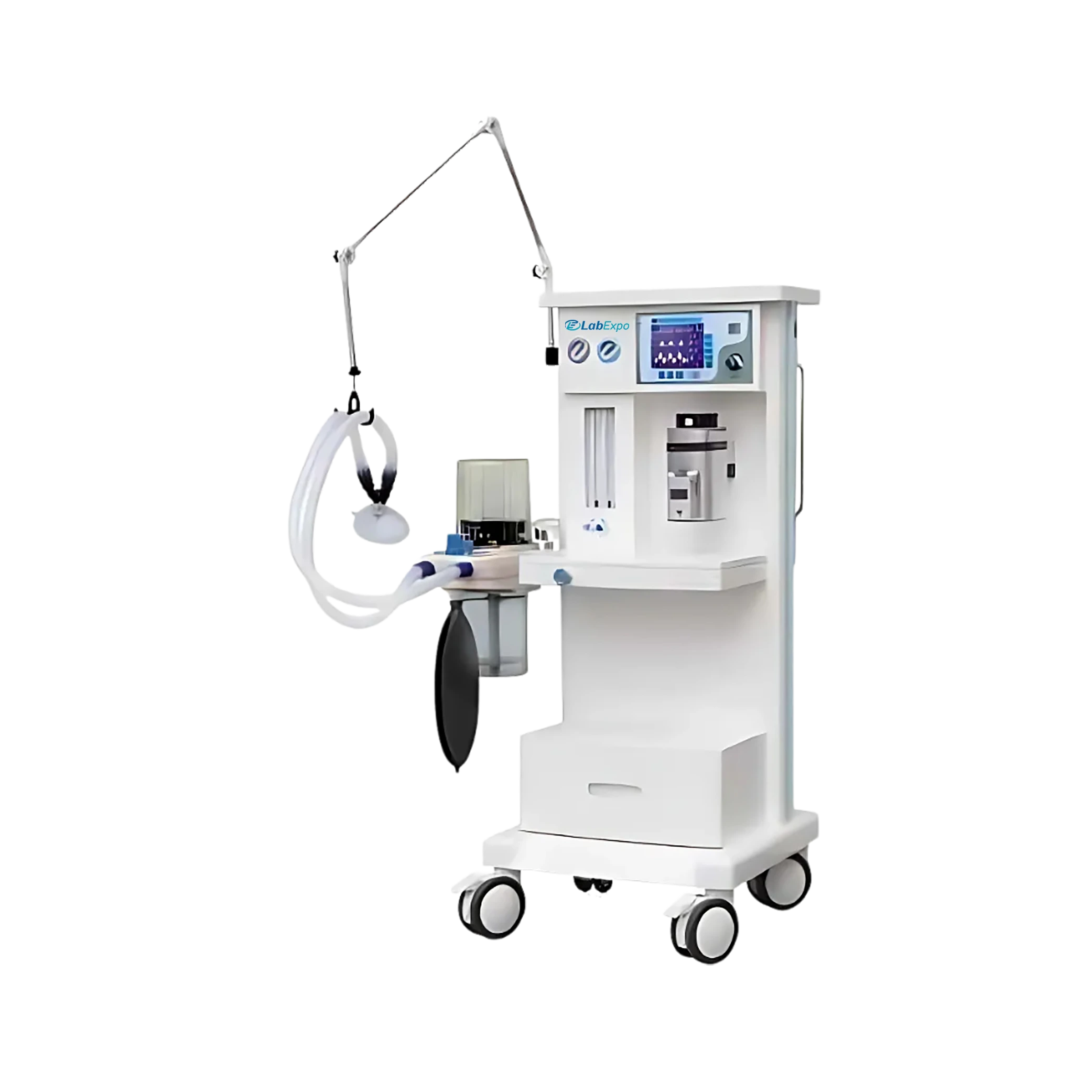

Lab Expo Anesthesia Machine LE-ANM102 offers a tidal volume range of 50 to 1500 mL with precision. It features a rapid O₂ flush of 25 to 75 L/min for emergency use and supports both IPPV and manual ventilation. Built-in mechanisms ensure consistent gas flow with minimal fluctuations. Integrated controls provide smooth operation for safe and efficient anesthesia delivery. Our Anesthesia Machine is ideal for healthcare facilities requiring reliable ventilator performance and dependable anesthesia support.
$6,374.00 $ 5312
| Ventilation Performance | Modes: IPPV, MANUAL Tidal Volume: 50 to 1500ml Respiratory Rate: 4 to 80 bpm I:E Ratio: 2:1 to 1:4 |
| Gas System | O₂ Supply: 0.27 to 0.55 MPa, Flow Meter: 0.1 to 10 L/min Rapid O₂ Flow: 25 to 75 L/min |
| Anesthetic Delivery | High-Precision Vaporizer with Auto-Compensation (Pressure, Temperature, Flow) Compatible with Halothane/ Enflurane/Isoflurane/ Sevoflurane |
| Safety Features | Low O₂ Pressure Alarm (Less Than 0.2 MPa) + Suffocation Alarm (15s No-Breath Detection) Airway Pressure Alarms (Adjustable Upper/Lower Limits) Tidal Volume Alarms (Adjustable Limits) + Sustained High-Pressure Alert |
| Monitoring and Display | 4.8-inch HD LCD |
| Respiratory Circuit | Modes: All Close, Semi-Close, Semi-Open Pressure Release: 0.5 to 7 kPa |
| Power Supply | AC 220V ±10%, 50Hz ±1Hz |
Function Implementation Clinical anesthesia delivery 50 to 1500ml tidal volume supports precise ventilator control Emergency oxygen resuscitation Rapid O₂ flow of 25 to 75 L/min enables immediate patient support Ventilator mode selection IPPV and MANUAL modes accommodate varied procedural needs Gas pressure regulation O₂ supply range of 0.27 to 0.55 MPa maintains system stability Patient safety monitoring Low O₂ pressure alarm below 0.2 MPa prevents hypoxic incidents
1: What makes the vaporizer on this model highly precise?
The high-precision vaporizer is equipped with auto-compensation technology that adjusts for temperature, pressure, and flow fluctuations, ensuring consistent anesthetic concentration throughout procedures.
2: How does the system handle ventilation in emergencies?
It is integrated with rapid O? flush delivers a high flow of oxygen instantly, supporting quick oxygenation in critical situations such as airway obstruction or apnea.
3: How do adjustable alarms enhance patient safety?
This system includes configurable alerts for airway pressure, tidal volume, and breathing absence, enabling clinicians to set patient-specific safety thresholds and receive real-time warnings.
4: Can the machine be used in different circuit configurations?
Yes, it supports all closed, semi-closed, and semi-open circuit modes, providing flexibility for various surgical procedures and patient needs.
5: What is the advantage of its compact LCD display?
The 4.8-inch HD LCD offers a clear view of vital ventilation parameters and alarms, making it easy to monitor and adjust settings even in fast-paced environments.
6: What are advanced ventilation modes in Anaesthesia Machine?
Advanced ventilation modes refer to a range of programmable respiratory support options including volume control, pressure control and pressure support. These modes ensure patient safety and adaptability across various surgical and critical care scenarios.
7: What type of safety alarms are integrated into Anaesthesia Machine?
Anaesthesia machines are equipped with alarms for high and low airway pressure, abnormal oxygen concentration and apnea detection. These alarms ensure immediate notification of any deviations from safe operating parameters.
8: What does apnea detection mean in an Anaesthesia machine?
Apnea detection identifies if the patient stops breathing for a specified period during anaesthesia. The machine alerts the clinician to intervene promptly and restore proper ventilation.
9: How does real-time monitoring benefit clinical workflow?
Real-time monitoring provides continuous updates on vital parameters such as airway pressure, gas flow, oxygen concentration and patient ventilation, allowing clinicians to make immediate and informed decisions during procedures.
10: Do these alarms function during all ventilation modes?
Absolutely, the integrated alarm systems operate continuously across all ventilation modes, providing uninterrupted monitoring and safety alerts.
Lab Expo Anesthesia Machine systems are used for controlled delivery of anesthetic gases with integrated ventilation support in clinical settings. The range includes basic to advanced models with multiple ventilation modes such as IPPV, SIMV, and manual operation, supporting adjustable tidal volumes and respiratory rates. Systems integrate vaporization control, gas flow regulation, and safety monitoring with alarms, suitable for surgical and anesthesia workflows.
