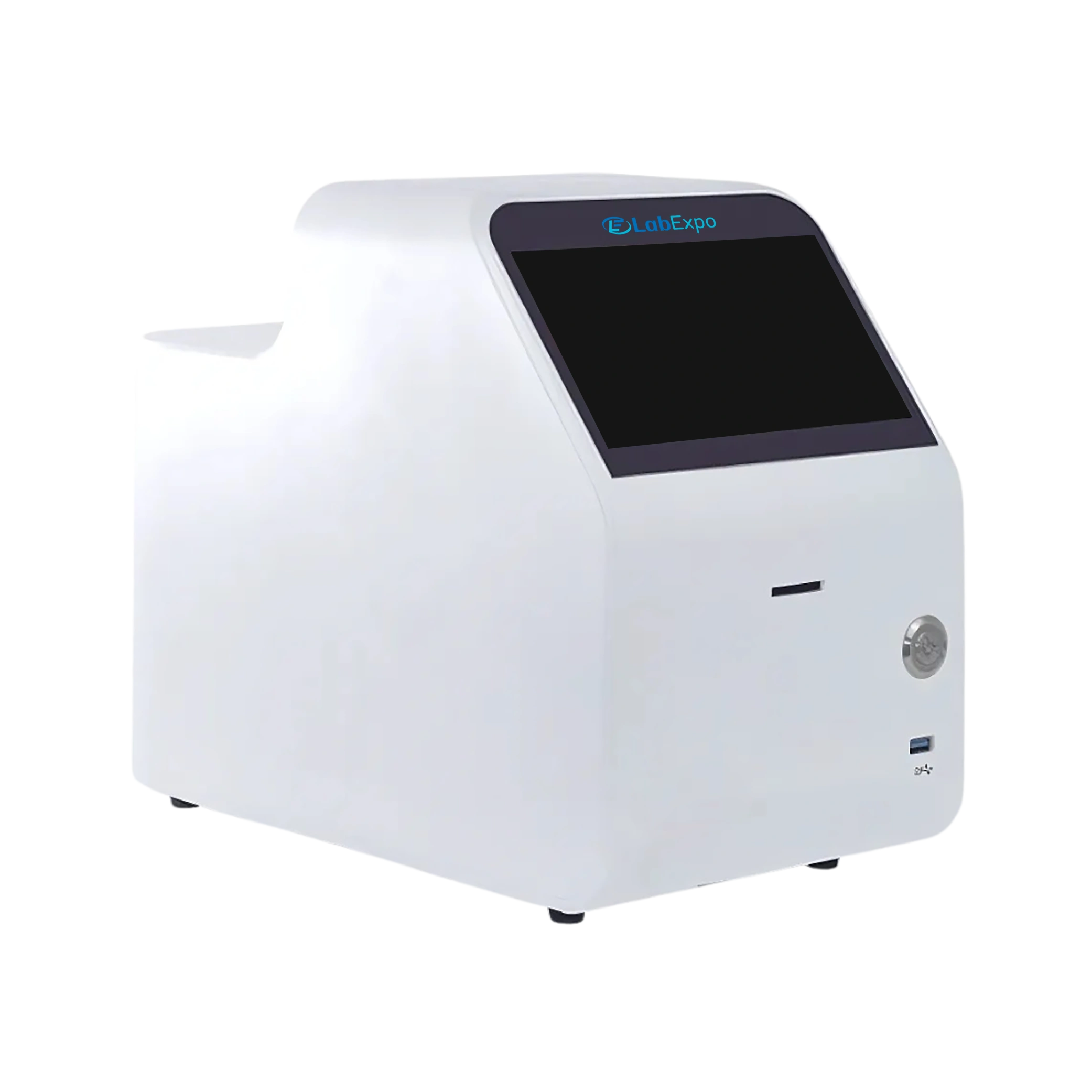

Automatic Cell Analyzer LE-ACA101 offers dual fluorescence excitation with precise analysis of cell parameters. It features integrated brightfield imaging for easy and safe test execution. Equipped to handle a concentration range of 1×10⁴ to 3×10⁷ cells/mL with accuracy. Incorporated with dual emission wavelengths of 530 nm and 605 nm for efficient multi-channel signal detection. Our Automatic Cell Analyzer is ideal for analyzing cell viability, density, and transfection efficiency in research applications.
$11,347.00 $ 9456
| Concentration Range | 1 × 104 to 3 × 107 cells/mL |
| Viability Range | 0 to 100% |
| Diameter Range | 5 to 200 μm |
| Measurement Time | < 1 second |
| Sample Volume | 10 μL or 20 μL |
| Single Sample Analysis Time | Single View- Bright field |
| Six Sample Analysis Times | Bright Field |
| Excitation Wavelength | 475nm,545nm |
| Emission Wavelength | 530nm,605nm |
| Fluorescent Light Source | Blue LED/Green LED |
| Bright Field Light Source | White LED |
| Screen | 7-inch Multi-Touch Color Display Screen |
| Camera | 6.3 Million Pixels (Color, High-Definition) |
| Storage | 128 GB Hard Drive |
| Output Format | jpg, PDF, csv |
| Interfaces | 2 USB Ports, 1 HDMI Port and 1 RJ45 Network Port |
| Applicable Consumables | Five Six-Digit Counting Slide |
| Dimension | 190 × 276 × 367mm |
| Weight | 4.4 Kg |
| Gross Weight | 7 Kg |
Function Implementation Total cell counting Automated image-based quantification across wide concentration range Viability assessment Fluorescence staining differentiating live and dead cells Cell size analysis Diameter measurement from 5 µm to 200 µm Multi-parameter detection Dual-channel fluorescence for marker-based studies Research and bioprocess workflows Rapid analysis supporting routine lab and production use
1: What kind of data output formats are supported for analysis and reporting?
Our analyzer offers multiple export formats including JPG for images, PDF for reports, and CSV for raw data, allowing flexible documentation and downstream analysis.
2: Can the analyzer support fluorescence-based transfection efficiency measurements?
Yes, our analyzer uses dual-channel fluorescence to detect and quantify transfected cells, making it suitable for evaluating transfection efficiency in gene or protein expression studies.
3: How does the analyzer handle diverse sample volumes or densities?
The analyzer accommodates small volumes and a wide cell concentration range, providing reliable analysis for both diluted and dense suspensions.
4: Is it compatible with existing lab infrastructure and networks?
They are built-in with USB ports, HDMI, and RJ45 connectivity, it integrates smoothly into most lab environments for data sharing, report printing, or remote access.
5: What makes this analyzer suitable for multi-user or shared lab environments?
Its intuitive touchscreen interface, fast processing times, and minimal maintenance needs make it ideal for high-traffic labs where multiple users require consistent performance.
6: What makes the Automatic Cell Analyzer user-friendly for routine laboratory work?
The system is designed to simplify the entire cell analysis workflow, requiring minimal user intervention and enabling quick, consistent results.
7: What types of cell parameters can the analyzer detect?
It accurately measures key parameters such as total cell count, cell viability, size distribution and morphological characteristics.
8: How does the Automatic Cell Analyzer ensure the accuracy of results?
The analyzer is equipped with built-in quality control features that continuously monitor system performance to maintain high analytical accuracy.
9: How user-friendly is the Automatic Cell Analyzer?
The analyzer is designed with an intuitive interface that simplifies navigation, making it accessible for users with varying levels of technical expertise.
10: What makes the analyzer ideal for hands-free operation?
It includes automated sample handling, reagent management, and data analysis functions that enable truly unattended operation, reducing the need for constant supervision.
Lab Expo Automatic Cell Analyzer supports streamlined cellular analysis where automated processing and precise parameter detection are required for routine workflows. The system operates with integrated optical sensing and digitally controlled analysis to deliver accurate, repeatable results with minimal manual input. Built-in quality control functions monitor performance, while intuitive controls and automated operation ensure consistent, hands-free cell assessment for daily laboratory use.
