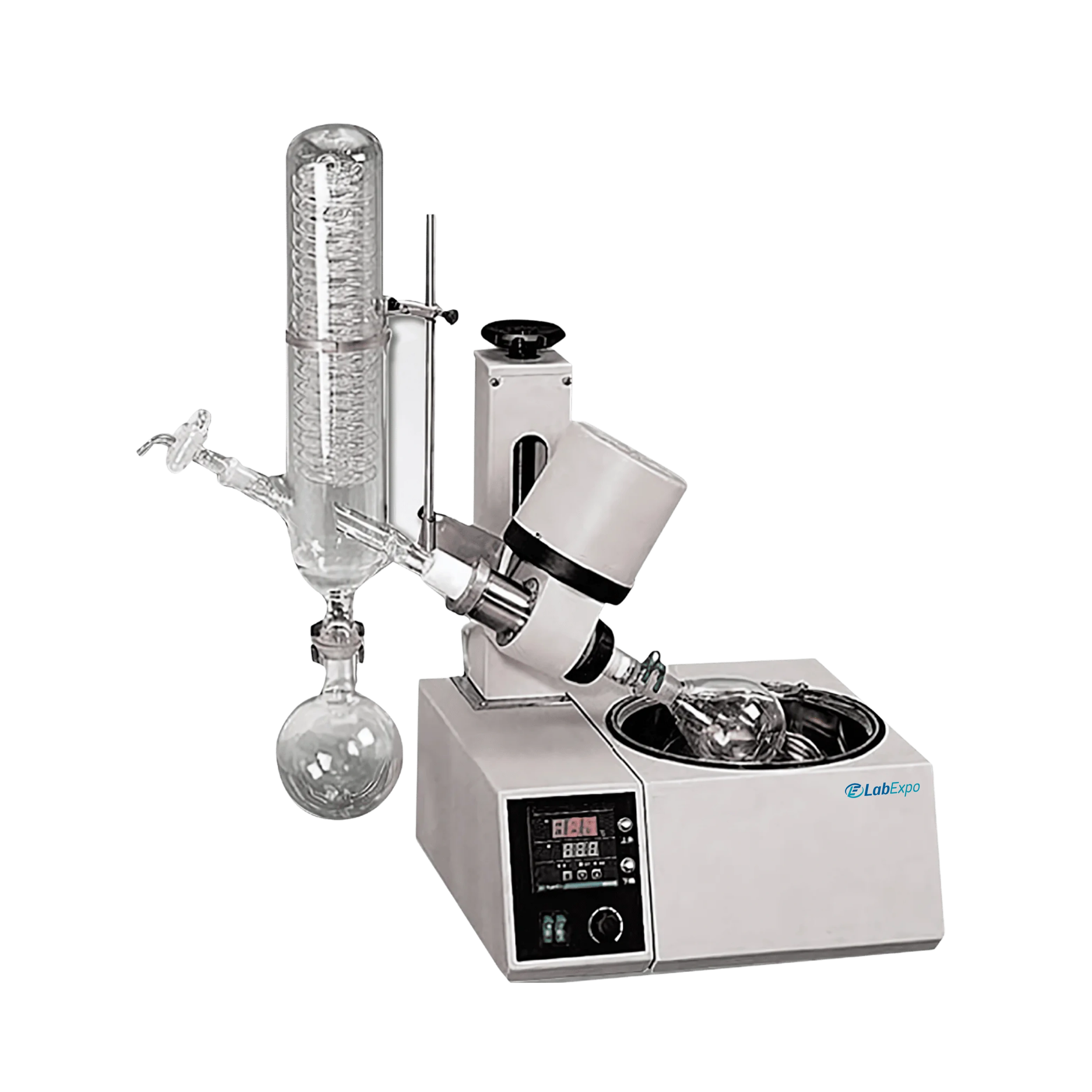

Automatic lifting rotary evaporator 55-ARE100

Automatic lifting rotary evaporator is an ergonomic design with motorized vertical lift comprising of a large LCD display and intuitive controls for easy visualization of the distillation process. Convenient motor lift adjusts heights making it user friendly. The rotation speed ranges from 0-150 rpm. Automatic water bath filling is a key feature

Evaporating flask 2 L
Lifting type Automatic lifting
Optional evaporating flask 0.25 L , 0.5 L , 1 L
Condenser type Vertical condenser
Receiving flask 1 L
Max evaporating speed ( H2O ) 1.2 L / hr.
Condensing surface 0.27 m²
Rotation speed 0 ~150 rpm
Reachable vacuum rate < 133 Pa
Bath power 1.1 kW
Heating power 1000 W
Rotation power 25 W
Static temp control range and wave RT – 99 °C ± 2 °C
Bath size capacity 5 L
Material SUS 304
Certification ISO and CE
Power 220 V / 60 Hz
Dimensions 690 x 380 x 980 mm
Weight 26 kg
  • Motorized flask lift with safety automatic release of evaporating flask in case of power failure
  • Rotation speed 0 ~ 150 rpm
  • Digital display for visualization of temperature , rotation speed and timer
  • Process samples from 50 ml to 1 L
  • Chemical resistant PTFE seals
  • Automated water bath filling

Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid.

Model No. LARE-A20
PTFE seal assembly Have
Continuous charge Have
Digital display Bath Temperature
Taper joint PTFE Sleeve Have
Low noise Have
Bath lift Have
Cold trap Optional
Water bath lid Optional
