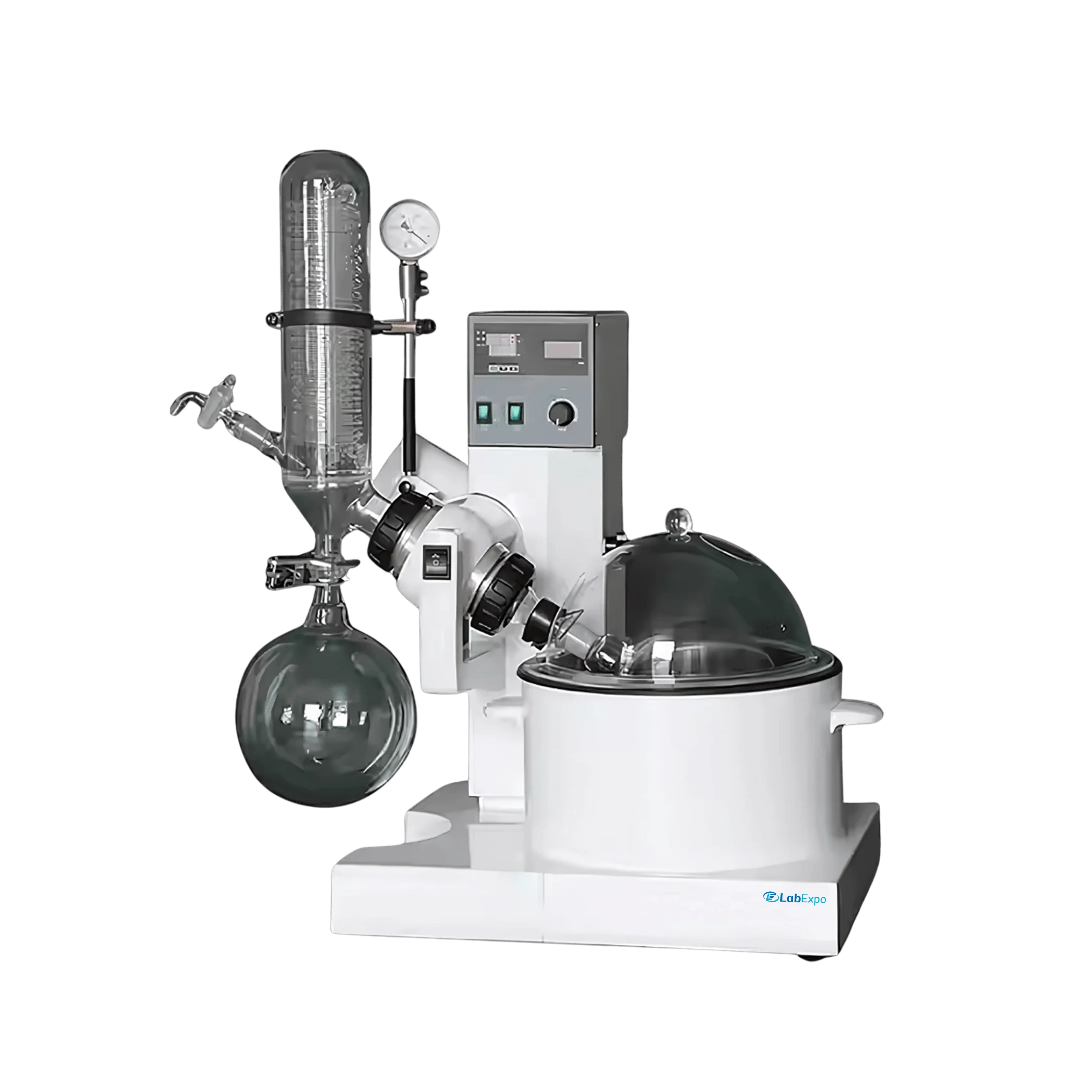

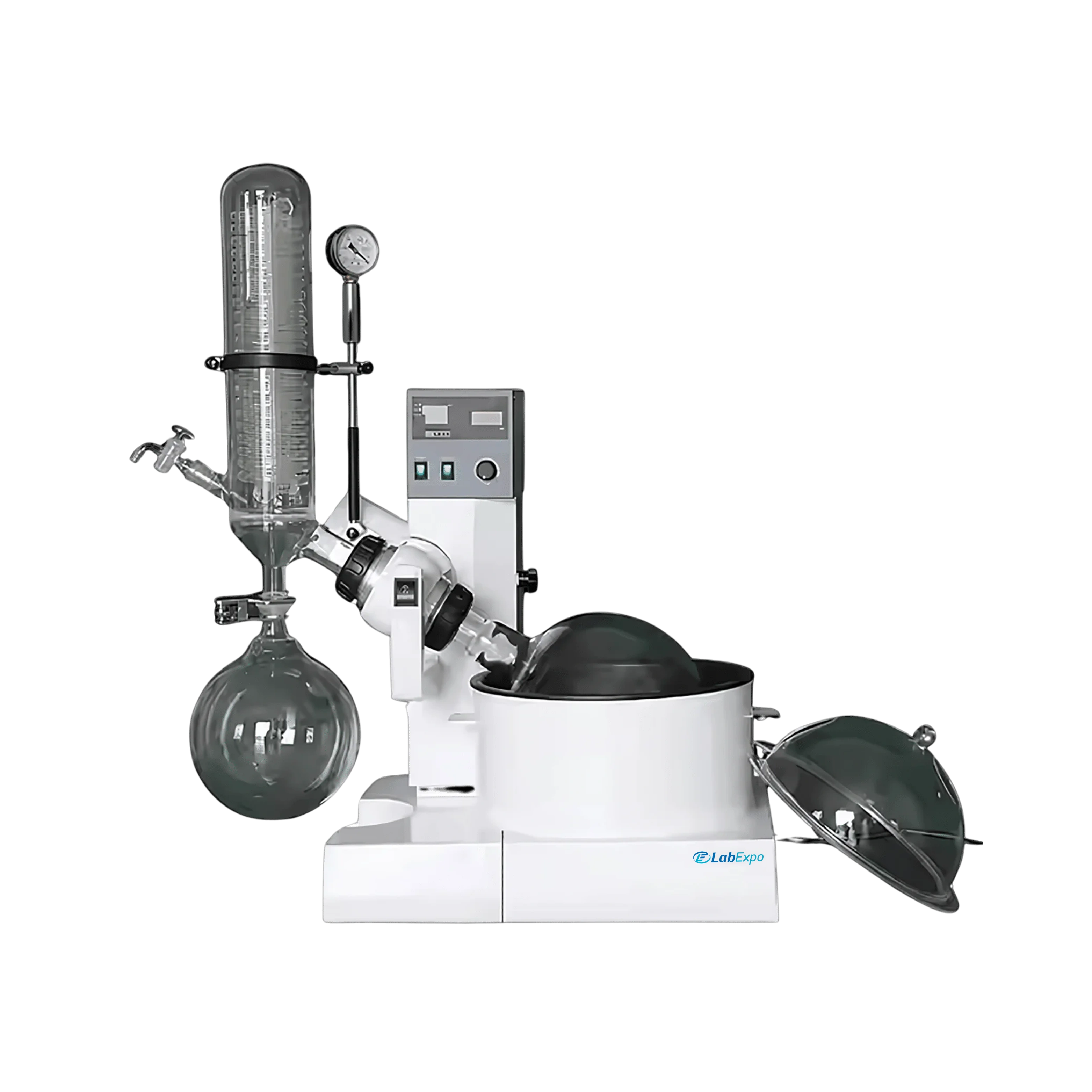

Rotary evaporator is a distinctively fabricated distillation unit equipped with optimal automatic modules with vacuum control. Vertical glass condenser with higher boiling point for effective distillation of solvents. Equipped with three different types of condensers for different operational needs. With automatic water bath filling, maximum solvent recovery rate, static temperature control range, it is perfect for complex distillation processes.
Price: $3732
| Evaporating flask | 5 L + 1 L |
| Optional evaporating flask | 1 L , 2 L , 3 L |
| Receiving flask | 3 L |
| Maximum evaporating speed ( H2O ) | 2 L / hr. |
| Condensing surface | 0.32 m² |
| Lifting type | Automatic lifting |
| Condenser type | Vertical condenser |
| Rotation speed | 0 to 110 rpm |
| Reachable vacuum rate | < 133 Pa |
| Bath power | 2.2 kW |
| Heating power | 2300 W |
| Rotation power | 40 W |
| Static temperature control range and wave | RT – 99 °C , 150 °C ± 2 °C |
| Bath size capacity | 15 L |
| Material | SUS 304 |
| Certification | ISO and CE |
| Power | 220 V / 60 Hz |
| Dimension | 740 × 440 × 960 mm |
| Weight | 66 kg |
Universal water heating bath
Vertical glassware
In built vacuum meter for quick vacuum reading
Ergonomically designed
Touch screen LCD display for smooth user control
Motorized flask lift with safety automatic release of evaporating flask in case of power failure
Chemical resistant PTFE seals
Automated water bath filling
Rotation speed : 0 ~ 110 rpm
ISO and CE certified
Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid
| Model No. | LRE-A10 |
| PTFE discharge | PTFE |
| Charging valve | Glass |
| Digital display | Bath Temperature , Rotation speed |
| PTFE seal assembly | Have |
| Continuous charge | Have |
| Taper joint PTFE Sleeve | Have |
| Continuous receiving | Have |
| Frequency conversion speed control | Have |
| Vacuum meter | Have |
| Throttle valve for vacuum | Have |
| Flange Joints | Have |
| Low noise | Have |
| Bath lift | Have |
| Bumping system | Have |
| Cold trap | Optional |
| Water bath lid | Optional |
| Ex-proof motor | Optional |
| Thermometer neck for vapor | Optional |
| Evaporating flask unload handler | Optional |
| Optional evaporating flask | 250 ml , 1 L , 3 L |
