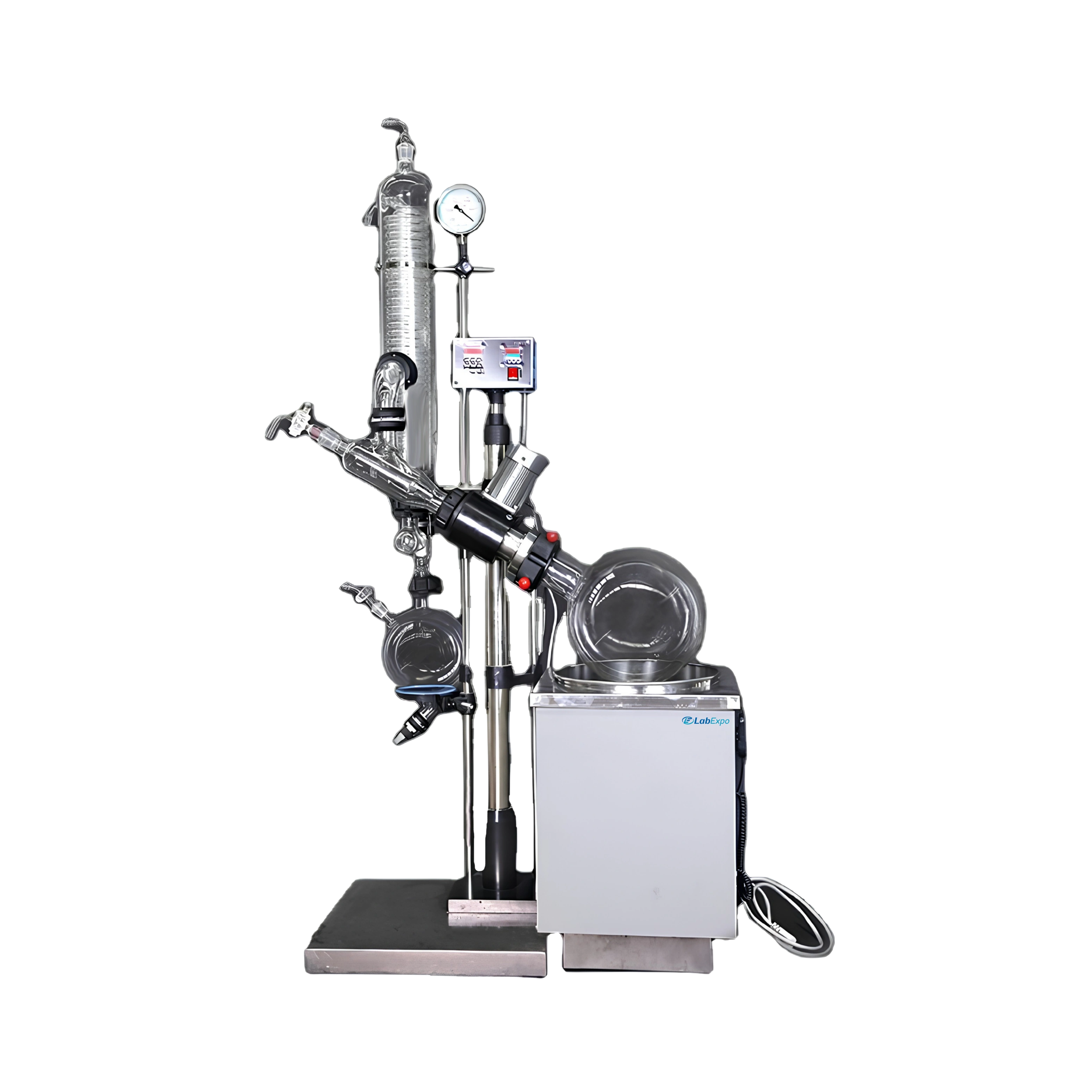

Rotary evaporator is a robust and reliable distillation unit. It is uniquely designed with vacuum discharging valve, automatic lifting and cold trap condensing dispensing system making it user friendly. It is equipped with a 5700 cm2 condensing surface. Its anti-corrosion and wearable sealing system makes it durable for long terms. With automatic water bath filling, maximum solvent recovery rate, static temperature control range, it is perfect for complex distillation processes.
$6,178.00
$5,148.00
Specifications
| Evaporating flask | 10 L / F 95 |
| Optional evaporating flask | 5 L , 10 L |
| Receiving flask | 5 L , bottom discharge |
| Maximum evaporating speed ( H2O ) | 3 L / hr. |
| Condensing surface | 0.57 m2 |
| Lifting type | Automatic lifting |
| Condenser type | Vertical condenser |
| Rotation Speed | 0 – 110 rpm |
| Reachable vacuum rate | < 133 Pa |
| Bath power | 3 kW |
| Heating power | 3000 W |
| Rotation power | 300 W |
| Static temperature control range and wave | RT – 99 °C , 150 °C ± 2 °C |
| Bath size capacity | 22 L |
| Material | SUS304 |
| Certification | ISO and CE |
| Power | 220 V / 60 Hz |
| Dimensions | 1000 x 500 x 1800 mm |
| Weight | 140 kg |
Features
Applications
Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid
Functional Configurations
| Model No. | LRE-A11 |
| Digital Display | Bath Temperature , Rotation speed |
| PTFE discharge valve | PTFE |
| Charging valve | Glass |
| Taper joint PTFE sleeve | Have |
| Vacuum gauge | Have |
| Continuous receiving | Have |
| PTFE rotary seal assembly | Have |
| Overall flange joints | Have |
| Frequency conversion speed controls | Have |
| Throttle valve for vacuum | Have |
| Water bath lid | Optional |
| Cold trap protection system | Optional |
| Evaporating flask unload handler | Optional |
| Ex-proof motor | Optional |
| Thermometer neck for vapor | Optional |
| Optional evaporating flask ( baffles available on request ) | 5 L |
Lab Expo offers Automatic Lifting Rotary Evaporator designed for various sample sizes featuring a motorized vertical lift that allows for convenient height adjustments. It is equipped with a vertical condenser and chemical-resistant PTFE seals for enhanced durability. Our evaporator provides automated water bath filling, streamlining the setup process. Its motorized flask lift includes a safety mechanism ensuring user safety. Our evaporator includes a large LCD with intuitive controls, offering clear visualization of the distillation process.
