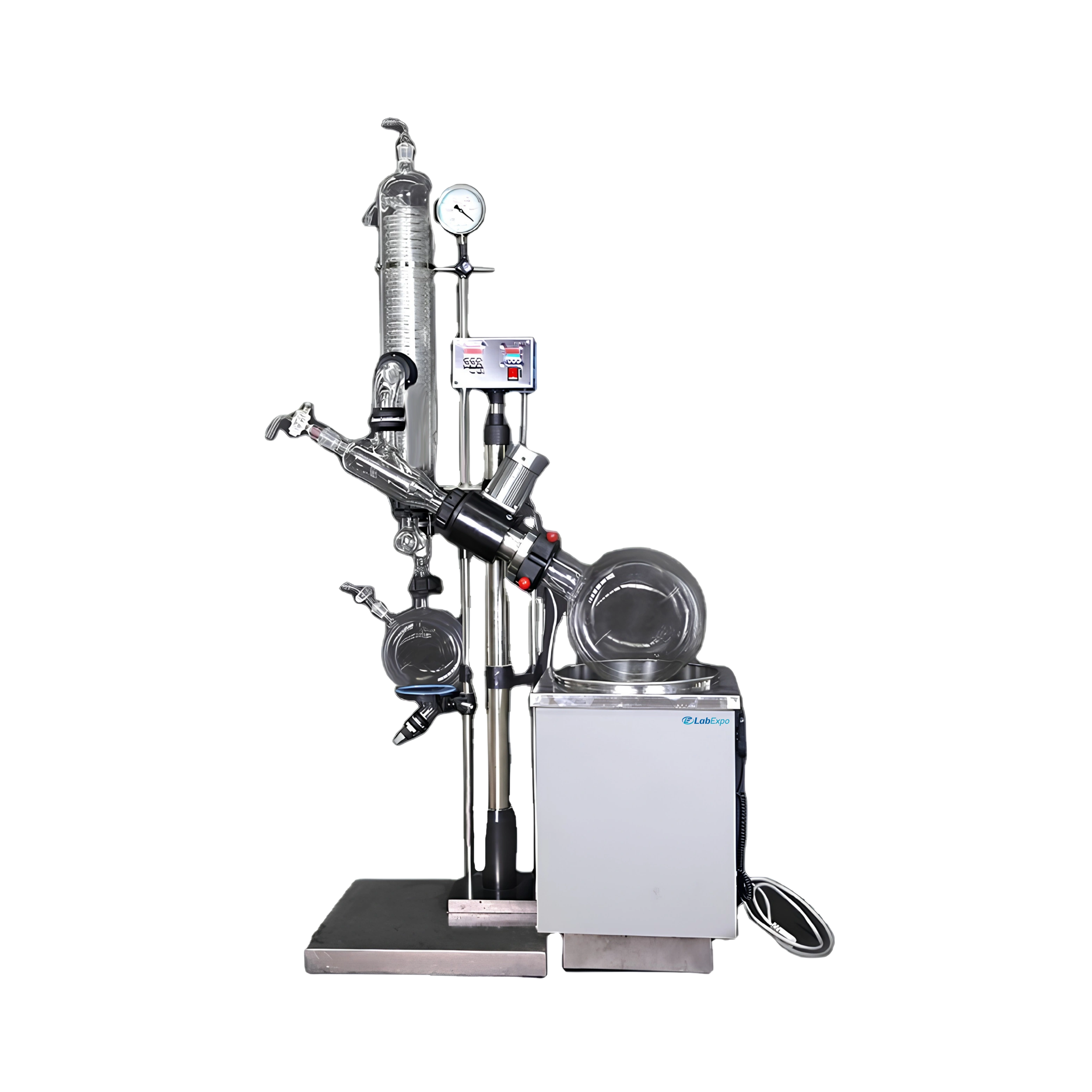

Rotary Evaporator is a robust distillation unit which has a wide range of features, combining safety with ease of use and reliability. The key feature is the one piece quick clip, providing easy removal of sticking flasks and non-sticking vapor tube. With automatic water bath filling, maximum solvent solvent recovery rate, static temperature control range, it is perfect for complex distillation processes. The touchscreen graphic LCD display with clear layout shows the rotation speed and temperature making it easy for operational use.
Price: $6168
| Evaporating flask | 20 L / F 125 |
| Optional evaporating flask | 10 L , 20 L |
| Receiving flask | 10 L + 3 L , bottom discharge |
| Maximum evaporating speed ( H2O ) | 5 L / hr. |
| Condensing surface | 1 m2 |
| Lifting type | Automatic lifting |
| Condenser type | Vertical condenser |
| Rotation speed | 0 – 110 rpm |
| Reachable vacuum rate | < 133 Pa |
| Bath power | 5 kW |
| Heating power | 5000 W |
| Rotation power | 300 W |
| Static temperature control range and wave | RT – 99 °C , 150 °C ± 2 °C |
| Bath size capacity | 40 L |
| Material | SUS 304 |
| Certification | ISO and CE |
| Power | 220 V / 60 Hz |
| Dimensions | 1100 x 700 x 2000 mm |
| Weight | 140 kg |
Chemical resistant PTFE seals
Automated water bath filling
Glass charging valve
Receiving flask equipped with bottom discharge
Motorized flask lift with safety automatic release of evaporating flask in case of power failure
Cooling surface of 10000 cm2
Bumping tube to prevent unexpected solution into receiving flask
Touch screen LCD display for smooth user control
Frequency conversion speed controller
Anti-corrosion and wearable sealing system
Safety control circuits
Easy , safe and user friendly operation
ISO and CE certified
Used for flavor extraction in food industry, solvent removal in separation and recycling chemical / educational / fuel / environmental industry , to determine sample concentration , HPLC and natural product sample preparation , drying down powders (using test tube adapter) and trapping hazardous waste liquid
| Model No. | LRE-A12 |
| Digital Display | Bath Temperature , Rotation speed |
| PTFE discharge valve | PTFE |
| Charging valve | Glass |
| Taper joint PTFE sleeve | Have |
| Vacuum gauge | Have |
| PTFE rotary seal assembly | Have |
| Bumping system | Have |
| Overall flange joints | Have |
| Frequency conversion speed controls | Have |
| Throttle valve for vacuum | Have |
| Continuous receiving | Have |
| Water bath lid | Optional |
| Cold trap protection system | Optional |
| Thermometer neck for vapor | Optional |
| Evaporating flask unload handler | Optional |
| Ex proof motor | Optional |
| Optional evaporating flask ( baffles available at request ) | 5 L , 10 L |
