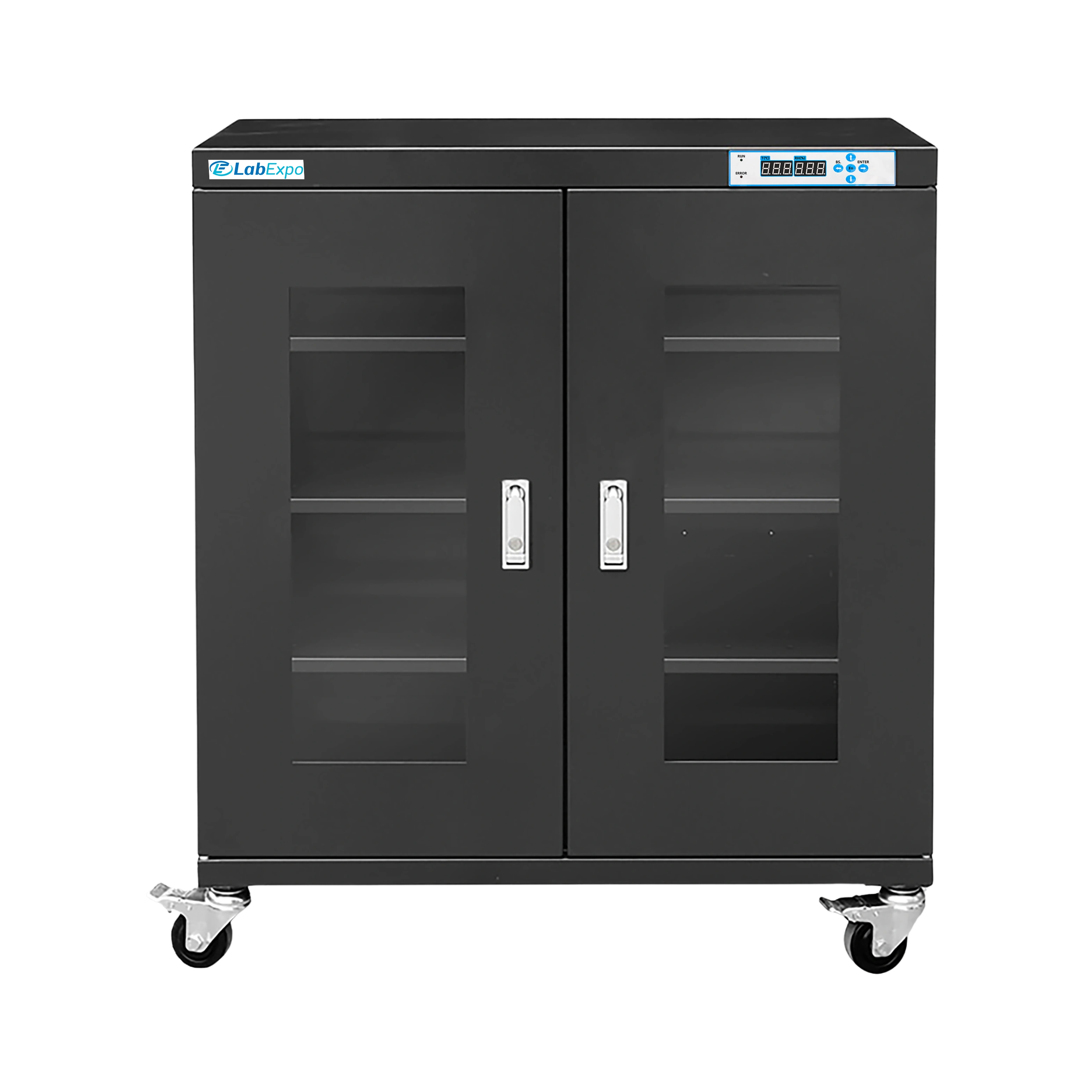

Baking Cabinet LE-BC102 maintains ultra-low humidity below 10% RH for optimal moisture control. It offers a 435L capacity with three height-adjustable shelves for flexible storage. Equipped with stable 40℃ temperature control to protect sensitive materials. Built-in insulation and sealed construction enhance thermal efficiency and durability. Our Baking Cabinet is suitable for electronics, optical lenses, pharmaceuticals, and precision components.
$4,574.00 $ 3812
| Capacity | 435L |
| Humidity | Less Than 10% RH |
| Temperature | 40℃ |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed. |
| Ambient Temperature | 25℃ |
| Relative Humidity | 60% RH |
| No of Shelves | 3 |
| Maximum Load per Shelf | 80 Kg |
| Interior Dimension | 898 × 572 × 848mm |
| Exterior Dimension | 900 × 600 × 1010mm |
| Gross Weight | 82 Kg |
Function Implementation Electronic component storage Ultra-low humidity environment preventing moisture-related defects Optical lens preservation Controlled dry chamber reducing condensation and surface damage Pharmaceutical raw material storage Stable 40℃ low-RH conditions limiting degradation risk Precision component protection Sealed cabinet minimizing oxidation and humidity exposure
1: Which storage capacity does the LE-BC102 offer?
They provides a large 435-liter capacity with three height-adjustable shelves, each capable of holding up to 80 kg.
2: Which temperature and humidity conditions are maintained?
It operates at a steady 40°C while keeping humidity below 10% RH to protect sensitive materials.
3: Which types of items can be stored in this cabinet?
Our Cabinet is ideal for electronics, optical lenses, pharmaceutical raw materials, and precision components.
4: Which structural features enhance its durability and safety?
It is built from 1.2 mm galvanized steel, equipped with reinforced ESD castors, and fitted with a high-intensity tempered glass window.
5: Which control and monitoring systems are included?
They features a digital LED controller and imported humidity & temperature sensors for precise parameter management.
6: What is the purpose of using a Baking Cabinet for storing PCBs and MSDs?
Baking Cabinets remove and prevent moisture absorption in sensitive electronic components such as PCBs and MSDs, helping to avoid microcracks, delamination, or popcorning during soldering or reflow processes.
7: How does moisture affect PCBs and MSDs?
Moisture trapped in electronic components can vaporize during high-temperature processing, causing internal damage or complete failure of the component.
8: Why is durable insulation important in a Baking or Drying Cabinet?
Durable insulation helps maintain consistent internal temperature, reduces heat loss, and improves energy efficiency, ensuring stable conditions for moisture removal or storage.
9: What kind of controls are included in these cabinets?
These cabinets typically feature intuitive control panels with push-button or touchscreen interfaces, allowing users to set and adjust temperature, humidity, and time with ease.
10: What makes it a specialized storage unit?
Its ability to regulate and maintain consistent environmental conditions such as low humidity, stable temperature, and hygienic internal surfaces sets it apart from standard storage solutions.
