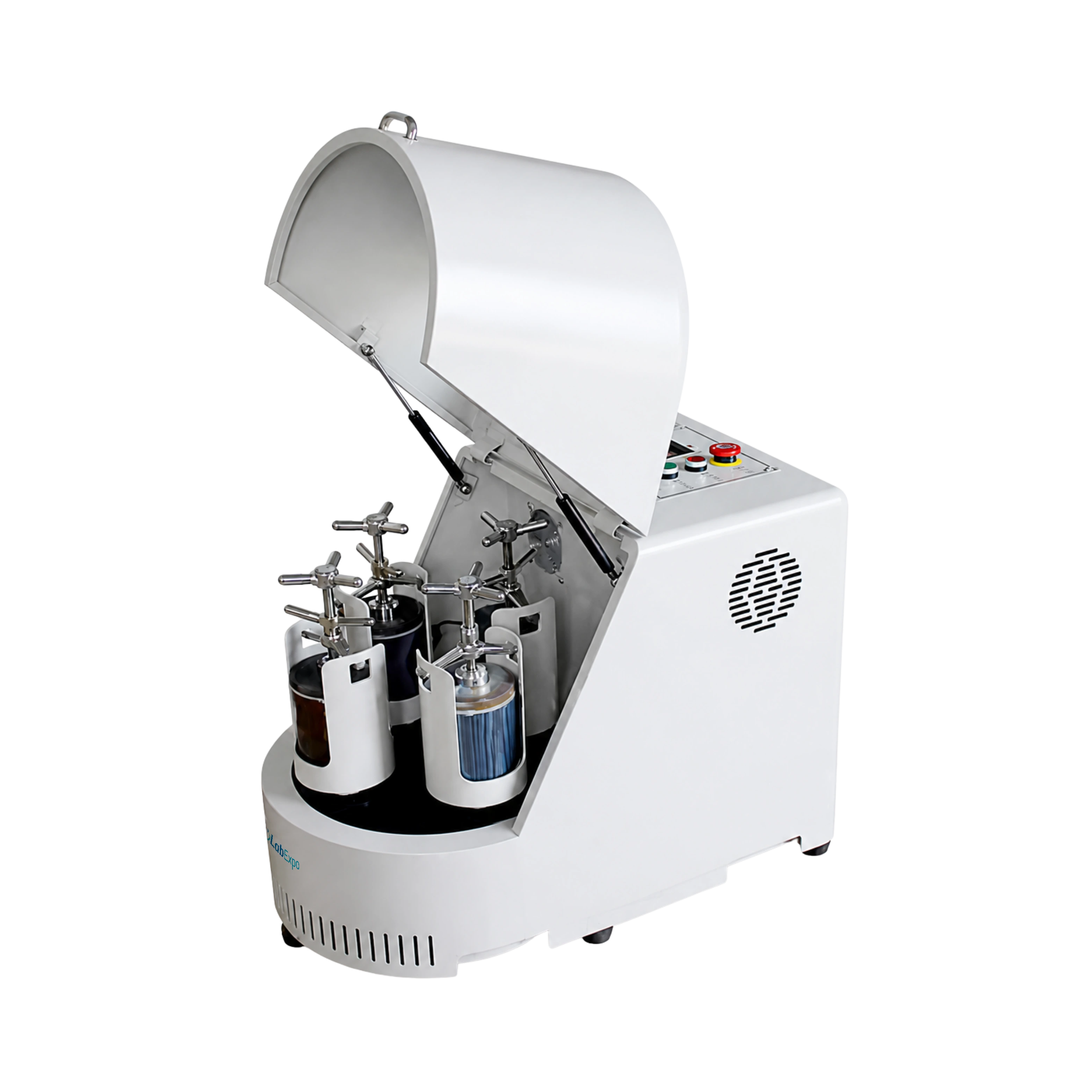

Vertical Planetary Ball Mill 50-VPBM101

Vertical Planetary Ball Mill 50-VPBM101

Lab Expo Vertical Planetary Ball Mill 50-VPBM101 for efficient wet and dry grinding, mixing, and size reduction. Supports two or four grinding jars working together with a gear or belt drive and frequency-controlled speed regulation. Features a 300 mL jar capacity, an 82–88 mm jar diameter, feed sizes of less than 10 mm for soil and crisp materials, and less than 3 mm for other materials, and an output granularity of up to 0.1 µm, based on the material and grinding process. Provides flexible processing, consistent grinding, effective mixing, and fine particle-size reduction.

$6,173.00 $ 5144

Vertical Planetary Ball Mill 50-VPBM101 - Specifications

Size of Jar 300 mL
Jar Diameter 82–88 mm
Drive Mode Gear drive or belt drive
Working Mode Two or four grinding jars working together
Maximum Load Volume No more than 2/3 of mill jar volume
Feed Size Soil & crispy materials
Output Granularity Up to 0.1 µm
Rotation Speed Ratio 1:2 (Revolution/Rotation)
Speed Regulation Frequency control
Power Supply 110 V / 220 V

Vertical Planetary Ball Mill 50-VPBM101 - Key Features

  • Two or four grinding jars can operate together for flexible laboratory processing
  • Gear drive or belt drive configuration for efficient operation
  • Frequency-controlled speed regulation for adjustable grinding conditions
  • High-efficiency grinding suitable for fine particle-size reduction
  • Suitable for both wet and dry grinding applications
  • Fine output capability of up to 0.1 µm based on material and process
  • Compact laboratory design suitable for research and sample preparation

Vertical Planetary Ball Mill 50-VPBM101 - Optional Accessories

500 ml zirconia grinding jar

Zirconia grinding beads (3,5,8mm each 3 kg)

Vertical Planetary Ball Mill 50-VPBM101 - Rotor Selection

Function

Implementation

Material ResearchFine grinding and mixing of advanced material samples
Laboratory MillingWet and dry grinding of small-batch samples
Ceramic & Powder PreparationFine particle production and powder homogenization
Geology & Mineral ProcessingGrinding and preparation of geological and mineral samples
MetallurgyFine grinding and mechanical alloying of metal powders
Electronics & Battery MaterialsMixing and size reduction of electrode and functional materials
Chemical ResearchPowder mixing, dispersion, and fine grinding of chemical materials
Pharmaceutical ResearchFine grinding and homogenization of pharmaceutical samples
Environmental ResearchPreparation and pulverization of soil and environmental samples

Vertical Planetary Ball Mill 50-VPBM101 - Catalog

Vertical Planetary Ball Mill 50-VPBM101 Catalog
