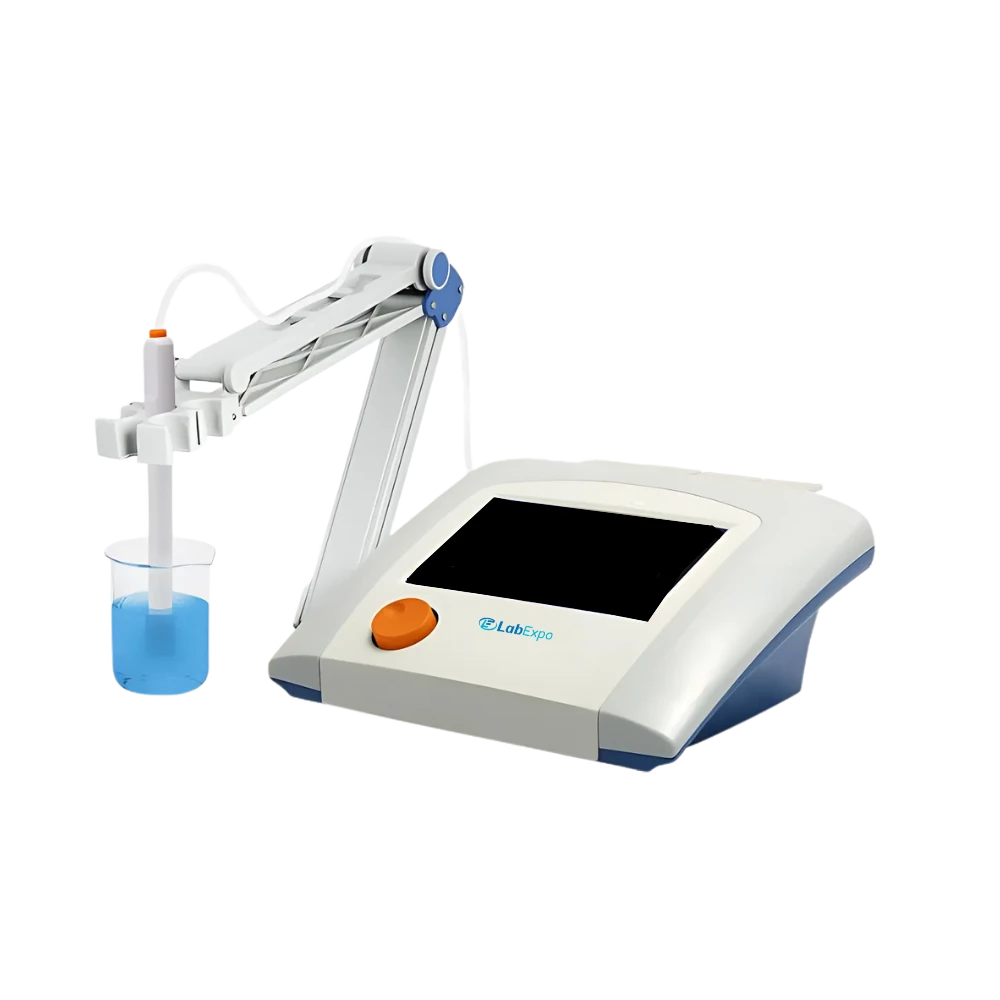

Lab Expo Benchtop Conductivity Meter LE-BCM201 offers a range of 0.000 μS/cm to 3000 mS/cm for precise measurement. It consists of -5.0°C to 130.0°C temperature compensation range for accurate and stable readings. Integrated with backlit LCD display for easy measurements visibility. Built with automatic calibration for more efficient and less prone to manual errors. Our Benchtop Conductivity Meter is ideal for water testing labs, process control in industry, and teaching laboratories.
$2,414.00 $ 2012
| Conductivity Range | 0.000 μS/cm to 3000 mS/cm |
| Conductivity Resolution | 0.001 μS/cm Minimum, Varies with Range |
| Conductivity Accuracy | ± 0.5 % FS |
| Reference Temperature | 5, 10, 15, 18, 20, 25 °C |
| Calibration Points | Up to 5 |
| Standard Recognition | 146.5 μS/cm, 1408 μS/cm, 12.85 mS/cm, 111.3 mS/cm |
| Resistivity Range | 5.00 Ω·cm to 100.0 MΩ·cm |
| Resistivity Resolution | 0.01 Ω·cm Minimum |
| Resistivity Accuracy | ± 0.5% FS |
| TDS Range | 0.000 mg/L to 1000 g/L |
| TDS Resolution | 0.001 ppm Minimum, Varies with Range |
| TDS Accuracy | ± 0.5 % FS |
| Salinity Type | NaCl % |
| Salinity Range | 0.00 % to 8.00 % |
| Salinity Resolution | 0.01 % |
| Salinity Accuracy | ± 0.1 % |
| Temperature Range | -5.0 to 130.0 °C |
| Temperature Unit | °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ± 0.1 °C |
| Reading Modes | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temperature Compensation | ATC, MTC |
| Data Storage | 1000 Groups |
| GLP Features | Yes |
| Log Management | Yes |
| Temperature Probe Input | 6 - pin Mini - DIN |
| Conductivity Probe Input | 8 - pin Mini - DIN |
| Outputs | USB 2.0 Flash Memory Device, Printer, PC, RS232 |
| Backlight | Yes |
| Auto Shutdown | 1 to 60 min, off |
| IP Rating | IP54 |
| Date and Time | Yes |
| Power Supply | AC Adapter, 100 to 240V AC input, DC 24V output |
| Dimensions | 280 × 280 × 130 mm |
| Weight | 2.5 kg |
Function Implementation Water testing labs 0.000 μS/cm to 3000 mS/cm conductivity range enables precise aqueous analysis Process control industry ± 0.5 % FS conductivity accuracy supports reliable production monitoring Teaching laboratories Up to 5 calibration points facilitates educational demonstration and practice Environmental sampling -5.0 to 130.0 °C temperature range allows field-deployable measurements Quality assurance labs 1000 Groups data storage maintains traceable regulatory records
Lab Expo Benchtop Conductivity Meter units are used for measurement of ionic conductivity in liquid samples across laboratory workflows. The range supports conductivity measurement from very low to very high conductivity levels, covering ultra-pure to highly conductive solutions, with defined resolution and accuracy across ranges. Systems include calibration recognition, temperature compensation, and stable reading functions, suitable for water analysis, chemical testing, and quality control applications.
