Lab Expo Benchtop Ion Meter 25-BIM104 delivers precise and consistent bromide ion analysis across a range of water samples. It features a calibration reminder to ensure consistent accuracy during ion testing. Equipped with a large LCD for clear and easy-to-read test results. Integrated mV resolution of 0.1 mV ensures precise and detailed measurement results. Our Benchtop Ion Meter provides dependable and accurate bromide ion concentration testing in a variety of water samples.
$2,508.00 $ 2090
| Ion Measurement Range | Br Range: 5 × 106 - 1 M, 0.4 - 79900 ppm |
| Ion Measurement Accuracy | ± 0.5 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 Kg |
Function Implementation Water quality testing 0.1 mV resolution ensures precise bromide ion measurement Clinical sample analysis ±0.5 °C temperature accuracy supports reliable results Industrial process control Stores up to 500 sets of data for batch tracking Research laboratory use 2 to 5 calibration points allow method flexibility Quality control labs Calibration due 0 to 31 days maintains compliance readiness

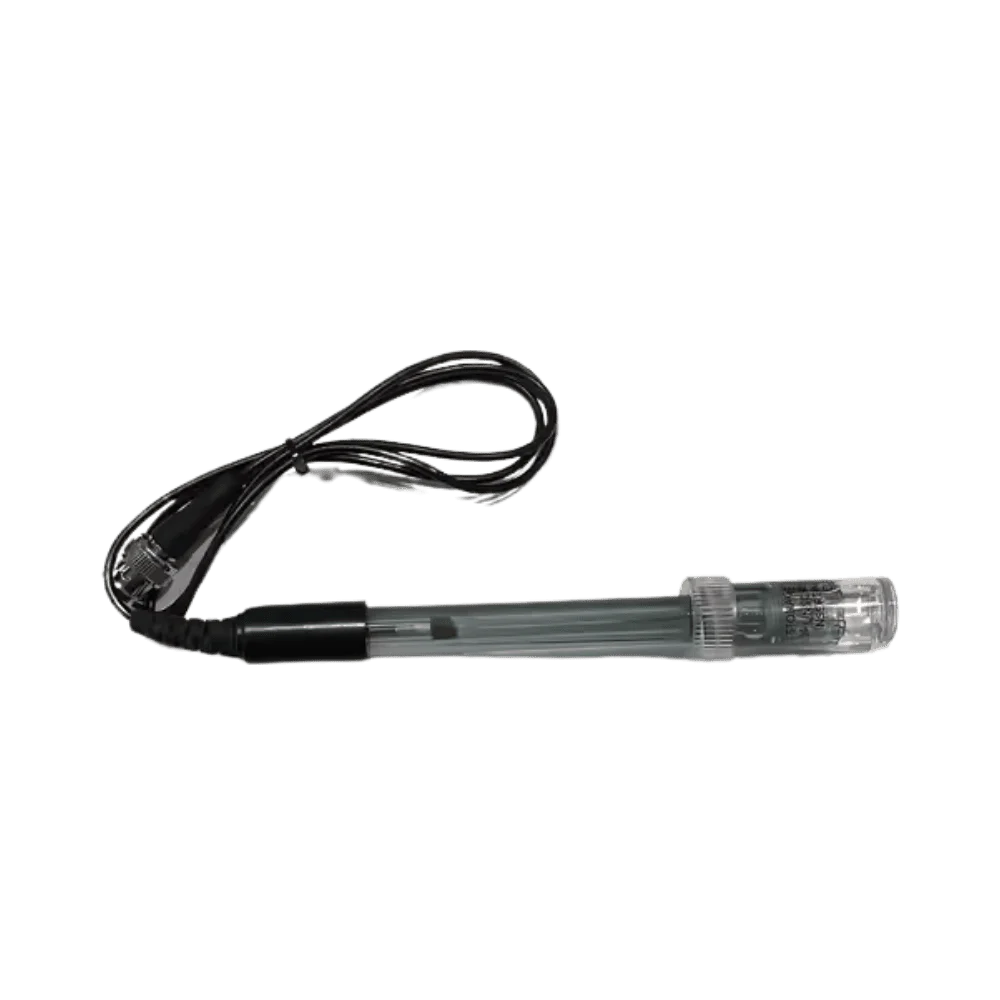

Br Bromide ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter units are used for measurement of ion concentration in liquid samples using ion selective electrodes. The range supports detection from trace levels (ppm) to high concentration ranges, with resolution down to 0.001 and accuracy up to ±0.5% F.S. Systems include multi-point calibration, temperature compensation, and digital interfaces, suitable for water analysis, chemical testing, and laboratory quality control workflows.
