Benchtop Ion Meter 25-BIM106

Lab Expo Benchtop Ion Meter 25-BIM106 is designed for precise ammonia ion analysis across a wide range of water samples. It incorporates a stability indicator to display consistent readings during ion analysis. Integrated calibration points ranging from 2 to 5 for flexible standardization. Equipped with an mV accuracy of ±0.2 mV for precise readings. Our Benchtop Ion Meter is perfect for use in drinking water, distilled water, and wastewater testing.

$2,494.00 $ 2078

Benchtop Ion Meter 25-BIM106 - Specifications

Ion Measurement Range NH3 Range: 1 × 106 - 1 M, 0.02 - 17000 ppm
Ion Measurement Accuracy ± 1 % F.S.
Resolution 0.001, 0.01, 0.1, 1
Calibration Points 2 to 5 Points
Calibration Solutions 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L
mV Range (-1999.9) to 1999.9 mV
mV Accuracy ± 0.2 mV
mV Resolution 0.1 mV
Temperature Measurement Range 0 to 105 °C, 32 to 221 °F
Temperature Accuracy ± 0.5 °C, ± 0.9 °F
Temperature Resolution 0.1°C
Temperature Compensation 0 to 100 °C, 32 to 212 °F
Compensation Mode Manual or Automatic
Data Hold Function Manual or Automatic Endpoint Detection
Reset Function Yes
Stability Condition Low or High
Calibration Due 0 to 31 Days
Power Off Manual or Automatic (10,20,30 Minutes)
Memory Stores up to 500 Sets of Data
Output USB Communication Interface
Connector BNC
Display LCD (130 × 110 mm)
Power Supply DC 5 V, Using AC Adapter, AC 220 V / 50 Hz
Dimension 210 × 188 × 60 mm
Weight 1.5 Kg

Benchtop Ion Meter 25-BIM106 - Key Features

  • Stability indicator shows consistent readings during analysis
  • Calibration reminder alerts for due dates 0 to 31 days
  • Direct readout provides mV values -1999.9 to 1999.9 mV
  • Electrode diagnosis checks sensor performance and response time
  • USB interface enables data transfer and firmware updates
  • Auto-hold function captures stable measurements manually or automatically

Benchtop Ion Meter 25-BIM106 - Applications

FunctionImplementation
Water quality labs±0.2 mV accuracy supports precise ammonia ion analysis
Drinking water testing0.02 - 17000 ppm range enables low to high concentration detection
Wastewater facilitiesUSB communication interface allows data transfer for record keeping
Research institutionsStores up to 500 sets of data for extended monitoring cycles
Clinical calibration points2 to 5 point calibration supports flexible standardization protocols

Benchtop Ion Meter 25-BIM106 - Standard Accessories

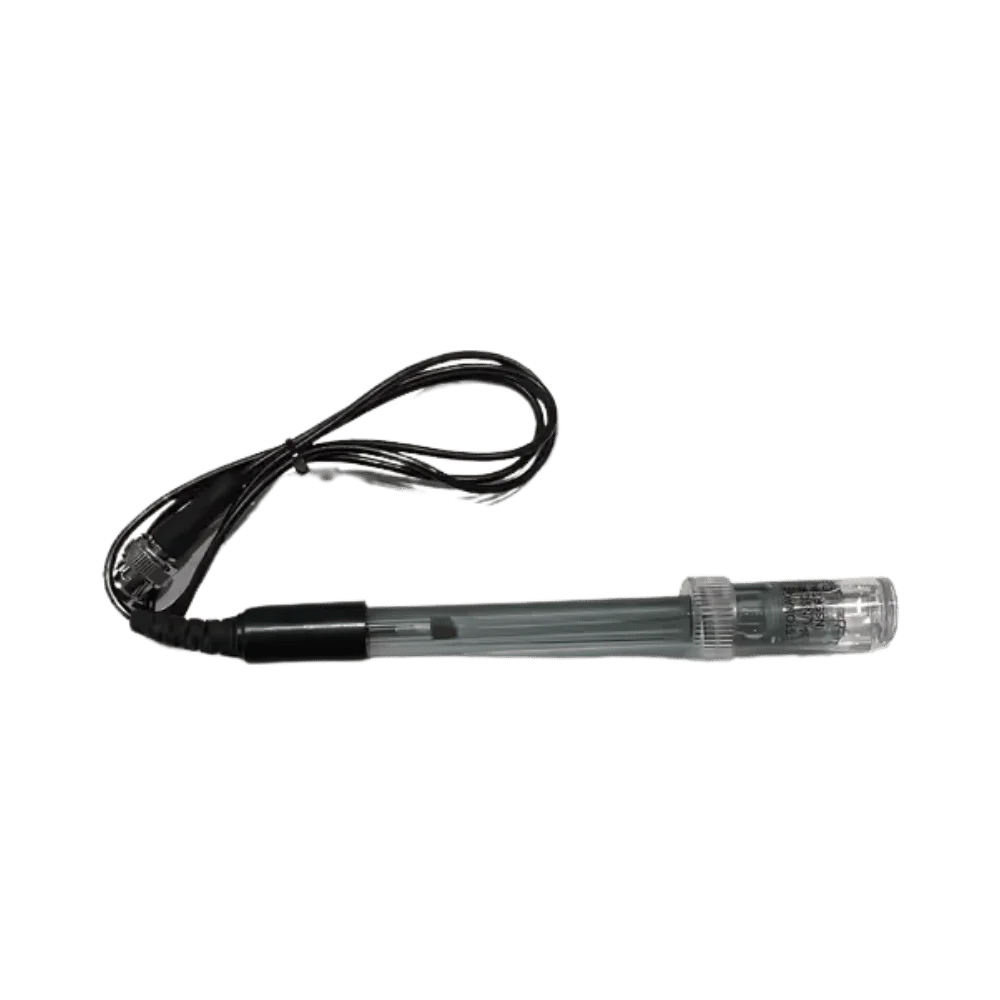

NH₃ ion selective electrode

Temperature probe

Standard solution (1000 ppm)

Ionic strength adjuster (30 ml)

Benchtop Ion Meter 25-BIM106 - Catalog

Benchtop Ion Meter 25-BIM106 Catalog

Related Benchtop Ion Meter

Lab Expo Benchtop Ion Meter units are used for measurement of ion concentration in liquid samples using ion selective electrodes. The range supports detection from trace levels (ppm) to high concentration ranges, with resolution down to 0.001 and accuracy up to ±0.5% F.S. Systems include multi-point calibration, temperature compensation, and digital interfaces, suitable for water analysis, chemical testing, and laboratory quality control workflows.
