Lab Expo Benchtop Ion Meter 25-BIM107 offers precise cyanide ion analysis for various water samples. It features a calibration reminder to maintain reliable performance. Built-in large LCD provides clear and easy-to-read measurements. Incorporated auto-hold function allows stable reading display for user convenience. Our Benchtop Ion Meter is ideal for accurate analysis of various water samples, including potable, distilled, and wastewater.
$2,479.00 $ 2066
| Ion Measurement Range | Cn Range: 5 × 106 – 0.01 M, 0.2 – 260 ppm |
| Ion Measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 Kg |
Function Implementation Water quality testing 0.2 mV accuracy supports precise cyanide ion measurement Laboratory sample analysis LCD enables clear and easy-to-read measurements Field calibration routines Calibration solutions from 0.001 to 10000 ppm allow multi-point verification Data logging applications Stores up to 500 sets of data for extended monitoring Temperature-controlled environments Temperature compensation from 0 to 10 °C ensures measurement stability

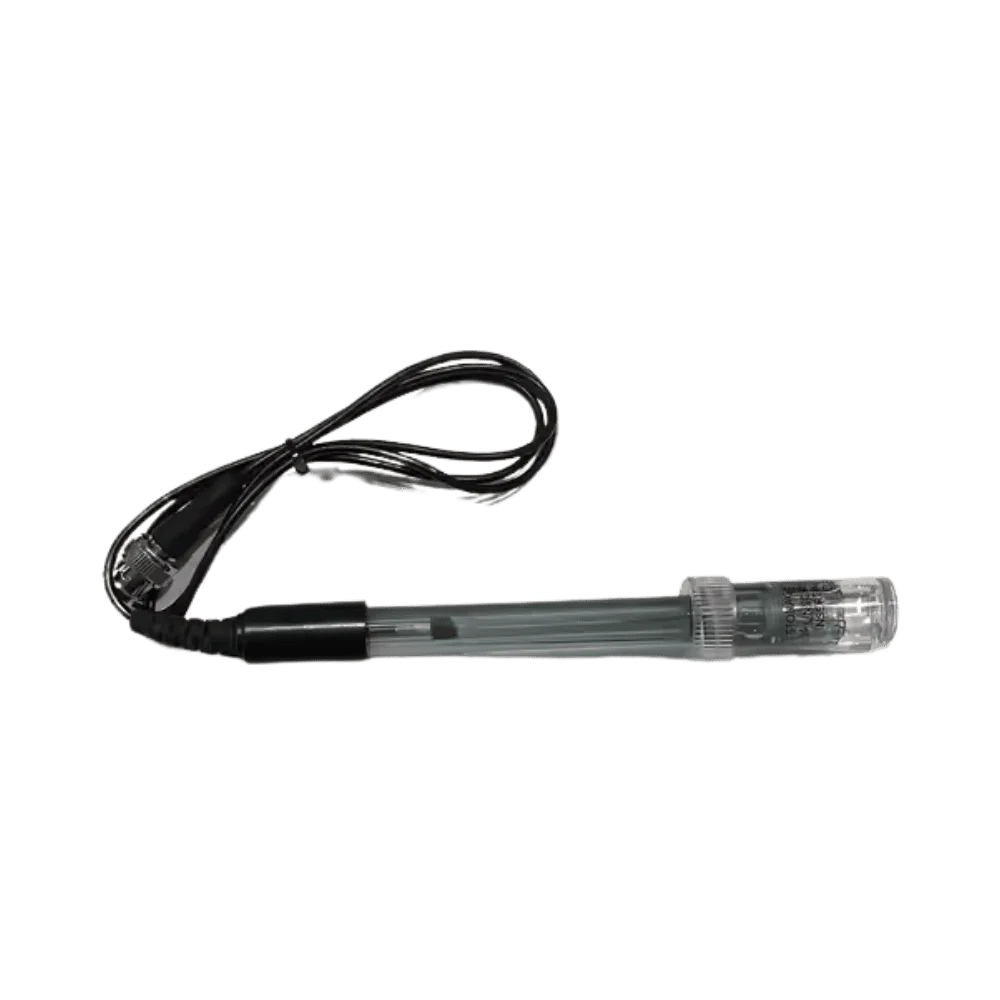

Cn ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter units are used for measurement of ion concentration in liquid samples using ion selective electrodes. The range supports detection from trace levels (ppm) to high concentration ranges, with resolution down to 0.001 and accuracy up to ±0.5% F.S. Systems include multi-point calibration, temperature compensation, and digital interfaces, suitable for water analysis, chemical testing, and laboratory quality control workflows.
