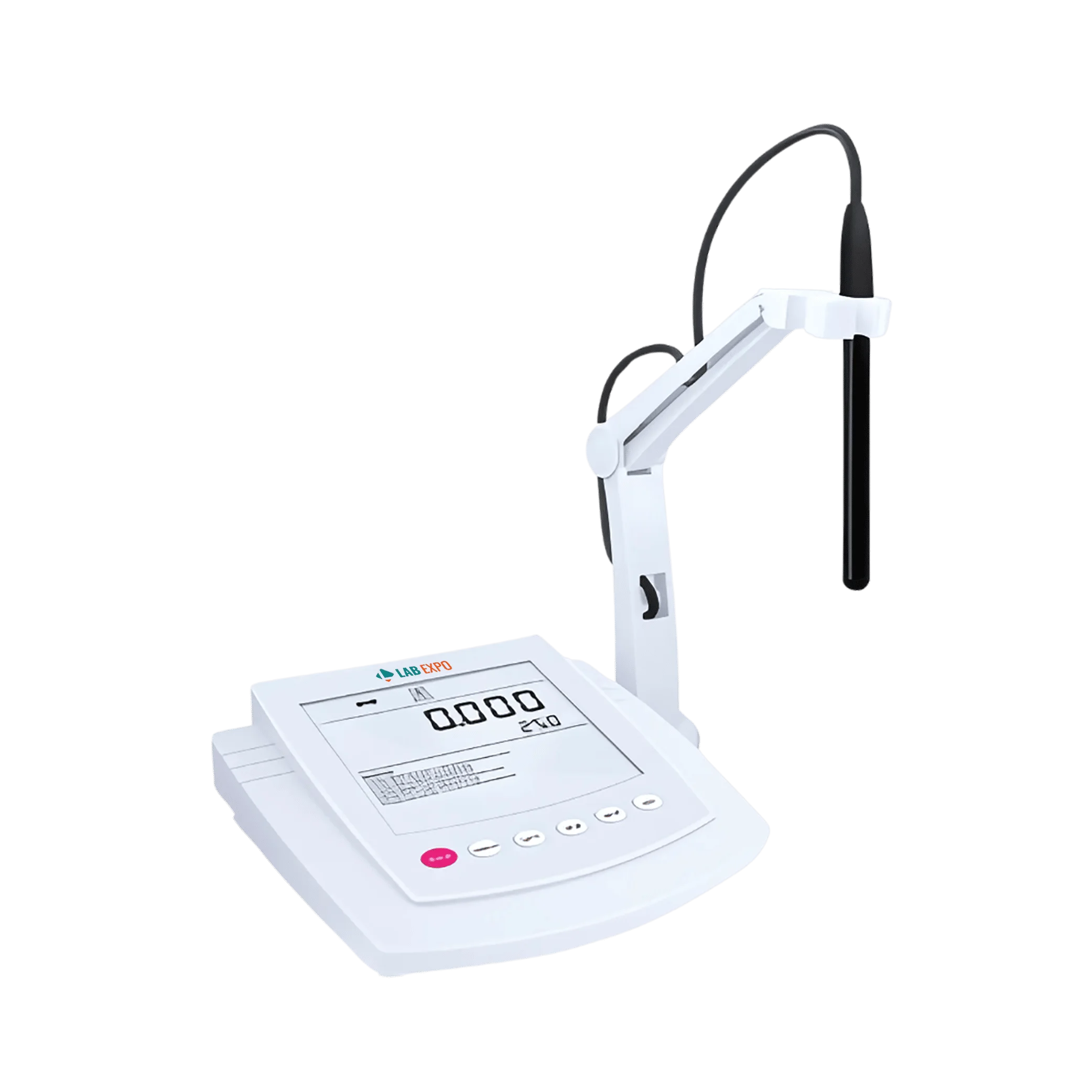

Lab Expo Benchtop Ion Meter 25-BIM110 is designed for accurate sulphide ion testing in multiple water sources. It is equipped with a stability indicator to ensure consistent and reliable testing results. Integrated auto-hold function allows convenient reading by automatically locking stable test results. Incorporated calibration system supports 2 to 5 points for enhanced accuracy and flexibility. Our Benchtop Ion Meter ensures dependable sulphide ion analysis in diverse water samples such as drinking, distilled, and wastewater.
$2,543.00 $ 2119
| Ion Measurement Range | S Range: 1×107 - 1M, 0.003-32100 ppm |
| Ion Measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 Points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| mV Range | (-1999.9) to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| Compensation Mode | Manual or Automatic |
| Data Hold Function | Manual or Automatic Endpoint Detection |
| Reset Function | Yes |
| Stability Condition | Low or High |
| Calibration Due | 0 to 31 Days |
| Power Off | Manual or Automatic (10,20,30 Minutes) |
| Memory | Stores up to 500 Sets of Data |
| Output | USB Communication Interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power Supply | DC 5 V, Using AC Adapter, AC 220 V / 50 Hz |
| Dimension | 210 × 188 × 60 mm |
| Weight | 1.5 Kg |
Function Implementation Water quality labs ±1% F.S. ion measurement accuracy ensures reliable sulphide testing Environmental monitoring Temperature compensation 0 to 100°C enables field sample analysis Clinical diagnostics USB communication interface supports data transfer to lab systems Research laboratories Stores up to 500 sets of data for extended experiment tracking Industrial process control Calibration due 0 to 31 days allows scheduled maintenance planning
S ion selective electrode
Temperature probe
Standard solution (1000 ppm)
Ionic strength adjuster (30 ml)
Lab Expo Benchtop Ion Meter units are used for measurement of ion concentration in liquid samples using ion selective electrodes. The range supports detection from trace levels (ppm) to high concentration ranges, with resolution down to 0.001 and accuracy up to ±0.5% F.S. Systems include multi-point calibration, temperature compensation, and digital interfaces, suitable for water analysis, chemical testing, and laboratory quality control workflows.
